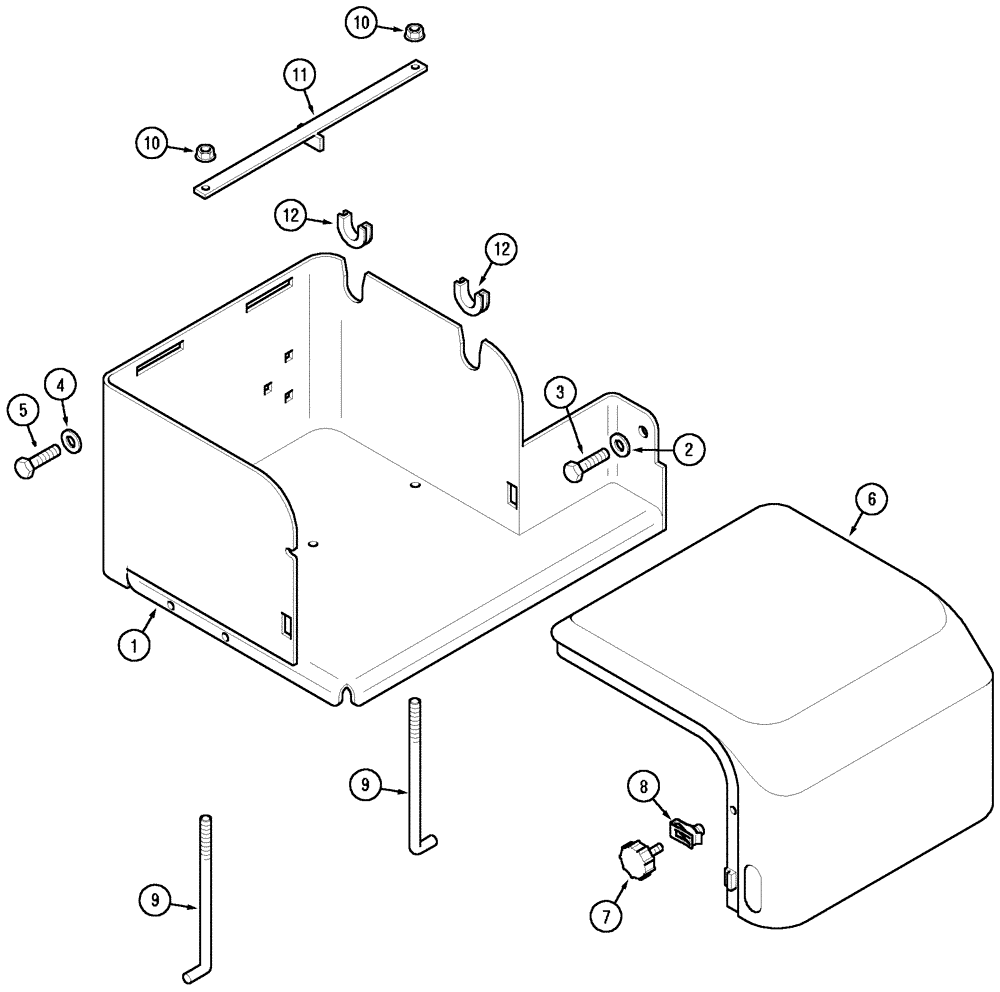

Запчасти Case IH MX80C (04-13) - BATTERY BOX (04) - ELECTRICAL SYSTEMS

1

305427A3

BATTERY BOX

chloride

1шт.

2

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

3

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

6

305435A3

COVER ASSY

Includes: 7, 8

1шт.

7

232116A1

BUTTON

1шт.

8

833-40306

SPRING NUT,M6, U

1шт.

9

284881A1

TRUSS ROD,M8 - 1.25 x 240mm

2шт.

10

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

11

284880A1

SUPPORT

1 battery

1шт.

11

305433A1

SUPPORT

2 battery

1шт.

12

307753A2

SEALING STRIP

2шт.
