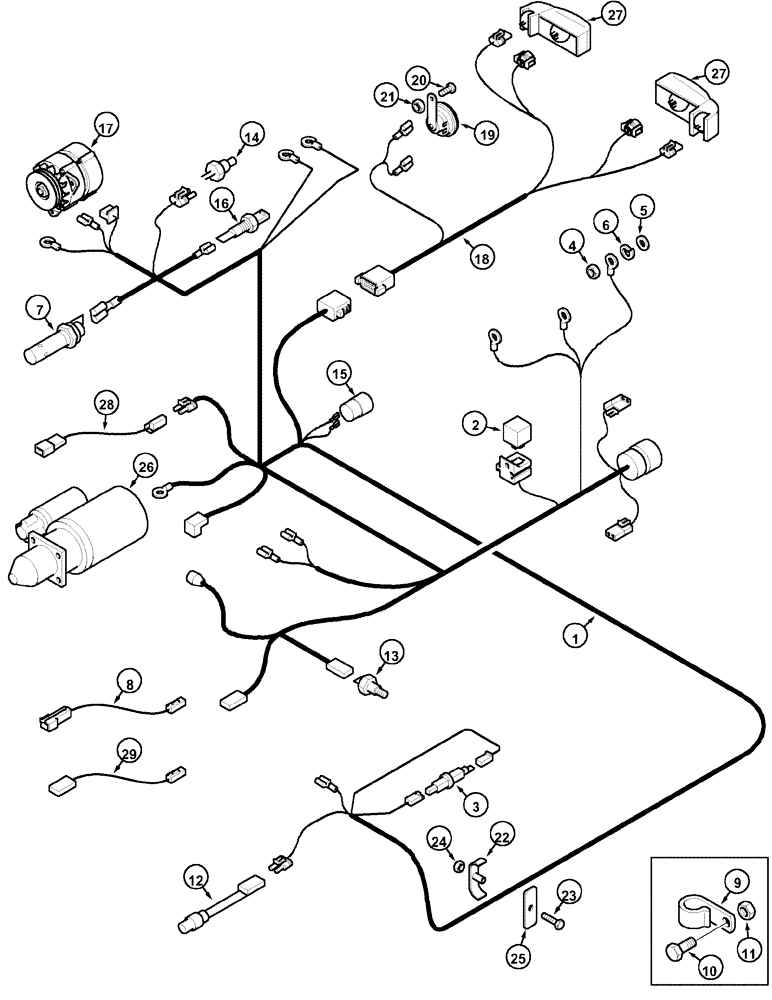

Запчасти Case IH MX80C (04-02) - HARNESS ENGINE (04) - ELECTRICAL SYSTEMS

1

298373A1

WIRE HARNESS

serial No. - JJE1052063, Includes: 2, 3

1шт.

1

347036A1

HARNESS

serial No. JJE1052064 -, Includes: 2, 3, use 292740A1

1шт.

1

393205A1

HARNESS

Includes: 2, 3, use 279492A1

1шт.

2

296541A1

RELAY

80 amp

1шт.

3

113699A1

RECTIFIER

1шт.

4

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

A39519

WASHER

1шт.

7

A77616

GLOW PLUG

thermostart

1шт.

8

303353A1

CABLE

fuel, if so equipped

1шт.

9

516-23158

CLAMP,J, 11/16" Insul, 3/8" Bolt

1/2 x 5/8

4шт.

10

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

M10 x 16; 8.8

2шт.

11

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

12

232948A1

SWITCH, A/C HIGH PRE

2шт.

13

1534526C2

SWITCH, PRESSURE

PRESSURE SWITCH engine oil

1шт.

14

243803A2

TEMPERATURE SENDER,1/2" - 14

temperature

1шт.

15

292740A1

RESTRICTION SWITCH

air filter

1шт.

15

279492A1

RESTRICTION SWITCH

air filter

1шт.

16

143417A3

SENSOR

coolant

1шт.

17

A187623

ALTERNATOR

14V, 95A, see Figure 4-18

1шт.

17

A187623GV

ALTERNATOR

Value, 14V, 95A

1шт.

18

298374A1

HARNESS

hood

1шт.

19

237582A1

HORN

12V

1шт.

20

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

22

275874A1

CLAMP

1шт.

23

844-6035

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

M6 x 35

1шт.

24

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

25

279918A1

LARGE PLATE

PLATE, LARGE

1шт.

26

388187A2

STARTING MOTOR

Iskra 3.0 Kw, see Figure 4-17

1шт.

234987A1R

REMAN-STARTER

REMANUFACTURED STARTER MOTOR - for N.A. Only

1шт.

234987A1C

REMAN-STARTER

Return Number, STARTER MOTOR - for N.A. Only

1шт.

6106496M91

STARTING MOTOR

STARTING MOTOR, 12v 3.0 kw

1шт.

6106496M91R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR - for N.A. Only

1шт.

6106496M91C

CORE-STARTER

Return Number, STARTING MOTOR - for N.A. Only

1шт.

27

REF

INSTRUCTION

LAMP, head, see Figures 4-61, 63

2шт.

28

299360A1

HARNESS

ether start

1шт.

29

379533A1

HARNESS

adaptor, air conditioning

1шт.
