Запчасти Case IH MX80C (04-01) - HARNESS TRANSMISSION (04) - ELECTRICAL SYSTEMS

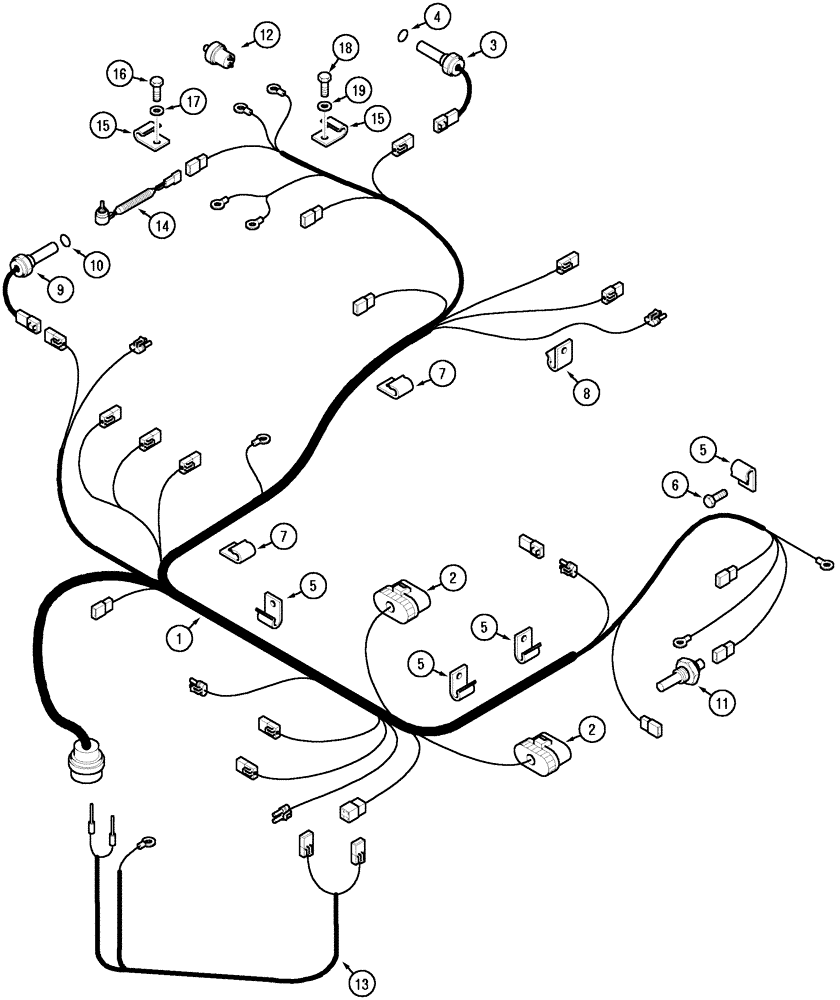

Схема запчастей Case IH MX80C - (04-01) - HARNESS TRANSMISSION (04) - ELECTRICAL SYSTEMS
4
5
2
15
8
5
14
16
5
18
17
7
12
11
6
15
2
1
7
10
19
5
9
13
3

Артикул

Название

Примечание

Количество

1

280466A2

HARNESS

Europe only, Includes: 2, not illustrated

1шт.

1

328289A1

HARNESS

Europe only, used with, oil temperature, sender, serial No. - JJE1054818, Includes: 2

1шт.

1

392102A1

HARNESS

serial No. JJE1054819 -, Includes: 2

1шт.

2

187308A1

CAP

2шт.

3

198957A1

SENSOR

axle, speed, serial No. - JJE1054818

1шт.

3

392215A1

SENSOR

axle, speed, serial No. JJE1054819 -

1шт.

4

637-63173

O-RING,2.2mm Thk x 17.3mm ID, Cl 6, 75 Duro

1шт.

5

516-23158

CLAMP,J, 11/16" Insul, 3/8" Bolt

1/2 x 5/8

4шт.

864-10016

HEX SOC SCREW,M10 x 16mm, Cl 8.8

Use with 5, Not Illustrated

4шт.

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Use with 5; Not Illustrated

4шт.

6

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

7

516-23190

CLAMP,J, 3/4", Insul, 3/8" Bolt

2шт.

8

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

(7.9 mm)

1шт.

9

220119A1

SENSOR

P.T.O., speed

1шт.

10

637-63173

O-RING,2.2mm Thk x 17.3mm ID, Cl 6, 75 Duro

1шт.

11

REF

INSTRUCTION

SENDER, oil temperature, see Figure 8-21

1шт.

12

308497A1

SENDER UNIT

pressure, 2 pin

1шт.

13

307399A1

HARNESS

adaptor, fourth remote

1шт.

13

246905A2

HARNESS

adaptor, fourth remote, use with 300542A3,300541A3, not illustrated

1шт.

14

122756A3

POTENTIOMETER,1000 Ohm, 8V

1K, Hitch, Position, Serial Range: -JJE1016129

1шт.

14

393795A1

POTENTIOMETER,1000 Ohm, 8V

Hitch, Position, Start Serial: JJE1016130

1шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

16

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 26
