Запчасти Case IH MX80C (09-63) - HITCH LOWER LIFT LINKS, MX80C, MX90C, CATEGORY II (09) - CHASSIS

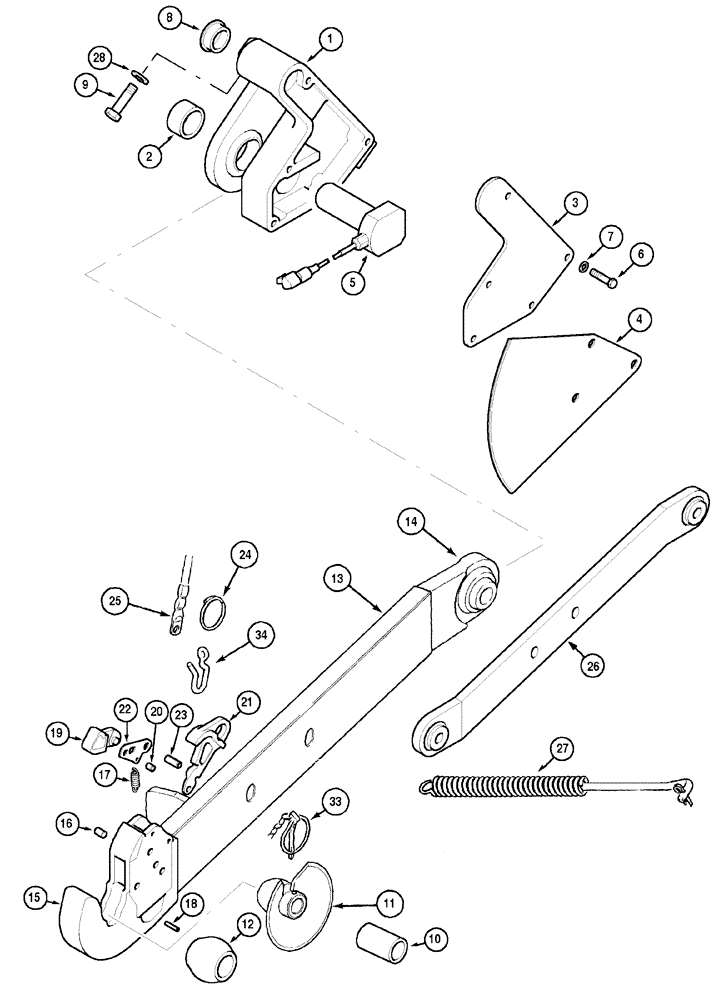

Схема запчастей Case IH MX80C - (09-63) - HITCH LOWER LIFT LINKS, MX80C, MX90C, CATEGORY II (09) - CHASSIS
28
14
27
33
23
18
7
34
12
25
3
24
19
9
4
8
16
20
5
11
22
21
1
6
17
2
26
15
10
13

Артикул

Название

Примечание

Количество

1

220972A2

SUPPORT ASSY.

right, Includes: 2

1шт.

1

220971A2

SUPPORT ASSY.

left, Includes: 2

1шт.

2

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

3

220973A1

SUPPORT

2шт.

4

248963A1

SPRING

2шт.

5

346350A1

SET OF PARTS

with draft control, Includes: 2

2шт.

5

192718A1

HEADED PIN,37.01mm OD x 121.35mm L

without draft control

2шт.

6

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

10шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

10шт.

8

1960765C2

GROMMET

use with 1964916C3

2шт.

8

221486A1

GROMMET

use with 192718A1

2шт.

9

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

8шт.

10

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

Europe only, items: 11 - 21, 24, 25

2шт.

11

381642A1

BALL,Cat 3 Flanged, 37.50mm Dia, Low Sulfur, W/ Chain Assy

with flange, Catagory III

1шт.

12

359189A1

BALL JOINT

1шт.

293293A2

LOWER LINK

left, consists of: 13 - 21

1шт.

293292A2

LOWER LINK

right, consists of: 13 - 21, illustrated

1шт.

13

NSS

NOT SOLD SEPARAT

LINK

1шт.

14

NSS

NOT SOLD SEPARAT

BALL

1шт.

15

NSS

NOT SOLD SEPARAT

CLAW

1шт.

16

359049A1

PIN

5 x 15 mm

1шт.

17

357749A1

SPRING,16.5mm OD x 36mm L

1шт.

18

838-3636

PIN,M6 x 36, Coiled

6 x 26 mm

1шт.

370031A1

LATCH

CAT II, consists of: 19 - 22

1шт.

19

359044A1

DRAW HOOK

CAT II

1шт.

20

359042A1

PIN

8.3 x 10 mm

1шт.

21

357748A1

LATCH

1шт.

22

357751A1

LEVER

1шт.

23

370225A1

SET

pins

1шт.

24

1534796C1

LOCK WASHER

4шт.

25

1534794C1

ROPE

1800 mm

1шт.

25

1534793C1

ROPE

1200 mm

1шт.

26

249042A1

LOWER LINK

N.A. only

2шт.

27

1252040C1

SPRING

1шт.

28

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

8шт.

33

NSS

NOT SOLD SEPARAT

PIN linch

1шт.

34

255784A1

CLIP,ELECTRICAL

2шт.

Выбрано товаров: 37
