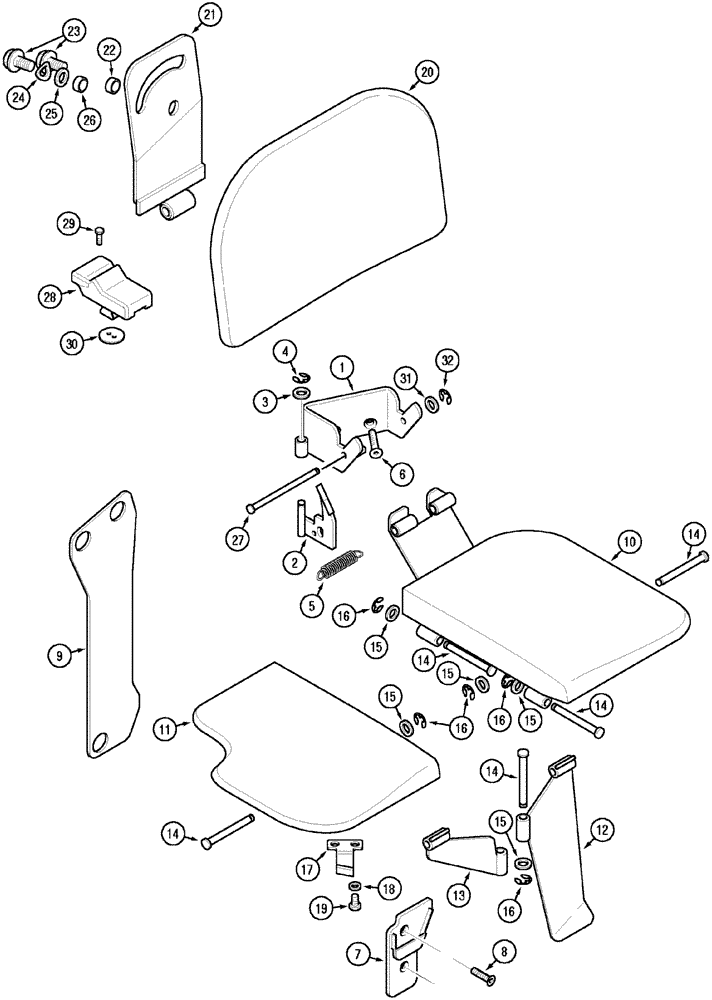

Запчасти Case IH MX80C (09-55) - SEAT CO-WORKER, EUROPE ONLY (09) - CHASSIS

Europe Only

1шт.

304057A1

SEAT ASSY.

consists of: 1 - 32

1шт.

313261A1

PACKAGE

consists of: 11, 17, 18, 28 - 30

1шт.

276331A1

SEAT SUPPORT

Includes: 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET upper

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET retainer

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

4

800-438

CIRCLIP,M8

1шт.

5

275661A1

SPRING

1шт.

6

97-010296

SCREW

M8 x 25; 10.9

2шт.

7

224051A4

SEAT SUPPORT

1шт.

8

906036R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 40mm, Cl 10.9

2шт.

9

291387A1

PROTECTOR

1шт.

304057A1

SEAT ASSY.

consists of: 10 - 19

1шт.

10

224042A4

CUSHION ASSY.

1шт.

11

224043A5

CUSHION ASSY.

1шт.

12

224107A3

SEAT SUPPORT

1шт.

13

224106A3

SEAT SUPPORT

1шт.

14

225043A1

PIN

5шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

16

800-438

CIRCLIP,M8

5шт.

17

303137A1

SEAT SUPPORT

1шт.

18

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

19

614-5008

BOLT,Hex, M5 x 0.8 x 8mm, Cl 8.8, Full Thd

2шт.

244525A3

BACKREST

consists of: 20 - 26

1шт.

20

224376A3

SEAT SUPPORT

1шт.

21

224377A3

SEAT SUPPORT

1шт.

22

242820A1

SPACER

9 x 12 x 5 mm

1шт.

23

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

24

300487A1

WAVE WASHER

10.5 x 21 x 1

1шт.

25

300486A1

WASHER

10.5 x 23 x 2

1шт.

26

300485A1

SPACER

1шт.

27

225041A2

PIN

1шт.

28

303138A1

FASTENER

1шт.

29

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

2шт.

30

322626A1

LARGE PLATE

PLATE, LARGE

1шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

32

800-438

CIRCLIP,M8

1шт.
