Запчасти Case IH MX80C (09-52) - SWIVEL SEAT CLOTH, EUROPE ONLY, DELUXE, WITH AIR SUSPENSION (09) - CHASSIS

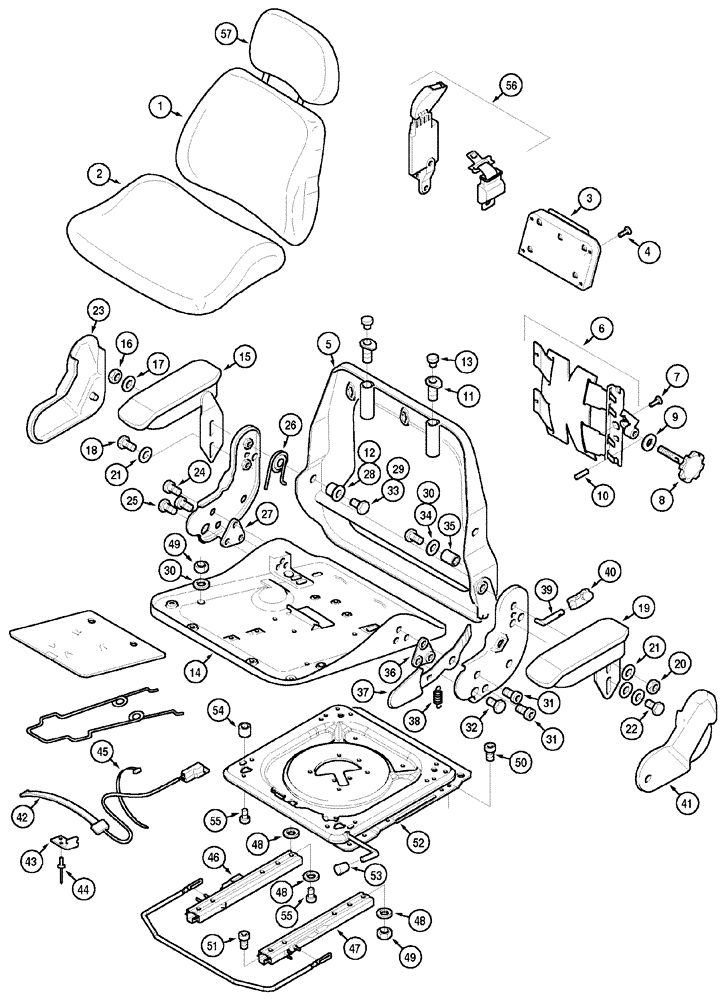

Схема запчастей Case IH MX80C - (09-52) - SWIVEL SEAT CLOTH, EUROPE ONLY, DELUXE, WITH AIR SUSPENSION (09) - CHASSIS
6
39
17
25
48
26
57
1
45
11
4
36
47
49
55
12
32
27
30
53
18
7
56
44
33
9
21
16
23
48
31
43
55
41
5
28
13
2
22
14
20
8
48
34
35
37
21
42
19
52
46
10
24
50
40
38
15
49
29
54
51
31
3
30

Артикул

Название

Примечание

Количество

362072A1

SEAT ASSY.

without belt, consists of: 1 - 55

1шт.

362073A1

SEAT ASSY.

with belt, N.A. only, consists of: 1 - 56

1шт.

1

254748A1

BACKREST

grey

1шт.

2

338072A1

CUSHION, SEAT

grey

1шт.

254680A1

CASE

manual compartment, consists of: 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

BOX

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW

4шт.

254750A1

BACKREST COVER

Consists of 5 - 13

1шт.

5

NSS

NOT SOLD SEPARAT

FRAME

1шт.

254751A1

SUPPORT ASSY.

lumbar, consists of: 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

BACKREST

1шт.

7

NSS

NOT SOLD SEPARAT

RIVET

3шт.

254752A1

ADJUSTER

adjustment, consists of: 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

KNOB

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER

1шт.

10

738-3318

PIN,M3 x 18, Coiled

1шт.

11

3230246R1

BUSHING

2шт.

12

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

13

NSS

NOT SOLD SEPARAT

PLUG

2шт.

14

254753A1

LARGE PLATE

PLATE, LARGE

1шт.

254754A1

ARMREST ASSY.

Right, Includes 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

ARMREST

1шт.

16

60-4845T1

NUT

M8

1шт.

17

3402565R1

WASHER

2шт.

18

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

254755A1

ARMREST ASSY.

left, Includes: 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

ARMREST

1шт.

20

60-4845T1

NUT

M8

1шт.

21

3402565R1

WASHER

3шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

254756A1

COVER ASSY

Includes: 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

COVER

1шт.

24

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

25

NSS

NOT SOLD SEPARAT

SCREW

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE

1шт.

28

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

29

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER

1шт.

254757A1

KIT

backrest tilt, Includes: 31 - 41

1шт.

31

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

32

NSS

NOT SOLD SEPARAT

SCREW

1шт.

33

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER

1шт.

35

NSS

NOT SOLD SEPARAT

TUBE

1шт.

36

NSS

NOT SOLD SEPARAT

PLATE

1шт.

254758A1

ADJUSTER

adjusting, armrest, Includes: 37, 38

1шт.

37

NSS

NOT SOLD SEPARAT

LEVER

1шт.

38

NSS

NOT SOLD SEPARAT

SPRING

1шт.

39

NSS

NOT SOLD SEPARAT

LEVER

1шт.

40

NSS

NOT SOLD SEPARAT

LOCK

1шт.

41

NSS

NOT SOLD SEPARAT

COVER

1шт.

254679A1

KIT

Operator Presence Safety, Consists of 42 - 45

1шт.

42

NSS

NOT SOLD SEPARAT

SWITCH

1шт.

43

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

44

3225327R1

RIVET

2шт.

45

NSS

NOT SOLD SEPARAT

STRAP

3шт.

254760A1

SLIDE GUIDE

consists of: 46 - 51

1шт.

46

NSS

NOT SOLD SEPARAT

SLIDE control

1шт.

47

NSS

NOT SOLD SEPARAT

SLIDE

1шт.

48

3402565R1

WASHER

4шт.

49

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

50

864-8012

HEX SOC SCREW,M8 x 12mm, Cl 8.8

4шт.

51

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

4шт.

255636A1

SEAT SUPPORT

swivel, consists of: 52, 53

1шт.

52

NSS

NOT SOLD SEPARAT

SWIVEL

1шт.

53

NSS

NOT SOLD SEPARAT

KNOB

1шт.

54

NSS

NOT SOLD SEPARAT

BUSHING

4шт.

55

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

4шт.

56

254761A1

SAFETY BELT

seat

1шт.

57

364415A1

HEADREST, SEAT

HEADREST

1шт.

291281A1

PACKAGE

ground strap, not illustrated

1шт.
