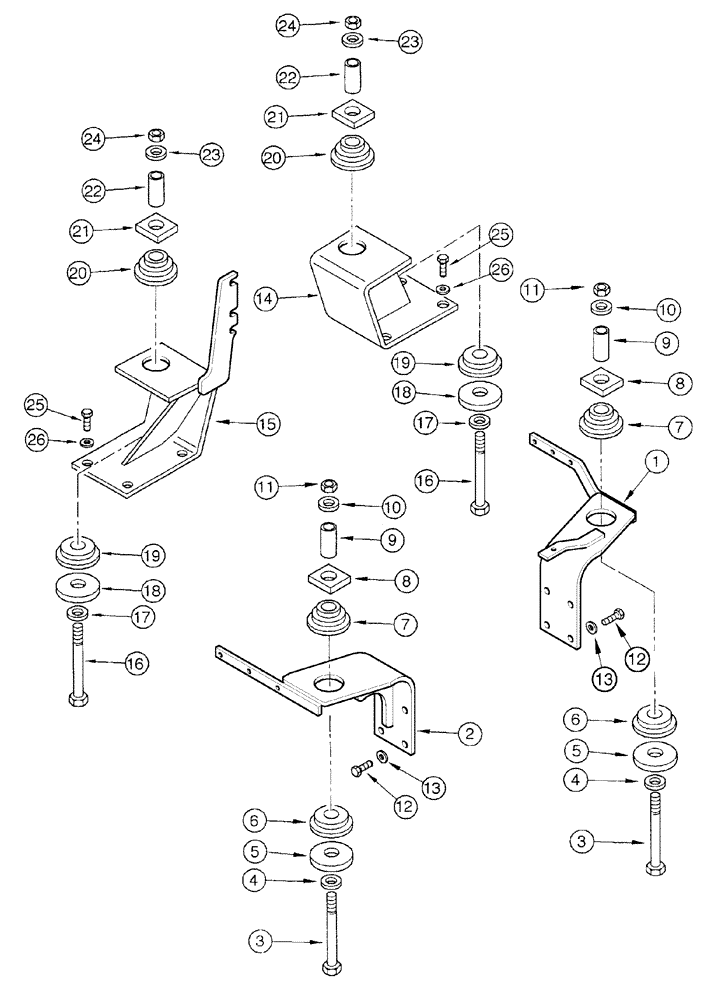

Запчасти Case IH MX80C (09-19) - CAB MOUNTINGS (09) - CHASSIS

1

259676A2

SUPPORT

front, left, serial No. - JJE1052386

1шт.

1

336655A1

SUPPORT

front, left, serial No. JJE1052387 -

1шт.

2

259675A2

SUPPORT

front, right

1шт.

3

179040A1

FLANGE BOLT,Hex, M16 x 2 x 190mm, Cl 10.9

2шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

5

178658A1

SPACER

16 mm

2шт.

5

366777A1

SPACER

12 mm

2шт.

6

1286903C1

INSULATOR BLOCK

lower

2шт.

7

192337A1

ISOLATOR,101.6mm OD x 73.7mm L

upper

2шт.

8

178659A1

PAD

2шт.

9

184262A1

SPACER

2шт.

10

897278H1

WASHER,16.5mm ID x 40mm OD x 8mm Thk

2шт.

11

829-1416

NUT,M16, Cl 10

2шт.

12

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

14

259671A2

SUPPORT

rear, left

1шт.

15

259670A2

SUPPORT

rear, right

1шт.

15

353045A2

SUPPORT

rear, right, illustrated

1шт.

16

179040A1

FLANGE BOLT,Hex, M16 x 2 x 190mm, Cl 10.9

2шт.

17

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

18

178658A1

SPACER

16 mm

2шт.

18

366777A1

SPACER

12 mm

2шт.

19

1286903C1

INSULATOR BLOCK

lower

2шт.

20

192337A1

ISOLATOR,101.6mm OD x 73.7mm L

upper

2шт.

21

178659A1

PAD

2шт.

22

184262A1

SPACER

2шт.

23

897278H1

WASHER,16.5mm ID x 40mm OD x 8mm Thk

2шт.

24

829-1416

NUT,M16, Cl 10

2шт.

25

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

26

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.
