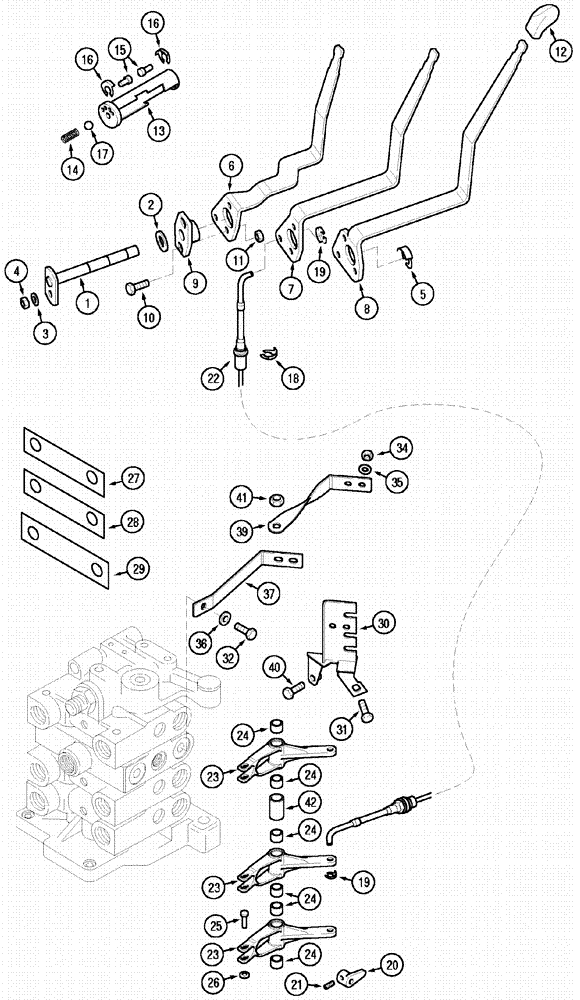

Запчасти Case IH MX80C (08-29) - CONTROLS REMOTE CONTROL VALVE (08) - HYDRAULICS

1

245495A1

HANDLED SHAFT

1шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

4

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

5

240908A1

CLIP,ELECTRICAL

shaft

1шт.

6

238473A4

CONTROL LEVER

1st Bank

1шт.

7

237631A5

CONTROL LEVER

2nd Bank

1шт.

8

238472A5

CONTROL LEVER

3rd Bank

1шт.

9

175312A1

SUPPORT

3шт.

10

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

11

832-10406

NUT,M6 x 1, Cl 8

6шт.

12

116756A1

BUTTON

5 mm

3шт.

13

1530971C2

LOCK

3шт.

14

1531484C1

SPRING

3шт.

15

T103011

PIN,6mm OD x 17mm L

6шт.

16

3221347R2

CIRCLIP

6шт.

17

511-2360

BALL,6mm OD, Gr 200

3шт.

18

3223258R2

CIRCLIP

3шт.

19

800-436

CIRCLIP,M6

Cable

6шт.

20

313132A2

LEVER

flow control

2шт.

21

878-2056

SET SCREW,M5 x 6mm

3шт.

22

239182A3

CABLE ASSY.,1524mm L

3шт.

23

224080A1

CONTROL LEVER

Includes: 24

3шт.

24

1533536C1

BUSHING,16mm ID x 18mm OD x 15mm L

2шт.

25

1531333C1

PIN,7.9mm OD x 34mm L

3шт.

26

T102627

CLIP

3шт.

27

1531515C2

SYMBOLS

SYMBOL No.1

1шт.

28

1531516C2

SYMBOLS

SYMBOL No.2

1шт.

29

1531517C2

SYMBOLS

SYMBOL No.3

1шт.

1531518C2

SYMBOLS

SYMBOL No.4, not illustrated

1шт.

30

297637A1

SUPPORT

1шт.

31

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

32

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

33

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

5шт.

36

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

37

292512A1

SUPPORT

1шт.

39

292511A1

SUPPORT

1шт.

40

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

41

829-1412

NUT,M12, Cl 10.9

2шт.

42

230546A1

SPACER

44 mm

1шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4шт.
