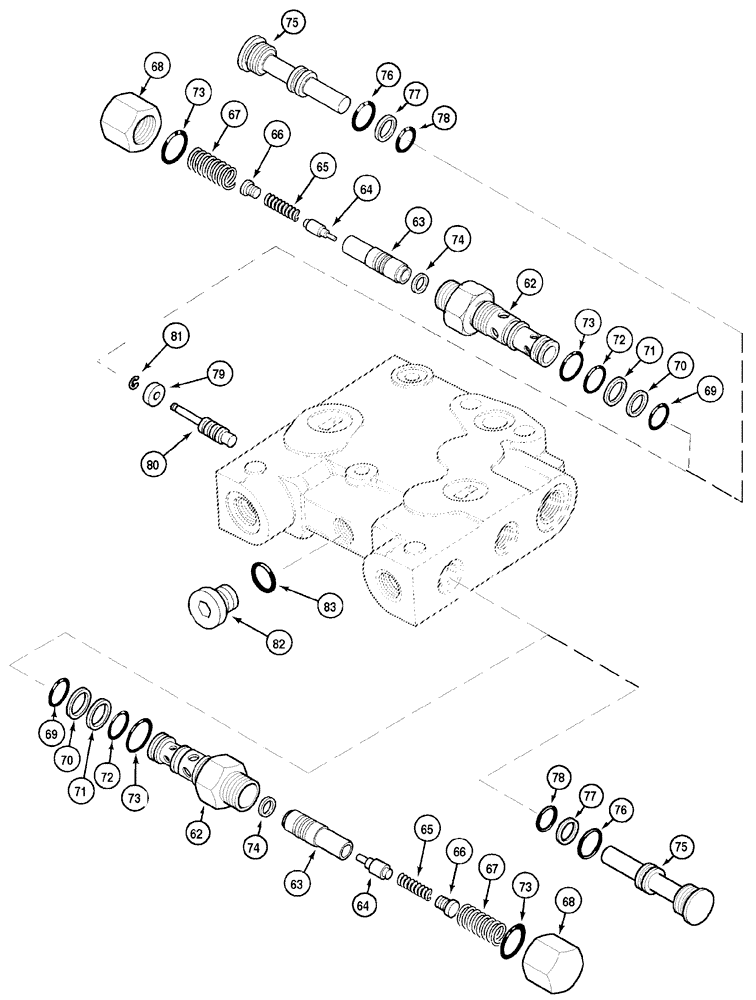

Запчасти Case IH MX80C (08-26) - REMOTE CONTROL VALVE (08) - HYDRAULICS

1971801C2

CHECK VALVE

consists of: 62 - 74

2шт.

62

NSS

NOT SOLD SEPARAT

PLUG

1шт.

63

NSS

NOT SOLD SEPARAT

VALVE poppet

1шт.

64

NSS

NOT SOLD SEPARAT

VALVE poppet

1шт.

65

NSS

NOT SOLD SEPARAT

SPRING

1шт.

66

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

67

NSS

NOT SOLD SEPARAT

SPRING

1шт.

68

NSS

NOT SOLD SEPARAT

CAP

1шт.

69

G110295

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

70

G110287

BACK-UP RING

inner

1шт.

71

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

outer

1шт.

72

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

73

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

74

G108724

BACK-UP RING

2шт.

75

1971475C1

PLUG

in place of 1971801C2, Includes: 76 - 78

2шт.

76

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

77

G110287

BACK-UP RING

1шт.

78

G110295

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

1957907C1

PISTON ASSY

consists of 79 - 81

1шт.

79

1957861C1

WASHER

2шт.

80

1957862C1

PISTON

2шт.

81

1957859C1

SNAP RING

2шт.

82

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes 83

1шт.

83

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

84

313132A2

LEVER

see Figures 8-29, 8-30

1шт.

85

878-2056

SET SCREW,M5 x 6mm

See Figures 8-29, 8-30, Use with 84

1шт.
