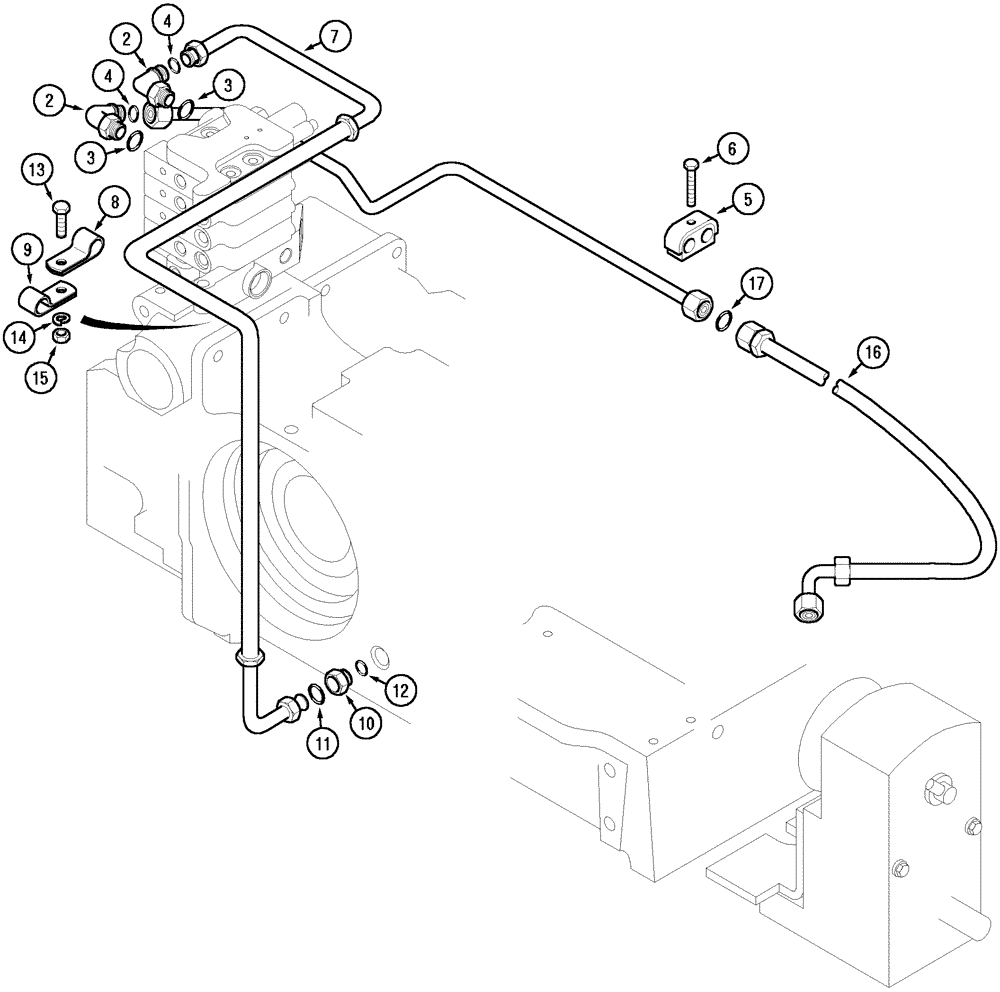

Запчасти Case IH MX80C (08-15) - HYDRAULIC PIPING FRONT HITCH (08) - HYDRAULICS

1

255674A1

PIPE

1шт.

2

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 3, 4

2шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

T101170

CLAMP

1шт.

6

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

1шт.

7

243678A1

HOSE ASSY.

oil return

1шт.

8

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

9

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

10

703-103

HYD CONNECTOR,1"-14 ORFS x 5/8" Tube, Braze

Includes: 11, 12

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

14

892-11008

LOCK WASHER,8mm ID

1шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

16

283355A1

HYDRAULIC HOSE,12.70 mm ID x 3370.00 mm, CLASS 20

See Page(s) 9-203

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
