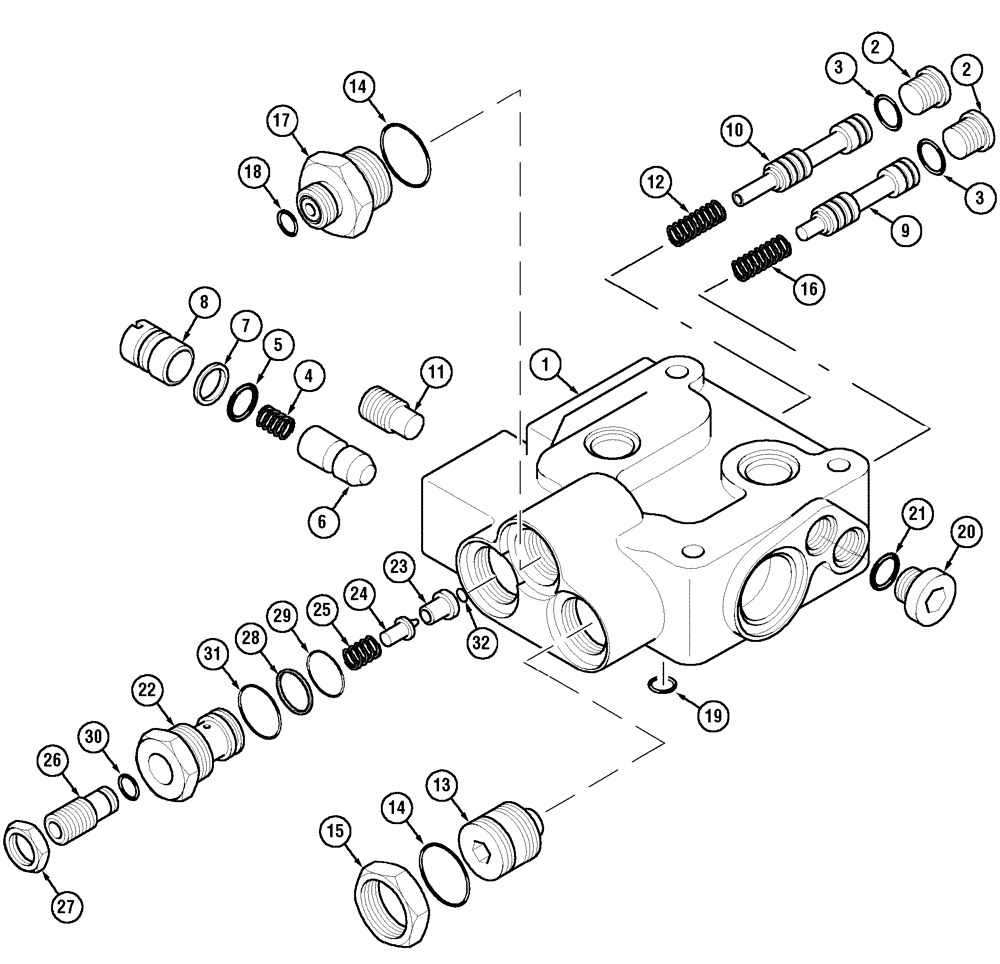

Запчасти Case IH MX80C (08-07) - PRIORITY VALVE (08) - HYDRAULICS

175642A6

VALVE

consists of: 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

221579A1

PLUG,M22 x 1.5 ORB

Includes 3

2шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

1542563C1

KIT

consists of: 4 - 8

1шт.

4

1994581C1

SPRING,6.1mm OD x 31.1mm L

1шт.

5

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

6

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

7

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

BODY

1шт.

9

119182A3

SPOOL

1шт.

10

230612A2

SPOOL

priority

1шт.

11

118923A2

PLUG

with screen

1шт.

12

230613A1

SPRING

1шт.

13

313941A1

PLUG

Includes: 14

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

15

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

16

176312A1

SPRING

1шт.

17

313940A1

FITTING

Includes: 18

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

7/8 ID x 1/8

1шт.

20

221578A1

PLUG,M18 x 1.5 ORB

Includes 21

2шт.

21

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

G108868

VALVE PRESSURE RELIE

consists of: 22 - 32

1шт.

22

NSS

NOT SOLD SEPARAT

BODY

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE poppet

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG

1шт.

27

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

28

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

29

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

NSS

NOT SOLD SEPARAT

SCREEN

1шт.
