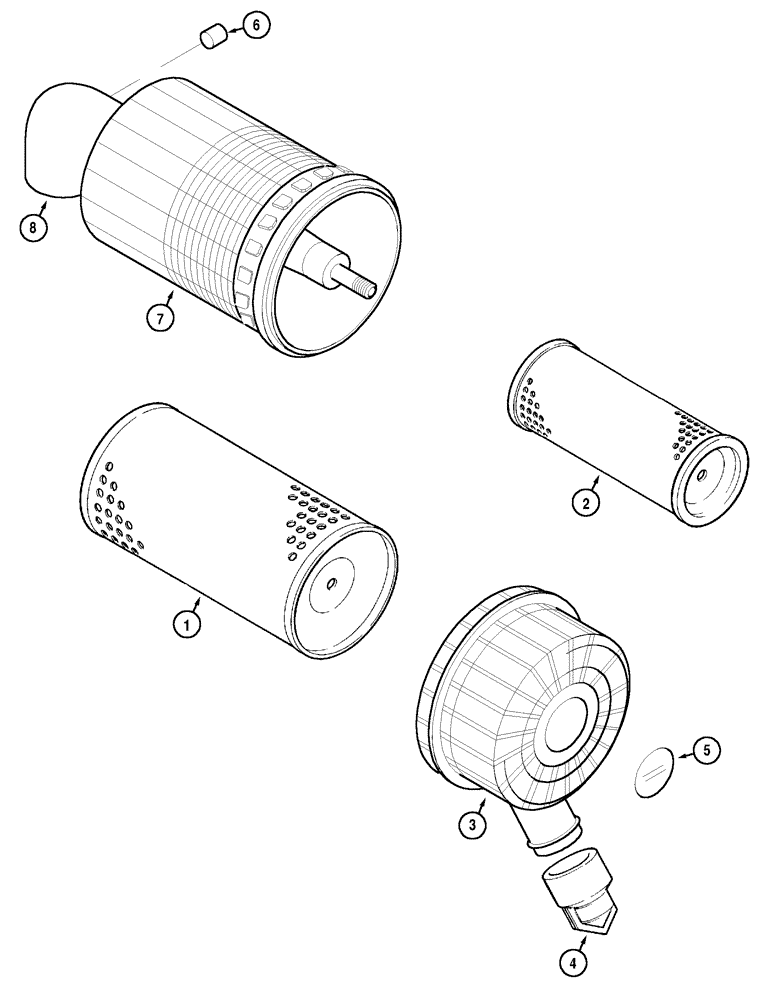

Запчасти Case IH MX100C (02-14) - AIR CLEANER, IF SO EQUIPPED (02) - ENGINE

303759A1

AIR CLEANER

8 in, consists of: 1 - 8

1шт.

1

222421A1

AIR FILTER

primary

1шт.

2

222422A1

AIR FILTER

ELEMENT, FILTER secondary

1шт.

3

395792A1

COVER ASSY

incl. 3A

1шт.

3a

86990981

LOCKING TAB

Not Illustrated Separately

1шт.

4

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

5

NSS

NOT SOLD SEPARAT

DECAL, CASE

1шт.

6

NSS

NOT SOLD SEPARAT

CAP

1шт.

7

NSS

NOT SOLD SEPARAT

BODY

1шт.

8

NSS

NOT SOLD SEPARAT

ELBOW

1шт.
