Запчасти Case IH MX100C (09-48) - SEAT VINYL, STANDARD WITH MECHANICAL SUSPENSION (09) - CHASSIS

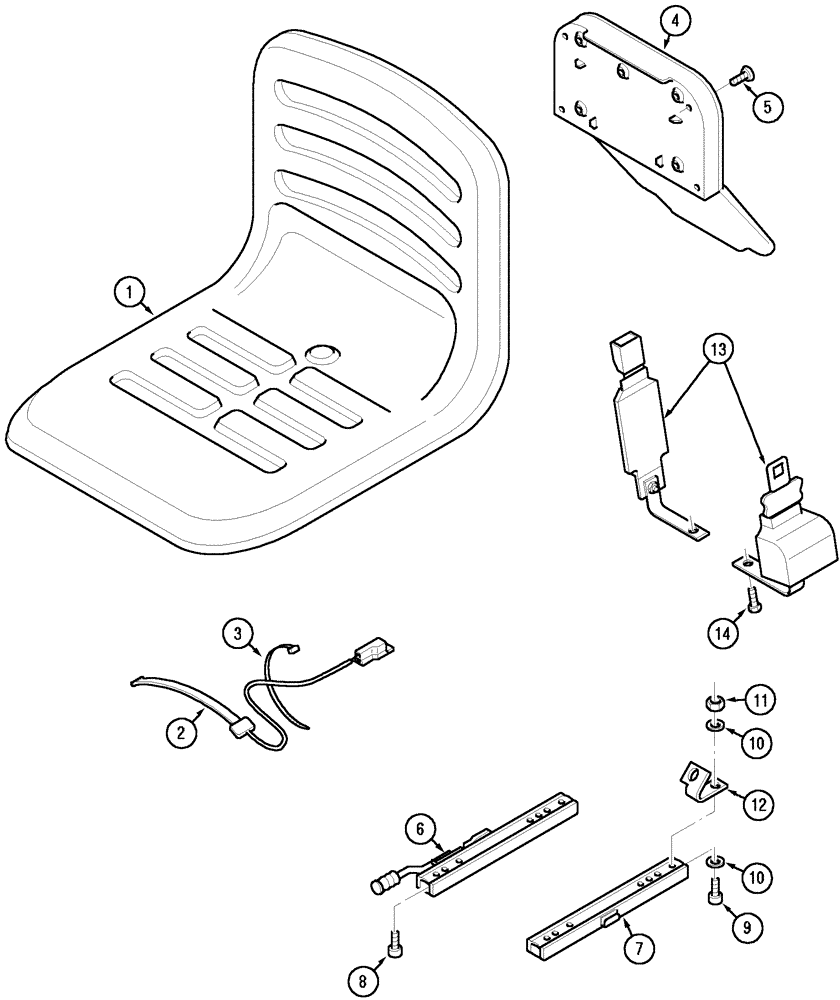

Схема запчастей Case IH MX100C - (09-48) - SEAT VINYL, STANDARD WITH MECHANICAL SUSPENSION (09) - CHASSIS
11
4
9
7
6
14
1
8
13
10
3
2
12
5
10

Артикул

Название

Примечание

Количество

192399A2

SEAT ASSY.

Europe only, without seat belt, consists of: 1 - 12

1шт.

244300A2

SEAT ASSY.

with seat belt, consists of: 1 - 14

1шт.

1

254678A1

SEAT

black

1шт.

254679A1

KIT

Operator Presence Safety, Includes 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

SWITCH

1шт.

3

NSS

NOT SOLD SEPARAT

FASTENER

3шт.

254680A1

CASE

manual compartment, Includes: 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

BOX

1шт.

5

NSS

NOT SOLD SEPARAT

SCREW

4шт.

254681A1

SLIDE

Includes 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE control

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE

1шт.

8

864-8012

HEX SOC SCREW,M8 x 12mm, Cl 8.8

4шт.

9

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

12

255637A1

SUPPORT

1шт.

254695A1

SAFETY BELT

Includes 13,14

1шт.

13

NSS

NOT SOLD SEPARAT

BELT seat

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT

2шт.

Выбрано товаров: 20
