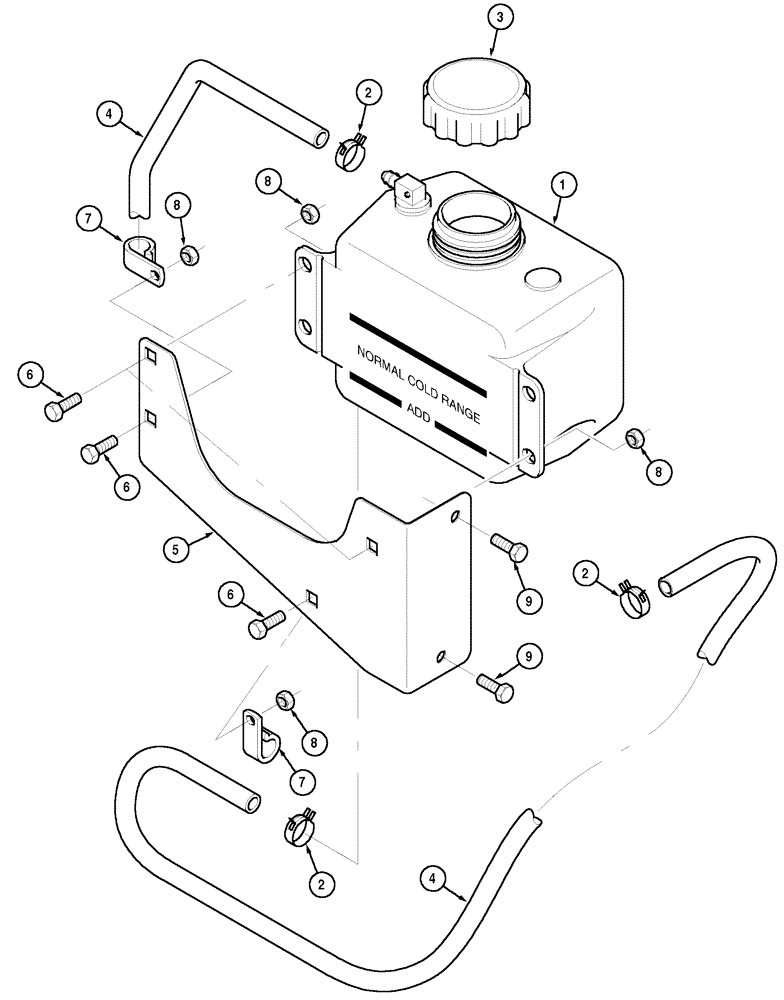

Запчасти Case IH MX100C (02-05) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

258621A2

RESERVOIR,2L

1шт.

2

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

3

A184079

CAP

1шт.

4

303447A1

HOSE

Cut from 194881A1

2шт.

5

302982A2

SUPPORT

1400 mm (55 in)

1шт.

6

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

7

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

2шт.

8

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

9

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.
