Запчасти Case IH MX100C (06-10) - TRANSMISSION DIFFERENTIAL (06) - POWER TRAIN

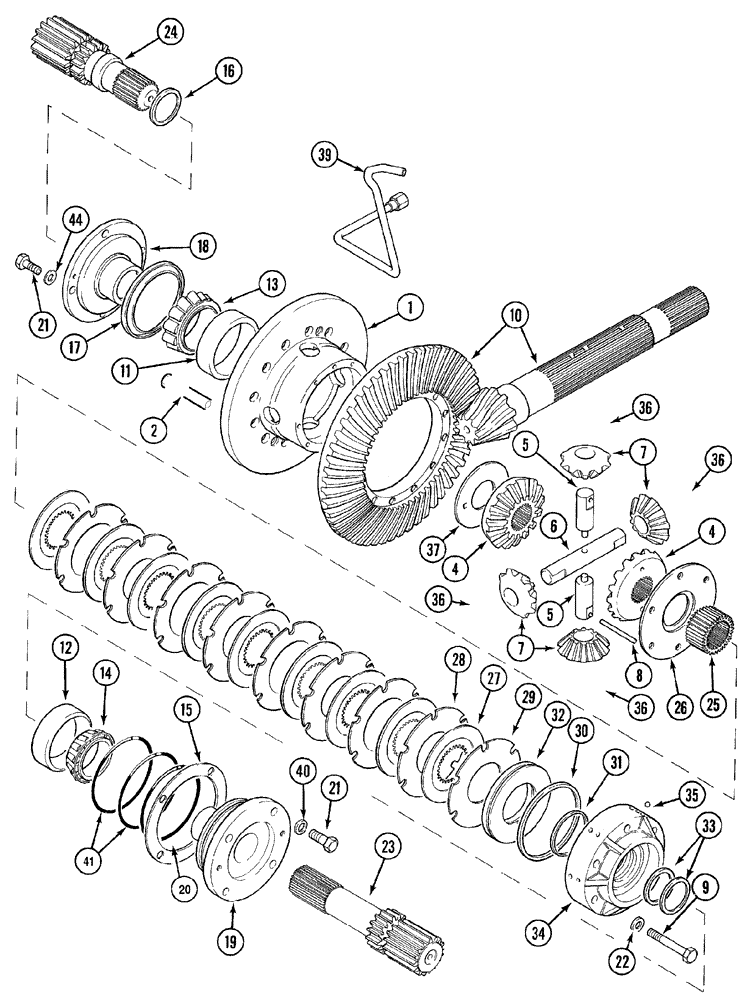

Схема запчастей Case IH MX100C - (06-10) - TRANSMISSION DIFFERENTIAL (06) - POWER TRAIN
26
7
1
7
6
40
33
14
4
36
10
5
18
29
21
12
32
41
31
8
23
35
17
28
21
30
11
36
13
16
24
4
20
34
25
37
36
27
9
36
19
15
39
44
5
2
22

Артикул

Название

Примечание

Количество

1

298932A1

FLANGE

1шт.

2

854-16045

BOLT,Hvy Hex, M16 x 40mm, Cl 10.9

12шт.

1345842C2

SERVICE KIT

Differential, Includes: 4 - 8, 26, 36, 37

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR

2шт.

5

NSS

NOT SOLD SEPARAT

PIN

2шт.

6

NSS

NOT SOLD SEPARAT

PIN

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR

4шт.

8

38-11652

LOCK PIN,6.35mm OD x 82.55mm L, Slotted

2шт.

9

868-12090

12 PT SCREW,M12 x 90mm, Cl 12.9

6шт.

10

1341189C4

GEAR, BEVEL

BEVEL GEAR 9/55T

1шт.

11

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

1шт.

12

928330C1

BEARING CUP,110mm OD x 17.46mm W

1шт.

13

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

1шт.

14

928331C91

ROLLER BEARING,69.98mm ID x 25mm W

1шт.

15

A175236

SHIM,0.08mm Thk

1шт.

15

A175237

SHIM,138mm ID x 180mm OD x 0.2mm Thk

1шт.

15

A175238

SHIM,0.25mm Thk

1шт.

15

A175239

SHIM,138mm ID x 180mm OD x 0.69mm Thk

1шт.

16

A188495

SEALING RING,48.37mm ID x 55.93mm OD x 2.95mm Thk

SEALRING

1шт.

17

A188501

SEAL,118.02mm ID x 134.07mm OD x 9mm Thk

1шт.

18

1341074C1

FLANGE

1шт.

19

1345919C1

BALL RACE

1шт.

20

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

21

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

22

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

23

A190141

SHAFT

16T

1шт.

24

A188873

SHAFT

16T

1шт.

25

1341293C1

HUB

1шт.

26

1345662C1

DISC

1шт.

27

A188853

DISC,68.4mm ID x 136mm OD x 2.13mm Thk

9шт.

28

1345663C1

DISC

8шт.

29

1345661C1

DISC

1шт.

30

A188856

SEALING RING,127.75mm ID x 134.11mm OD x 3.18mm Thk

1шт.

31

A188861

SEAL,78.98mm ID x 83.7mm OD x 3.18mm Thk

1шт.

32

A188851

PISTON

1шт.

33

1345877C1

SEALING RING

2шт.

34

1995292C1

CAGE

Includes: 35

1шт.

35

211-1308

BALL,1/4" Dia

1шт.

36

124869A1

THRUST WASHER,29mm ID x 65.54mm OD x 2.3mm Thk

4шт.

37

1345640C1

THRUST WASHER,47.5mm ID x 109mm OD x 3.2mm Thk

1шт.

39

A188692

HYD TUBE

1шт.

40

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

10 mm

8шт.

41

A188778

SEAL ASSY.

with O-ring

1шт.

Выбрано товаров: 43
