Запчасти Case IH MX100C (06-04) - SPEED TRANSMISSION DROP SHAFT, POWERSHIFT, A: -JKA127945, B: JKA127945- (06) - POWER TRAIN

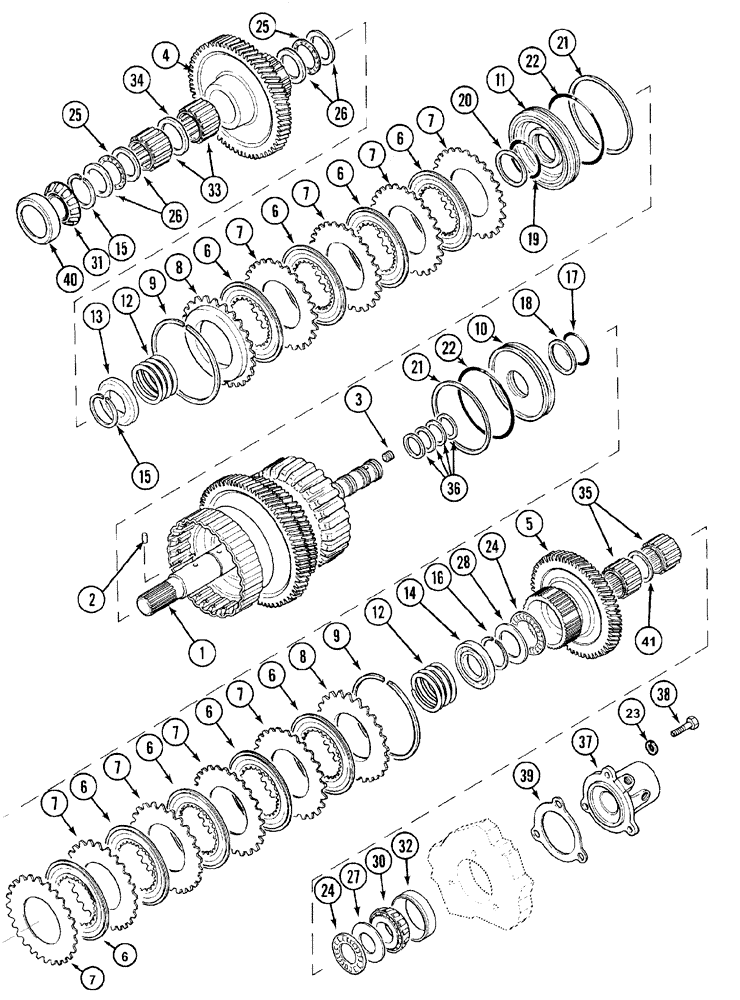

Схема запчастей Case IH MX100C - (06-04) - SPEED TRANSMISSION DROP SHAFT, POWERSHIFT, A: -JKA127945, B: JKA127945- (06) - POWER TRAIN
31a
15b
17
12b
9
6
1b
35
41a
7
4a
8
6
7
22
7
6
37
38
7
23
7
6
19
26a
36
25a
24a
5b
12a
6
18
26b
34a
2
3
14b
11a
24a
21
21
10
6
8
25a
30
20b
7
13b
7
6
16a
28
15b
27
9
7
7
6
33a
32
39
40
6
22

Артикул

Название

Примечание

Количество

1a

255066A1

SHAFT ASSY.

clutch plate 7, Includes: 2, 3

1шт.

1b

347029A1

SHAFT

clutch plate 7, Includes: 2, 3

1шт.

1a

1995393C2

SHAFT ASSY.

clutch plate 5, Includes: 2, 3

1шт.

1b

367232A1

SHAFT ASSY.

clutch plate 5, Includes: 2, 3

1шт.

2

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

1шт.

3

1342851C1

PLUG

10 mm

3шт.

3

1345887C1

PLUG

9 mm

3шт.

4a

1995208C2

SPROCKET ASSY.

68T, drive, 2nd speed, 22.9 mm (29/32 in) Gear Width

1шт.

4b

246451A1

SPROCKET ASSY.

drive, 2nd speed, 68T, 30.0 mm (1-3/16 in) Gear Width

1шт.

5a

113557A1

SPROCKET ASSY.

56T, drive

1шт.

5b

228781A1

PINION

drive, 4th speed

1шт.

6

1997129C1

NOTCHED DISK

2nd speed C2

5шт.

6

1997129C1

NOTCHED DISK

4th speed C4

4шт.

7

A175806

PLATE

9шт.

8

1997122C1

PLATE

2шт.

9

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

2шт.

10

A159239

PISTON

1шт.

11a

A159292

PISTON

121.8 x 20.65 mm

1шт.

11b

228799A1

PISTON

1шт.

12a

A188080

SPRING

2шт.

12b

228833A1

SPRING

2шт.

13a

A188044

RETAINER

1шт.

13b

232867A1

RETAINER

1шт.

14a

A186965

RETAINER,40.38mm ID x 64.63mm OD x 4.75mm Thk

1шт.

14b

228805A1

COLLAR

1шт.

15a

100-16175

SNAP RING,#175, Ext

1шт.

15b

800-5150

SNAP RING,M50, Ext

1шт.

16a

100-16156

SNAP RING,#156, Ext

1шт.

16b

800-5148

SNAP RING,M48, Ext, Hvy

1шт.

17

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2-1/16 ID x 3/32

1шт.

18

A159295

SEAL,44.2mm ID x 50.7mm OD x 3.1mm Thk

1шт.

19

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

19

238-7141

O-RING,0.103" Thk x 2.3" ID, -141, Cl 7, 75 Duro

1шт.

20a

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING

1шт.

20b

235660A1

SEAL,54.4mm ID x 60.75mm OD x 2.98mm Thk

1шт.

21

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

2шт.

22

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

2шт.

22

238-7156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 7, 75 Duro

(Replaces 238-5156)

2шт.

23

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

3шт.

24a

A175486

THRUST BEARING,40.05mm ID x 61.85mm OD x 3.85mm W

2шт.

24b

191431A1

BEARING ASSY,48.05mm ID x 71.65mm OD x 4.59mm W

2шт.

25a

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

2шт.

25b

241601A1

BEARING, NEEDLE,50.91mm ID x 69.47mm OD x 1.98mm W

2шт.

26a

390362R1

THRUST WASHER,44.63mm ID x 63mm OD x 3.16mm Thk

4шт.

26b

A42844

WASHER,50.85mm ID x 69.6mm OD x 3.2mm Thk

4шт.

27

A175396

WASHER, THRUST,36.6mm ID x 60mm OD x 2.3mm Thk

1шт.

28

A159463

SHIM,40.05mm ID x 59.94mm OD x 2.25mm Thk

1шт.

29

A188478

WASHER, THRUST,38.33mm ID x 65mm OD x 4.5mm Thk

1шт.

30

206214R91

CONE,36.49mm ID x 25.65mm W

1шт.

31a

1345711C1

ROLLER BEARING,38.11mm ID x 25.57mm W

1шт.

31b

257929A1

ROLLER BEARING,49.99mm ID x 27.98mm W

1шт.

32

A175395

ROLLER BEARING,76.225 mm OD x 19.101 mm

1шт.

33a

A188474

NEEDLE BEARING,44.39mm ID x 57.14mm OD x 26.57mm W

2шт.

33b

610828C91

NEEDLE BEARING,50.79mm ID x 60.35mm OD x 31.75mm W

2шт.

34a

A188479

SPACER,47.5mm ID x 57mm OD x 7.8mm L

1шт.

34b

228802A1

GASKET

1шт.

35a

A175487

NEEDLE BEARING,39.99mm ID x 45.02mm OD x 16.8mm W

2шт.

35b

228804A1

BEARING, NEEDLE,46.99mm ID x 52.02mm OD x 16.63mm W

2шт.

36

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING

4шт.

37

A186393

HUB

1шт.

38

866-10035

12 PT SCREW,Flg, M10 x 35mm, Cl 12.9

3шт.

39

A183645

SHIM,77.5mm ID x 94mm OD x 0.09mm Thk

1шт.

39

A183646

SHIM,77.5mm ID x 100mm OD x 0.14mm Thk

1шт.

39

A183647

SHIM,77.5mm ID x 100mm OD x 0.28mm Thk

1шт.

39

A183648

SHIM,77.5mm ID x 94mm OD x 0.69mm Thk

1шт.

40

A75210

BEARING CUP,3.5433" OD x 0.9055"

1шт.

41a

228803A1

SPACER

1шт.

Выбрано товаров: 67
