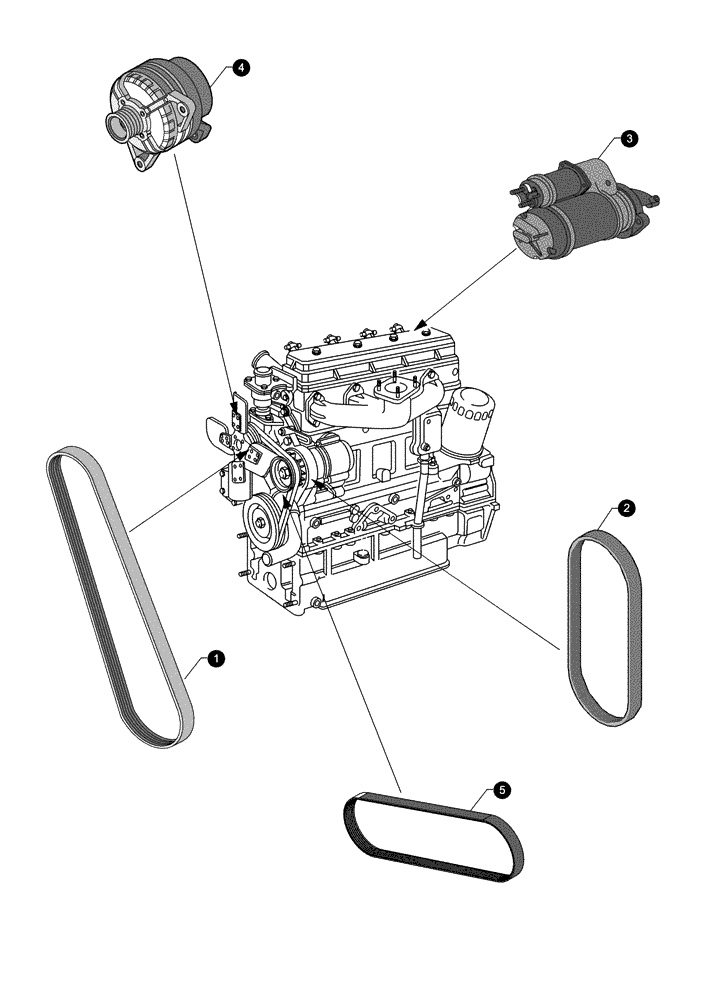

Запчасти Case IH MX100C (00-40[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (00) - PICTORIAL INDEX

1

241895A2

SET OF BELTS,10.00 mm W x 1452.00 mm L

Fan Belt

1шт.

Valid with MX80C-CASE IH MX SERIES TRACTOR, MX90C-CASE IH MX SERIES TRACTOR, MX100C-CASE IH MAXXUM DIESEL TRACTOR Models

1шт.

1

389069A1

SET OF BELTS,10.00 mm W x 1800.00 mm L

Main Drive

1шт.

Valid with MX80C-CASE IH MX SERIES TRACTOR, MX90C-CASE IH MX SERIES TRACTOR, MX100C-CASE IH MAXXUM DIESEL TRACTOR Models

1шт.

2

248265A2

BELT,12.70 mm W x 975.00 mm L

Air Conditioner Compressor Belt

1шт.

Valid with MX80C-CASE IH MX SERIES TRACTOR, MX90C-CASE IH MX SERIES TRACTOR, MX100C-CASE IH MAXXUM DIESEL TRACTOR Models

1шт.

3

6106496M92

STARTER MOTOR

On Engine

1шт.

Valid with MX80C-CASE IH MX SERIES TRACTOR, MX90C-CASE IH MX SERIES TRACTOR, MX100C-CASE IH MAXXUM DIESEL TRACTOR Models

1шт.

Valid with STD

1шт.

4

A187623

ALTERNATOR

On Engine

1шт.

Valid with MX80C-CASE IH MX SERIES TRACTOR, MX90C-CASE IH MX SERIES TRACTOR, MX100C-CASE IH MAXXUM DIESEL TRACTOR Models

1шт.

Valid with STD

1шт.

4

A187623GV

ALTERNATOR

On Engine, Value

1шт.

Valid with MX80C-CASE IH MX SERIES TRACTOR, MX90C-CASE IH MX SERIES TRACTOR, MX100C-CASE IH MAXXUM DIESEL TRACTOR Models

1шт.

Valid with STD

1шт.

5

293956A1

V-BELT,12.70 mm W x 900.00 mm L

Compressor Belt, Without Air Conditioning

1шт.

Valid with MX80C-CASE IH MX SERIES TRACTOR, MX90C-CASE IH MX SERIES TRACTOR, MX100C-CASE IH MAXXUM DIESEL TRACTOR Models

1шт.

5

294462A1

V-BELT

Compressor Belt, With Air Conditioning

1шт.

Valid with MX80C-CASE IH MX SERIES TRACTOR, MX90C-CASE IH MX SERIES TRACTOR, MX100C-CASE IH MAXXUM DIESEL TRACTOR Models

1шт.
