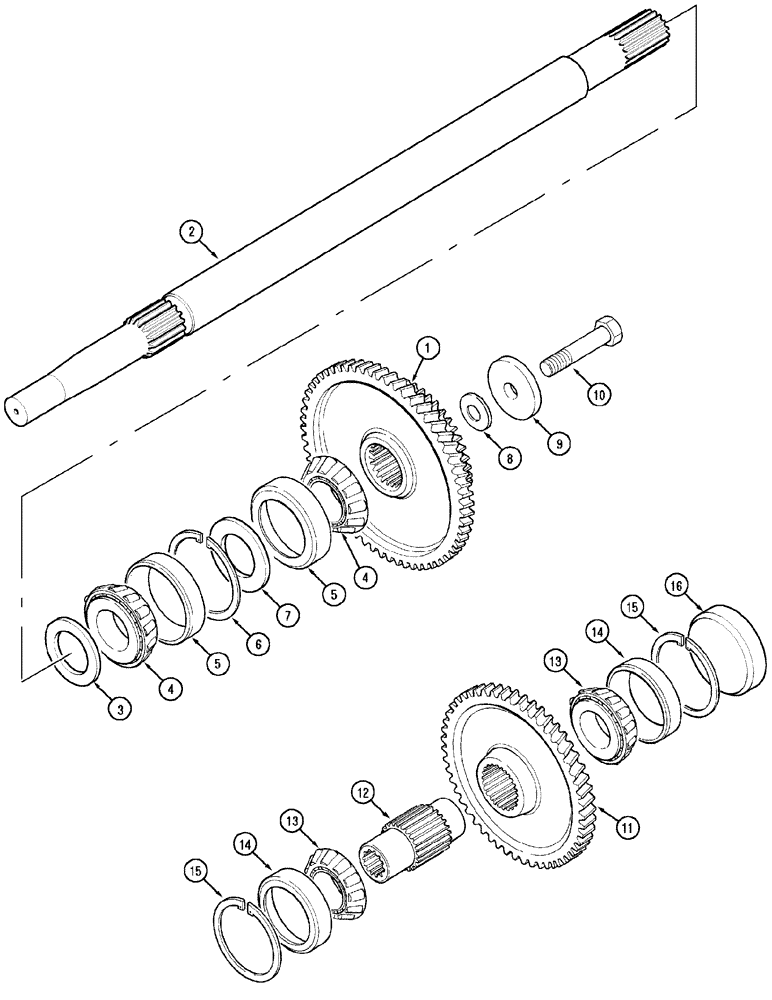

Запчасти Case IH MX170 (06-24) - P.T.O. AND OIL PUMP DRIVE (21) - TRANSMISSION

1

249312A3

PINION

P.T.O. Drive

1шт.

2

234310A3

SHAFT

P.T.O. Drive, Front

1шт.

3

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

1шт.

256863A1

BEARING ASSY,34.93mm ID x 65.1mm OD x 39.83mm W

Consists Of 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

Cone Assy

2шт.

5

NSS

NOT SOLD SEPARAT

2-1/2 OD, Bearing, Cup

2шт.

6

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

7

NSS

NOT SOLD SEPARAT

Spacer

1шт.

8

A158879

SHIM,13mm ID x 30mm OD x 0.08mm Thk

1шт.

8

A158880

SHIM,13mm ID x 30mm OD x 0.31mm Thk

1шт.

8

A158881

SHIM,1.016mm Thk

1шт.

9

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

1шт.

10

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

11

249311A1

PINION

Pump Drive

1шт.

12

258034A1

DRIVE SHAFT

Pump Drive

1шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

14

651817R1

BEARING CUP

2шт.

15

A178627

RING, SNAP

RING SNAP , 1,5 mm

1шт.

15

A178629

SNAP RING

1,6 mm

1шт.

15

A178626

RING, SNAP

RING SNAP , 1,7 mm

1шт.

15

A178628

SNAP RING

1,8 mm

1шт.

15

A175867

CIRCLIP

2,0 mm

1шт.

16

A175414

PLUG

1шт.
