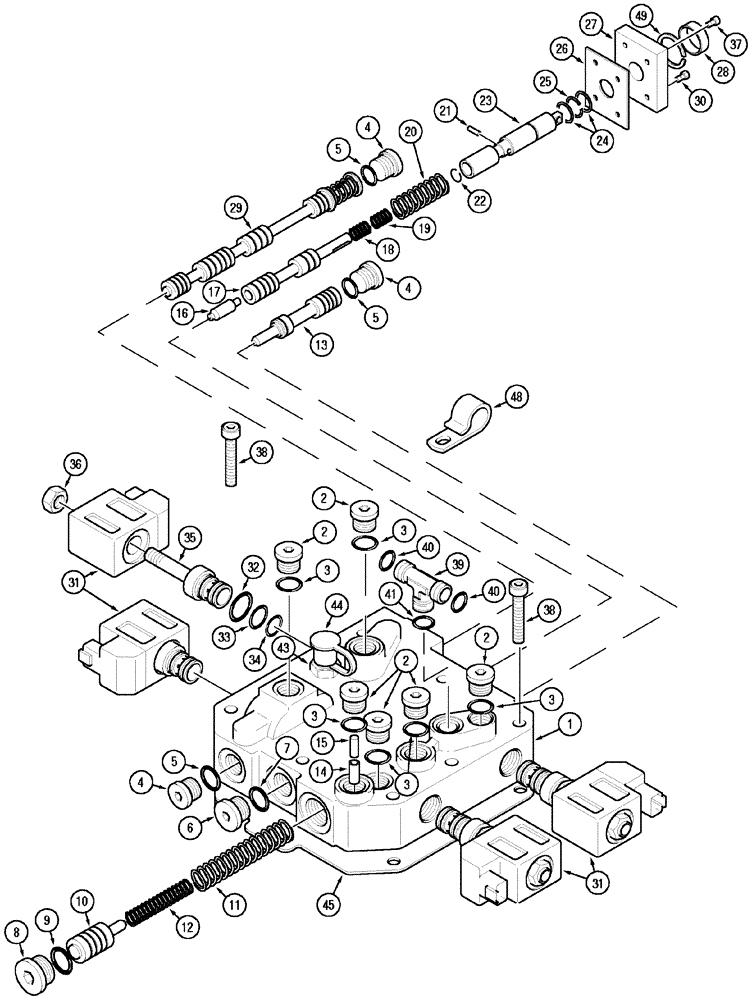

Запчасти Case IH MX170 (06-20) - FORWARD / NEUTRAL / REVERSE SHUTTLE VALVE (21) - TRANSMISSION

176304A5

VALVE, CONTROL

4WD, Consists Of 1 - 31,32 - 37

1шт.

179822A5

VALVE, CONTROL

2WD, Consists Of 1 - 30,31A,31B - 37

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes 3

6шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 5

3шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

86625138

PLUG,7/18" - 14

Includes Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Incl. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

110384A1

PISTON

1шт.

11

110385A1

VALVE SPRING

1шт.

12

110386A2

VALVE SPRING,13.18mm

1шт.

13

144526A3

SPOOL

1шт.

14

112922A1

PLUG

1шт.

15

838-4816

COTTER PIN,M8 x 16, Slotted

1шт.

16

132558A1

PIN

1шт.

17

229665A2

SPOOL

1шт.

18

193884A1

SPRING

1шт.

19

193885A1

SPRING

1шт.

20

110392A1

VALVE SPRING,20.57mm OD

1шт.

21

121857A1

PIN,3.1mm x 11.5mm

1шт.

22

176387A1

CIRCLIP,12.25mm

1шт.

23

177326A1

THREADED ROD

1шт.

24

110397A1

WASHER

2шт.

25

100-1862

SNAP RING,#62, Ext

1шт.

26

176380A1

GASKET,0.91mm Thk

1шт.

281235A1

COVER

Consists Of 27,28,49

1шт.

27

NSS

NOT SOLD SEPARAT

Cover

1шт.

28

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

1шт.

29

229680A1

SPOOL

1шт.

30

877-30630

SET SCREW,Hex Skt, M6 x 30mm, Flat Pt

2шт.

31

349295A1

SOLENOID VALVE

Includes 32 - 36

4шт.

31c

177120A1

PLUG

Solenoid, 2WD, Without Creep Speed, Not Illustrated, Order Also 32,33,34

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

34

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

35

NSS

NOT SOLD SEPARAT

Spool

1шт.

36

NSS

NOT SOLD SEPARAT

Nut

1шт.

37

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

2шт.

38

828-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

M10 x 55; 10.9

8шт.

39

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes 40,41

1шт.

40

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

41

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

43

178889A1

DIAGNOSTIC COUPLER

Includes 44

1шт.

44

H434163

DUST CAP

1шт.

45

258697A2

GASKET,0.92mm Thk

1шт.

48

516-23190

CLAMP,J, 3/4", Insul, 3/8" Bolt

2шт.

49

239-5022

O-RING,Square, 0.062" Thk x 1" ID, -22, Cl 5, 75 Duro

1шт.
