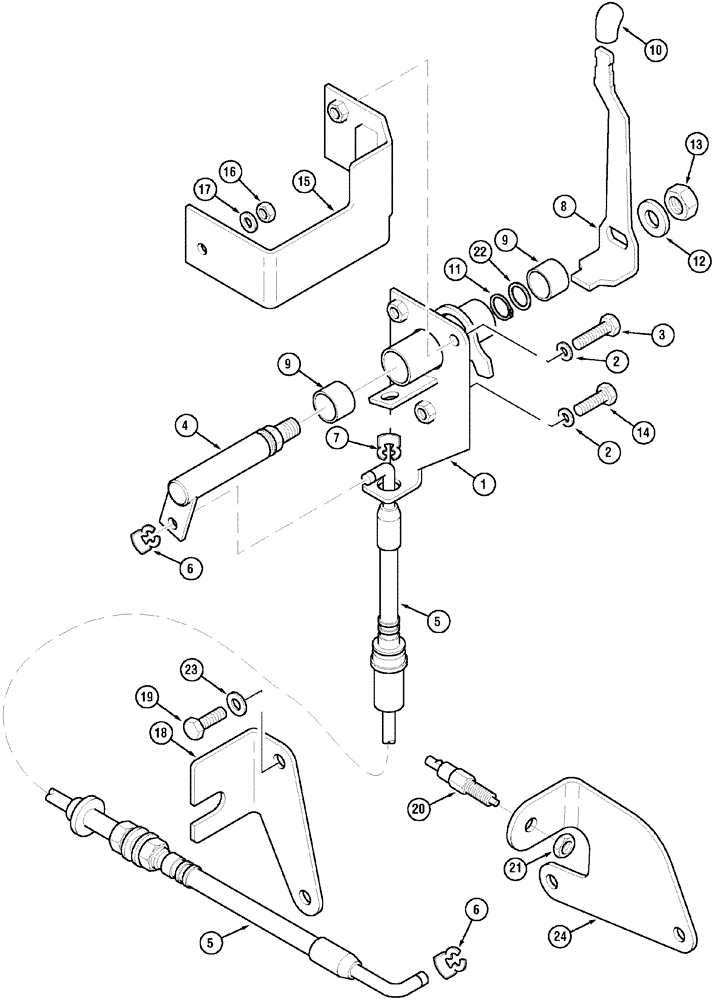

Запчасти Case IH MX170 (06-16) - CREEP SPEED SHIFTER LEVER (21) - TRANSMISSION

1

234880A3

SUPPORT ASSY.

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

4

246358A1

HANDLED SHAFT

1шт.

5

253608A1

CABLE ASSY.

1шт.

6

800-436

CIRCLIP,M6

2шт.

7

800-4313

CIRCLIP,M13

1шт.

8

246178A2

CONTROL LEVER

1шт.

9

1533538C1

PLASTIC RING

2шт.

10

177106A1

GRIP

1шт.

11

800-5120

SNAP RING,M20, Ext

20 mm

1шт.

11

800-4520

SNAP RING,M20, Ext

Optional

1шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

15

247473A2

SUPPORT

1шт.

16

832-10406

NUT,M6 x 1, Cl 8

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

222572A2

SUPPORT

1шт.

19

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

2шт.

20

177499A2

LIMIT SWITCH

Plunger, Incl 21

2шт.

21

188603A1

JAM NUT

M16

1шт.

96900C1

SPRING NUT,U, #10-16, Panel type

Not Illustrated

1шт.

22

259443A1

WASHER

2 mm

1шт.

23

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

24

320086A1

SUPPORT

See Page(s) 6-5

1шт.
