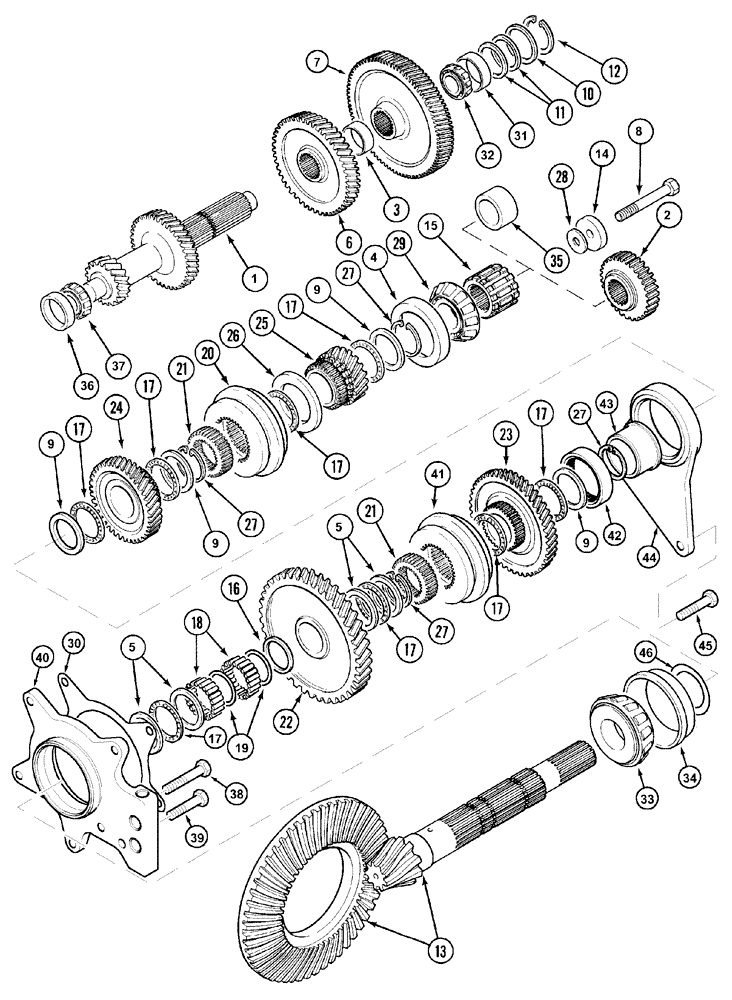

Запчасти Case IH MX170 (06-07) - TRANSMISSION - RANGE (21) - TRANSMISSION

Shaft And Gears

1шт.

1

249317A2

SHAFT

Intermediate, Drive, With 1st and 2nd Gear 20-38T

1шт.

1

387056A1

SHAFT

Intermediate, Drive, With 1st and 2nd Gear 20-30T

1шт.

2

283727A1

PINION

26T, 4WD, See Page(s) 6-87

1шт.

3

234833A2

SPACER

1шт.

4

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

1шт.

5

921272C1

THRUST WASHER

1,562 mm

4шт.

6

228603A1

PINION

49T, 3rd Gear, Drive

1шт.

7

228602A1

PINION

58T, 4th Gear, Drive

1шт.

8

828-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

1шт.

9

A150067

WASHER, THRUST,57.33mm ID x 75.7mm OD x 3.16mm Thk

3,12/3,2 mm

4шт.

10

235082A1

SPACER

1шт.

11

235083A1

SHIM

0,08 mm

1шт.

11

235085A1

SHIM

0,13 mm

1шт.

11

235086A1

SHIM

0,18 mm

1шт.

11

235087A1

SHIM

0,51 mm

1шт.

11

356417A1

SHIM

0,30 mm

1шт.

12

100-21300

SNAP RING,3.00", Int, #300

1шт.

13

228623A1

BEVEL GEAR

See Page(s) 6-29

1шт.

14

A188584

WASHER, THRUST

1шт.

15

232832A1

HUB

1шт.

16

1345645C1

SPACER

1шт.

17

K620185

THRUST BEARING

8шт.

2707624R91

NEEDLE BEARING

KIT - needle bearings/spacers, Includes Ref: 18, 19

1шт.

18

1341221C1

NEEDLE BEARING,Needle, 5.14mm OD x 24.64mm L

76шт.

19

NSS

NOT SOLD SEPARAT

Spacer

2шт.

20

1345825C2

SYNCHRONIZER

1шт.

21

1341047C1

SYNCHRO BODY

2шт.

22

249295A1

GEAR

61T, 1st Gear, Driven

1шт.

353031A1

PACKAGE, REPAIR

1st Gear

1шт.

23

249292A1

PINION

51T, 2nd Gear, Driven

1шт.

23

387055A1

PINION

49T, 2nd Gear, Driven

1шт.

24

228606A2

PINION

40T, 3rd Gear, Driven

1шт.

25

228605A2

PINION

24T, 4th Gear, Driven

1шт.

26

A183747

WASHER, THRUST,83.05mm ID x 105mm OD x 4.49mm Thk

1шт.

27

101-11225

SNAP RING,#225, Ext

4шт.

28

A188344

SHIM,17.11mm ID x 41mm OD x 0.05mm Thk

1шт.

28

A186916

SHIM,17.11mm ID x 41mm OD x 0.08mm Thk

1шт.

28

A188345

SHIM,17.11mm ID x 41mm OD x 0.13mm Thk

1шт.

28

A186917

SHIM,17.11mm ID x 41mm OD x 0.31mm Thk

1шт.

28

A186918

SHIM,17.11mm ID x 41mm OD x 1.02mm Thk

1шт.

29

615427C91

ROLLER BEARING,47.63mm ID x 30.25mm W

1шт.

30

232750A1

SHIM

0,08 mm

1шт.

30

232751A1

SHIM

0,18 mm

1шт.

30

232752A1

SHIM

0,25 mm

1шт.

30

232753A1

SHIM

0,51 mm

1шт.

31

1345712C1

BEARING, CUP,76.21mm OD x 18.95mm W

1шт.

32

1345711C1

ROLLER BEARING,38.11mm ID x 25.57mm W

1шт.

33

237791A1

TAPERED BEARING,61.92mm ID x 39.58mm W

1шт.

34

228591A1

BEARING CUP,146.06mm OD x 25.3mm W

1шт.

35

235235A1

SPACER

2WD

1шт.

36

REF

INSTRUCTION

Bearing, Cup

1шт.

37

459454R91

ROLLER BEARING,1.563" ID x 1.01"

1шт.

38

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

39

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

249140A1

SUPPORT

Consists Of 34,40

1шт.

40

249139A1

SUPPORT

1шт.

41

228592A2

SYNCHRONIZER

1шт.

42

228587A1

BEARING, ROLLER,69.99mm ID x 109.99mm OD x 29.93mm W

1шт.

43

228586A1

HUB

1шт.

44

228585A2

SUPPORT

1шт.

45

828-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9

M16 x 50; 10.9

2шт.

46

356417A1

SHIM

0,30 mm

1шт.
