Запчасти Case IH MX170 (06-02) - SPEED TRANSMISSION - INPUT SHAFT (21) - TRANSMISSION

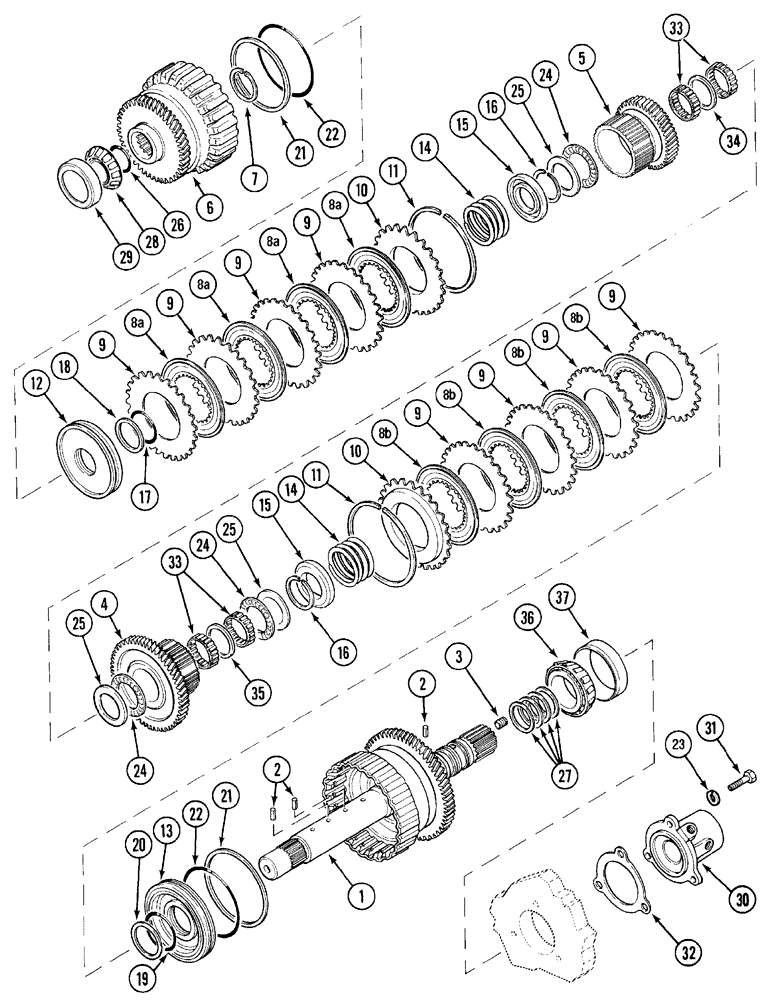

Схема запчастей Case IH MX170 - (06-02) - SPEED TRANSMISSION - INPUT SHAFT (21) - TRANSMISSION
37
9
25
14
9
22
22
27
2
9
32
23
21
29
11
2
24
26
14
9
8b
3
8a
9
10
19
8b
11
25
6
21
30
8a
18
1
15
17
34
36
33
5
10
33
8a
24
25
8a
9
16
8b
15
24
9
9
20
13
31
16
12
4
28
7
35
8b

Артикул

Название

Примечание

Количество

1

228791A1

SHAFT ASSY.

465.3mm, Includes 2,3

1шт.

2

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

3шт.

3

1345887C1

PLUG

9 mm

3шт.

4

228777A1

PINION

Drive, 3rd Speed

1шт.

5

228778A1

GEAR

Drive, 1st Speed

1шт.

6

246450A1

SPROCKET ASSY.

Drive, 2nd Speed

1шт.

7

100-11175

SNAP RING,#175, Ext

1шт.

8a

1997129C1

NOTCHED DISK

Use With C1

4шт.

8b

245297A1

NOTCHED DISK

Hardened, Use With C3

4шт.

9

A175806

PLATE

8шт.

10

1997122C1

PLATE

2шт.

11

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

2шт.

12

A159239

PISTON

1шт.

13

A159292

PISTON

1шт.

14

A188080

SPRING

2шт.

15

A188044

RETAINER

2шт.

16

100-16175

SNAP RING,#175, Ext

2шт.

17

238-7135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 7, 75 Duro

1шт.

18

A159295

SEAL,44.2mm ID x 50.7mm OD x 3.1mm Thk

1шт.

19

238-7137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 7, 75 Duro

1шт.

20

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING , Inner

1шт.

21

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

Outer

2шт.

22

238-7156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 7, 75 Duro

2шт.

23

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

3шт.

24

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

3шт.

25

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

3шт.

26

238-5324

O-RING,0.21" Thk x 1.35" ID, -324, Cl 5, 75 Duro

2nd Gear

1шт.

27

1995100C1

SEAL,41.66mm ID x 44.98mm OD x 2.38mm Thk

4шт.

28

206214R91

CONE,36.49mm ID x 25.65mm W

1шт.

29

A175395

ROLLER BEARING,76.225 mm OD x 19.101 mm

1шт.

30

1995099C1

HUB

1шт.

31

866-10035

12 PT SCREW,Flg, M10 x 35mm, Cl 12.9

3шт.

32

A188648

SHIM,83.7mm ID x 119.5mm OD x 0.09mm Thk

1шт.

32

A188649

SHIM,83.7mm ID x 119.5mm OD x 0.14mm Thk

1шт.

32

A188650

SHIM,83.7mm ID x 119.5mm OD x 0.28mm Thk

1шт.

32

A188651

SHIM,83.7mm ID x 119.5mm OD x 0.69mm Thk

1шт.

33

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

4шт.

34

228800A1

SPACER

1шт.

35

228801A1

SPACER

1шт.

36

1995417C1

BEARING ASSY,46.04mm ID x 25.48mm W

1шт.

37

130503H

BEARING CUP

3-17/64

1шт.

100-21300

SNAP RING,3.00", Int, #300

Not Illustrated

2шт.

Выбрано товаров: 42
