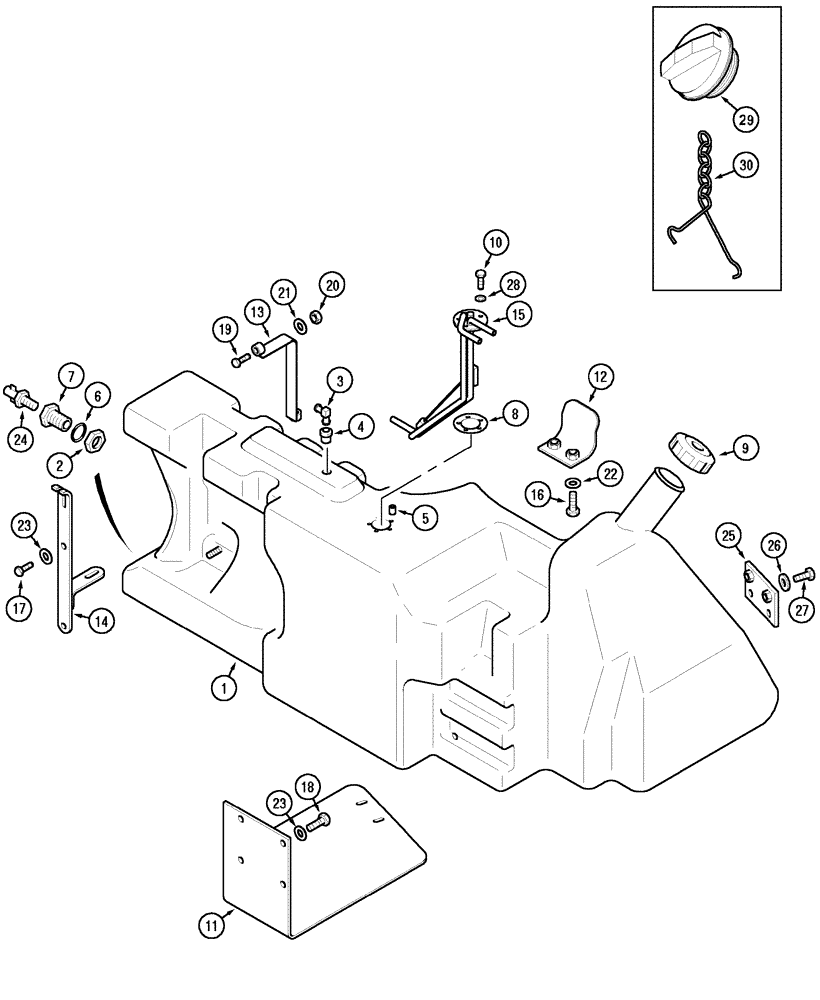

Запчасти Case IH MX170 (03-06) - FUEL TANK MOUNTINGS (10) - ENGINE

392502A1

FUEL TANK

Europe Only, Consists Of 1 - 7,9

1шт.

239341A2

TANK

N.A. Only, Consists Of 1 - 7,9

1шт.

292149A1

FUEL TANK

Japan Only, Consists Of 1 - 7,9

1шт.

1

NSS

NOT SOLD SEPARAT

Tank

1шт.

2

1251791C1

JAM NUT,3/4" - 16 LH Thread

1шт.

3

185331A1

FITTING

1шт.

4

185332A1

GROMMET

1шт.

7

1251790C2

FITTING

N.A. Only

1шт.

5

NSS

NOT SOLD SEPARAT

Insert

5шт.

6

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

7

251361A1

FITTING

Europe Only

1шт.

8

528359R4

GASKET,3.05mm Thk

1шт.

9

257349A1

FILLER CAP

1шт.

9b

277106A1

LOCKABLE FUEL CAP

Europe Only, With Key

1шт.

10

187515A1

SCREW

5шт.

11

239389A5

SUPPORT ASSY.

1шт.

12

239394A4

SUPPORT

1шт.

13

239381A2

SUPPORT

1шт.

14

239384A2

SUPPORT

1шт.

15

240717A5

FUEL GAUGE

Order Also 8

1шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

17

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.

18

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

19

811-8060

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 60mm, Cl 8.8

2шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

24

217-92

COCK

1/4

1шт.

24

217-103

COCK, DRAIN

1/4" PT

1шт.

25

239602A3

PLATE ASSY.

1шт.

26

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

27

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

28

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

29

277106A1

LOCKABLE FUEL CAP

2шт.

30

278374A1

CHAIN (AG)

5шт.
