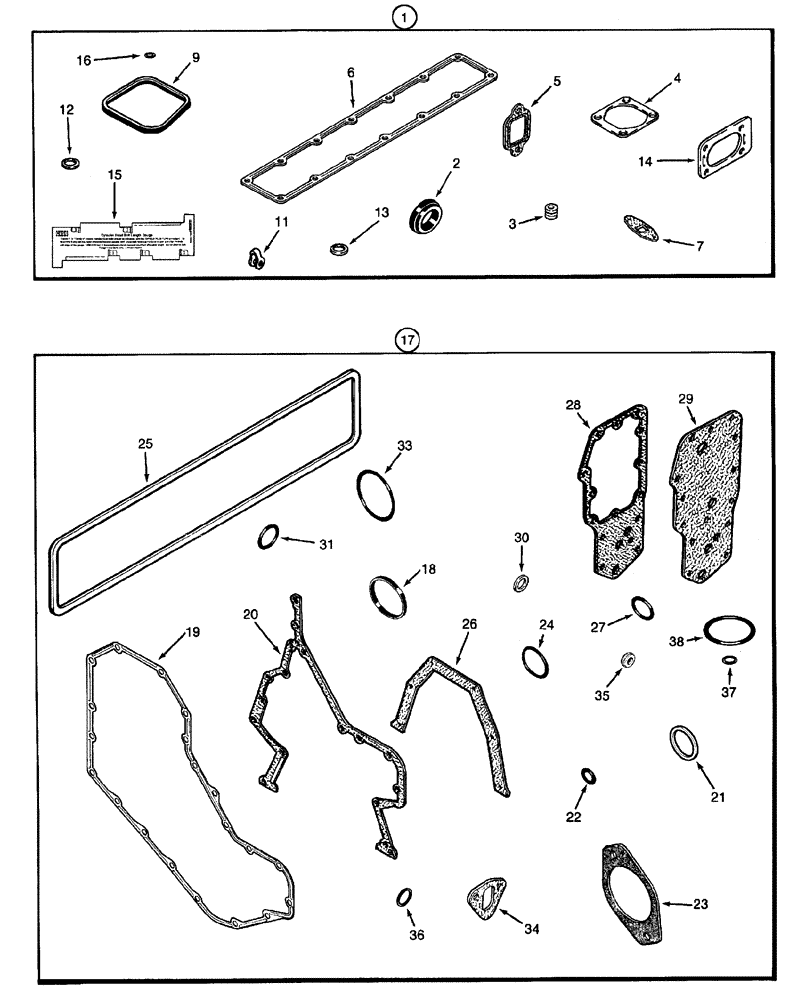

Запчасти Case IH MX170 (02-27) - GASKET KITS (10) - ENGINE

Valve Grind

1шт.

1

A77925

GASKET KIT

Consists Of 2 - 16

1шт.

2

J923331

GASKET

Thermostat

1шт.

3

J921640

SEAL

6шт.

4

J919369

GASKET,0.5mm Thk

1шт.

5

J927154

GASKET,0.38mm Thk

6шт.

6

J931347

GASKET

1шт.

7

J285747

GASKET

1шт.

9

J930906

GASKET

6шт.

11

J903380

SEAL

6шт.

12

J906659

SEAL

M7

6шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

M7

6шт.

14

J914856

GASKET,1.02mm Thk

7 mm

1шт.

15

J823921

GAUGE

7 mm

1шт.

16

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Cylinder Block

6шт.

17

A77868

SEAL PACKAGE

Consists Of 18 - 38

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

19

J918673

GASKET,1.02mm Thk

1шт.

20

J931351

GASKET

1шт.

21

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

22

J913994

O-RING

1шт.

23

J929751

GASKET

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

25

J928832

GASKET

1шт.

26

J928493

GASKET

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

28

J942914

GASKET

1шт.

29

J929792

GASKET,1.2mm Thk

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING , 158 mm ID

1шт.

34

J931059

GASKET

1шт.

35

J928759

SEALING WASHER

6шт.

36

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

37

J929457

O-RING

23/32 ID x 7/64

1шт.

38

J935032

SEAL

1шт.
