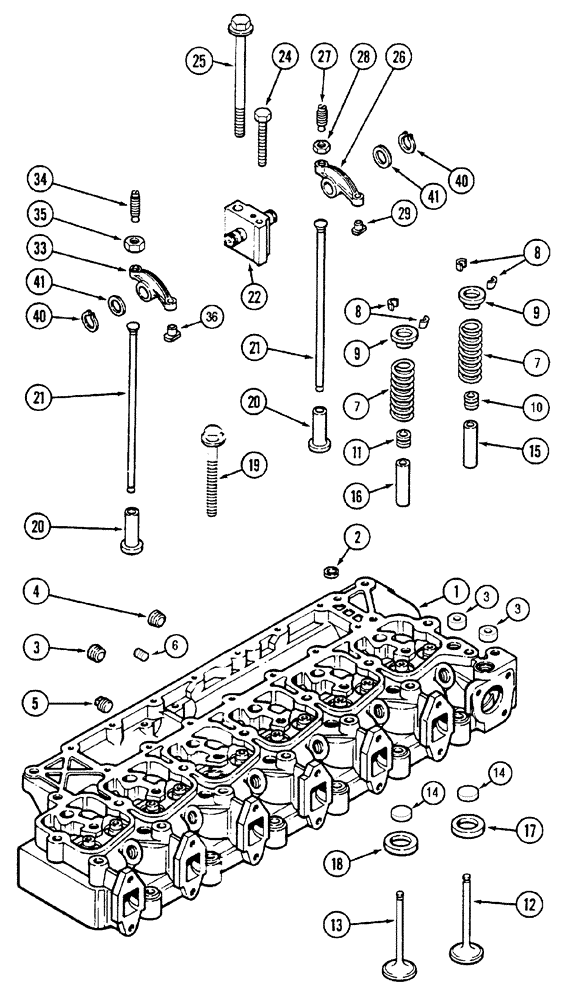

Запчасти Case IH MX170 (02-21) - VALVE MECHANISM (10) - ENGINE

J934769

HEAD (CYLINDER)

With Valves, Consists Of 1 - 13

1шт.

1

J934746

HEAD (CYLINDER)

Includes 2

1шт.

1

87430145

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

1

87430146

CORE-CYLINDER HEAD

Return Part Number

1шт.

2

A77783

PLUG

21 mm OD

5шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

5

A77505

PLUG

3/4 PT

1шт.

6

A77428

PLUG

1/4 PT, Coolant

1шт.

7

J926700

VALVE SPRING

12шт.

8

CASJ900250

RETAINER

24шт.

9

J900299

RETAINER

12шт.

10

J921640

SEAL

Intake

6шт.

11

J921640

SEAL

Exhaust

6шт.

12

J920867

VALVE

Intake

6шт.

13

J920868

VALVE

Exhaust

6шт.

14

J910412

WEAR PAD

12шт.

15

J904408

GUIDE

11 mm OD, Intake

6шт.

16

J904409

GUIDE

11 mm OD, Exhaust

6шт.

16

J906206

GUIDE

14 mm OD

12шт.

17

J906854

SEAT, VALVE

6шт.

18

J904105

SEAT, VALVE

6шт.

19

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

6шт.

19

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

14шт.

20

J931623

TAPPET

12шт.

21

J284377

PUSH ROD

12шт.

22

J922488

SUPPORT

6шт.

24

J901221

BOLT

M8 x 75

6шт.

25

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

6шт.

26

J910811

ROCKER

Intake, Includes 27,28,29

6шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

3/8 x 40 mm

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

1шт.

29

NSS

NOT SOLD SEPARAT

Insert

1шт.

33

J910810

ROCKER

Exhaust, Includes 34,35,36

1шт.

34

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

3/8 x 40 mm

1шт.

35

425-116

NUT,3/8" - 24, Gr 5

1шт.

36

NSS

NOT SOLD SEPARAT

Insert

1шт.

40

J900242

SNAP RING

2шт.

41

J900245

WASHER

2шт.

A77889

SEAL PACKAGE

Seals, Standard

1шт.

A77890

SEAL PACKAGE

Seals

1шт.
