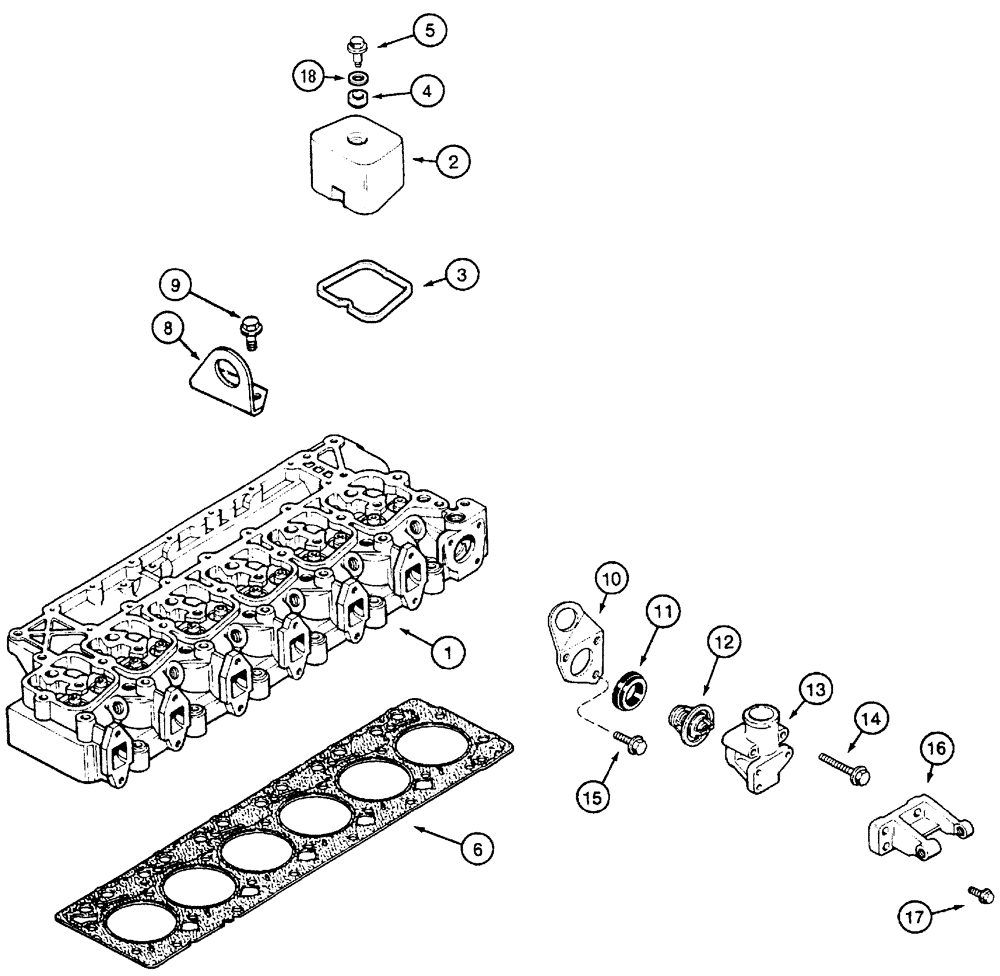

Запчасти Case IH MX170 (02-20) - CYLINDER HEAD AND GASKETS (10) - ENGINE

1

REF

INSTRUCTION

Head, Cylinder, See Fig. 02-21

1шт.

2

J928404

COVER

6шт.

3

J930906

GASKET

6шт.

4

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

5

J907049

BOLT,Hex

M8 x 21

6шт.

6

J283335

GASKET,2.32mm Thk

Standard

1шт.

6

J283337

GASKET,2.24mm Thk

0,25 mm, Oversize 0.25 mm

1шт.

6

J283002

GASKET

0,50 mm, Oversize 0.50 mm

1шт.

8

J917599

SUPPORT

Rear

1шт.

9

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

2шт.

10

J903757

BRACKET

Front

1шт.

A77736

THERMOSTAT

Thermostat, Consists Of 11,12

1шт.

11

J923331

GASKET

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

13

J914409

HOUSING

Thermostat

1шт.

14

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

16

J923387

SUPPORT

Alternator

1шт.

17

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

6шт.
