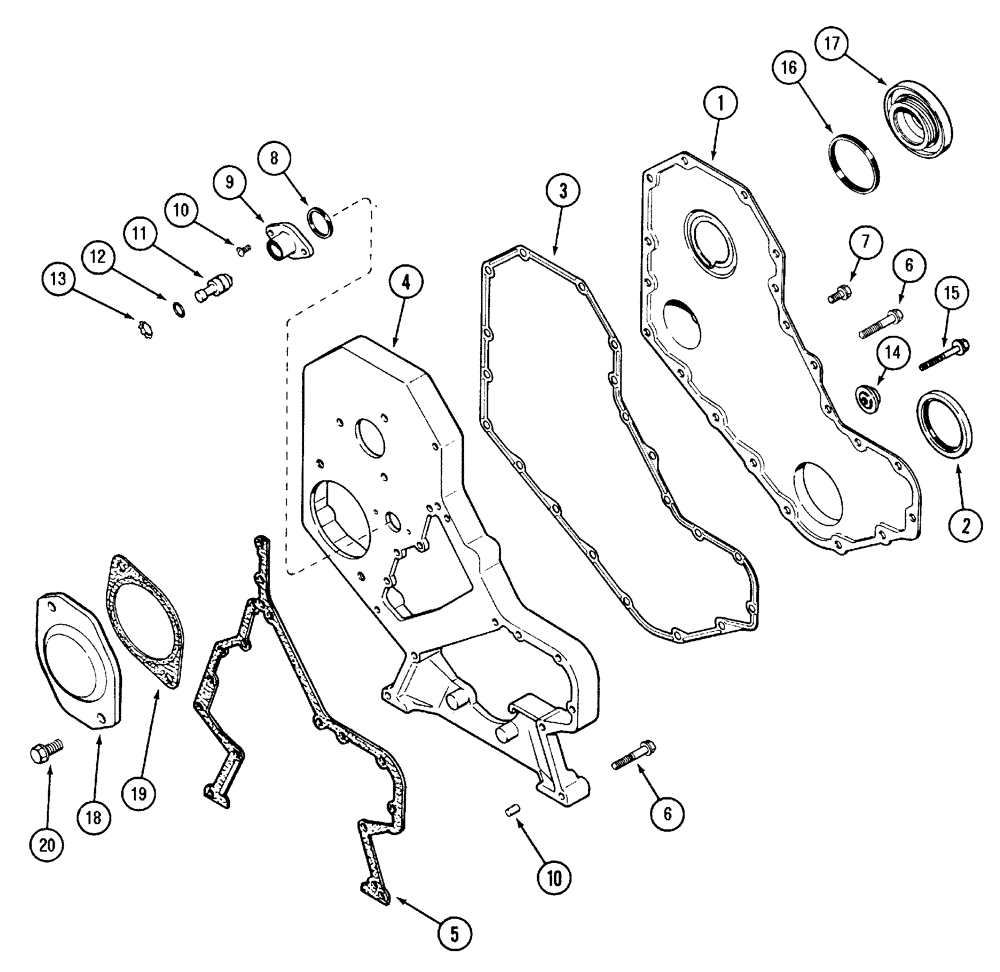

Запчасти Case IH MX170 (02-14) - CYLINDER BLOCK FRONT COVER (10) - ENGINE

1

J935581

COVER

Gear, Front

1шт.

2

J933261

SHIELD

Crankshaft, Front, Order A77889

1шт.

A77889

SEAL PACKAGE

Seals

1шт.

3

J918673

GASKET,1.02mm Thk

Cover, Front

1шт.

4

J936257

HOUSING

1шт.

5

J931351

GASKET

Housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

M8 x 16

13шт.

8

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

9

J919683

HOUSING

1шт.

10

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

11

J903924

PIN,18.87mm OD x 55mm L

1шт.

12

J913994

O-RING

1шт.

13

100-2587

SNAP RING,0.875", Int, #87

1шт.

14

J912772

RETAINER

1шт.

15

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

17

J903463

PLUG,M63 x 5

Front

1шт.

18

J914868

COVER

1шт.

19

J929751

GASKET

1шт.

20

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.
