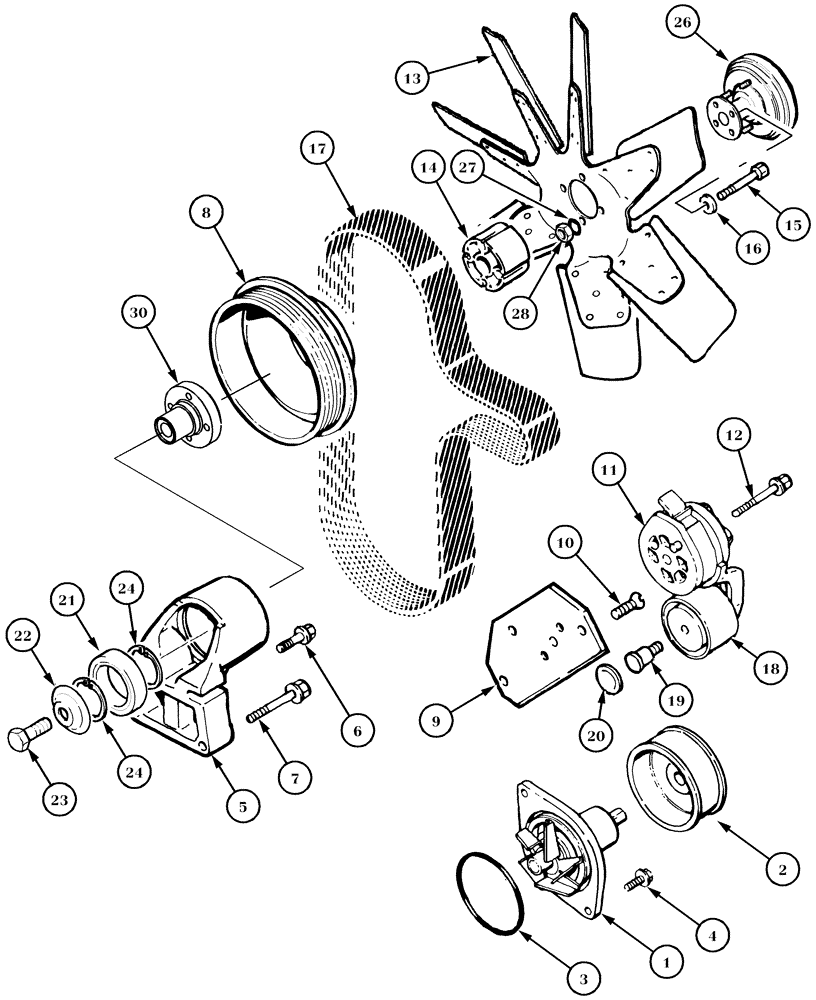

Запчасти Case IH MX170 (02-13) - WATER PUMP AND FAN (10) - ENGINE

J802970

PUMP, WATER

Consists Of 1,2,29

1шт.

J286278R

REMAN-WATER PUMP

MX150, MX170

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump Assy

1шт.

2

NSS

NOT SOLD SEPARAT

1:1,35, Pulley

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

87428288

BEARING HOUSING

Inc. 21 - 24,30

1шт.

6

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

7

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

2шт.

8

J914459

PULLEY

1:1,35, Fan

1шт.

9

J925198

SUPPORT

1шт.

10

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

10

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

11

J936203

BELT TENSIONER

1шт.

12

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

13

194518A2

FAN,7 Blades, 609.3mm OD

1шт.

13

225882A2

FAN

With Front P.T.O. and Front Hitch, Europe Only

1шт.

14

283778A1

SPACER

27/28 mm

1шт.

15

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

15

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

With Front PTO and Front Hitch, Europe Only

4шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

17

J911562

V-BELT,27.92mm W x 1460.5mm L, 8 Ribs

1шт.

A77817

KIT

Consists Of 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

Pulley

1шт.

19

NSS

NOT SOLD SEPARAT

Bolt

1шт.

20

NSS

NOT SOLD SEPARAT

Seal

1шт.

21

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

22

J923044

RETAINER

1шт.

23

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

24

100-21250

SNAP RING,2.50", Int, #250

2шт.

26

283132A1

DRIVE

1шт.

27

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

29

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Not Illustrated

1шт.

30

J911924

HUB

1шт.
