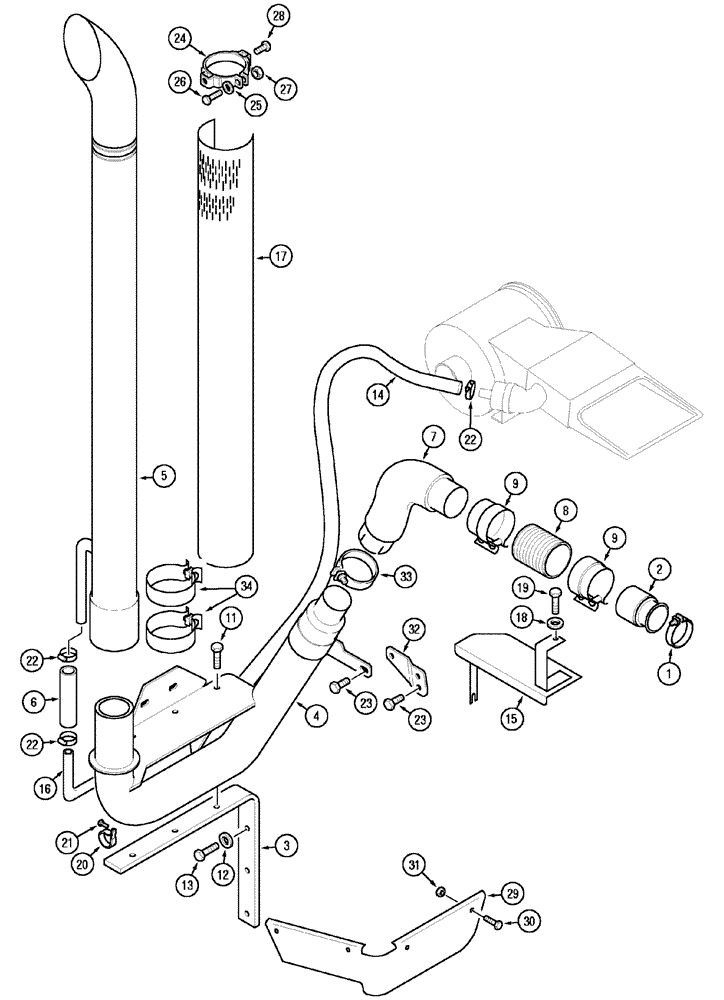

Запчасти Case IH MX170 (02-12) - VERTICAL EXHAUST (10) - ENGINE

1

A170467

CLAMP,72mm ID

1шт.

2

196342A1

ADAPTER

1шт.

3

199326A1

SUPPORT

1шт.

4

252530A2

PIPE

1шт.

5

220159A2

MUFFLER,Aspirated

PIPE, EXHAUST , With Aspirator

1шт.

6

184968A1

HOSE

With Aspirator

1шт.

7

247580A2

EXHAUST SYSTEM PIPE,290, 230 mm Length

1шт.

8

195773A2

PIPE

1шт.

9

197008A1

CLAMP,90.48mm ID

2шт.

11

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

5шт.

12

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

13

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

14

239875A1

HOSE,31.75mm ID x 1600mm L, SAE 20R4

With Aspirator

1шт.

15

224832A5

GUARD

1шт.

16

310520A1

TUBE

With Aspirator

1шт.

17

222763A2

GUARD

Europe Only

1шт.

17

319989A1

GUARD

Optional, Chrome, Europe Only

1шт.

18

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

19

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

20

515-27317

CLAMP,1 1/4", 5/16" Bolt

With Aspirator

2шт.

21

905-8016

BOLT,Hex Flg, M8 x 16mm

With Aspirator

2шт.

22

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

With Aspirator

4шт.

23

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

3шт.

24

124420A1

CLAMP

Europe Only

2шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

26

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

28

243675A1

FLANGE BOLT

2 x 12 mm

4шт.

29

244805A3

PANEL

Lower Right

1шт.

30

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

4шт.

31

96900C1

SPRING NUT,U, #10-16, Panel type

4шт.

32

254539A1

SUPPORT

1шт.

33

180300A1

CLAMP,88.9mm

1шт.

34

A173381

CLAMP,117.7mm ID

1шт.
