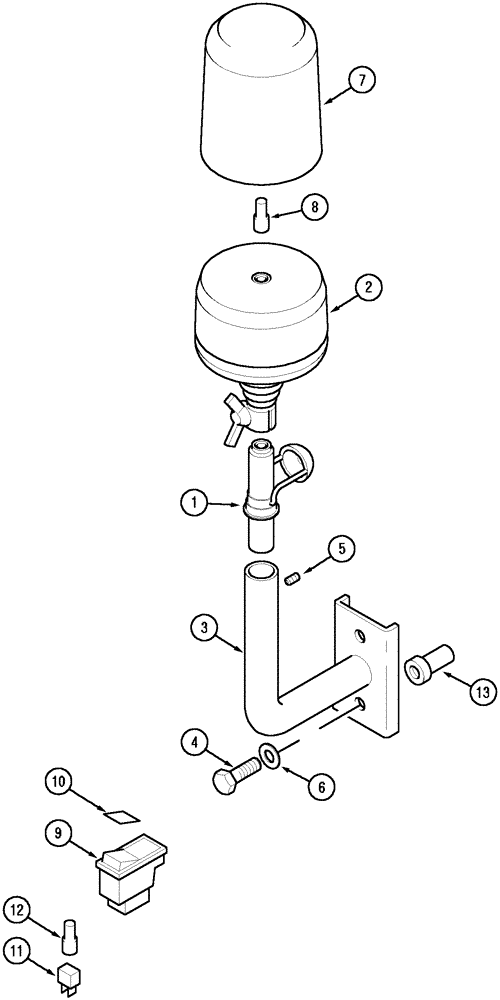

Запчасти Case IH MX170 (04-29) - ROTATING BEACON AND SUPPORT (55) - ELECTRICAL SYSTEMS

Europe Only

1шт.

1

244106A1

ELEC CONNECTOR

1шт.

2

175048A1

BEACON

Includes 7,8

1шт.

3

189867A1

SUPPORT ASSY.

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

877-1066

SET SCREW,M6 x 6mm

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

7

192809A1

LENS

1шт.

8

3125705R1

BULB

12V/55W

1шт.

9

194112A1

SWITCH ASSY

Includes 10 - 12

1шт.

10

1983276C1

SYMBOLS

SYMBOL

1шт.

11

134608A1

LAMP SOCKET

Includes 12

1шт.

12

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

13

P35448

RIVET

M8

2шт.
