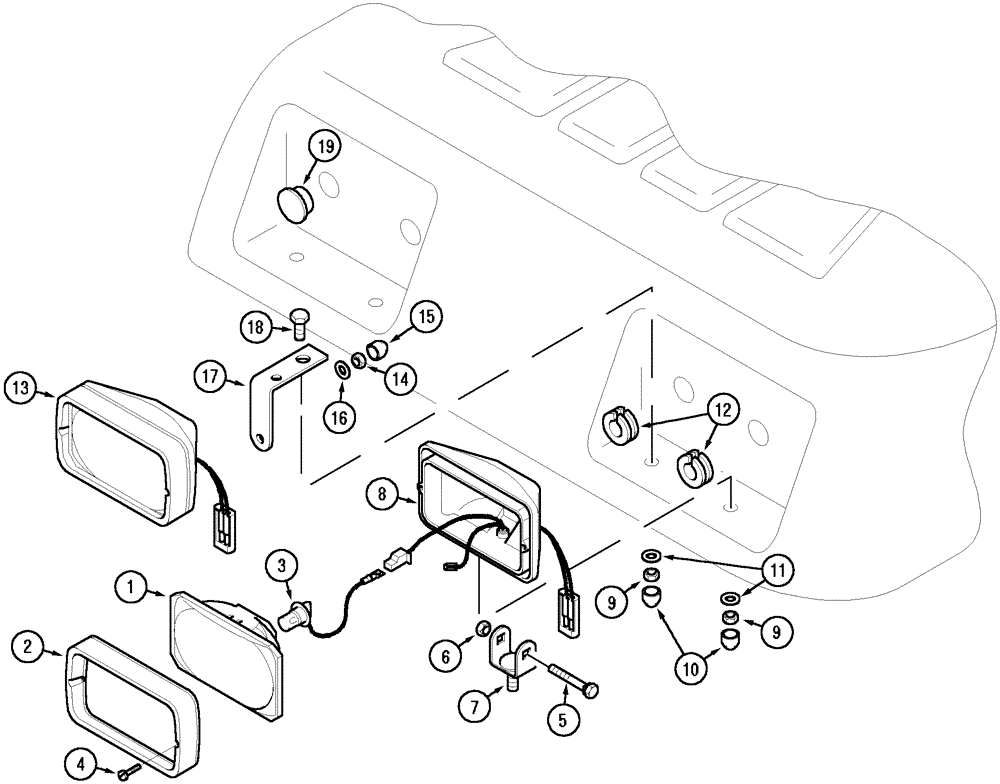

Запчасти Case IH MX170 (04-21) - FRONT WORKLIGHTS - CAB ROOF (55) - ELECTRICAL SYSTEMS

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Front, Consists Of 1 - 8

2шт.

1

276498A1

LENS

1шт.

2

1964806C1

BEZEL

1шт.

3

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

4

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

5

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

6

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

7

A187915

BRACKET

1шт.

8

NSS

NOT SOLD SEPARAT

Base

1шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

3221520R1

CAP

2шт.

10

357874A1

CAP

M10, ISO, N.A. Only

2шт.

12

96901C1

GROMMET

Headlight

4шт.

13

248915A1

HEADLIGHT

Front, With Front Hitch, Left Traffic

2шт.

13

248914A1

HEADLIGHT

Front, With Front Hitch, Right Traffic

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

3221520R1

CAP

2шт.

15

357874A1

CAP

M10, ISO, N.A. Only

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

17

302939A1

SUPPORT

Europe Only

2шт.

18

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Not Illustrated

2шт.

Without Worklights

1шт.

19

353-411

PLUG,Dome, 1.000" hole, Nylon

If used, 13

4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
