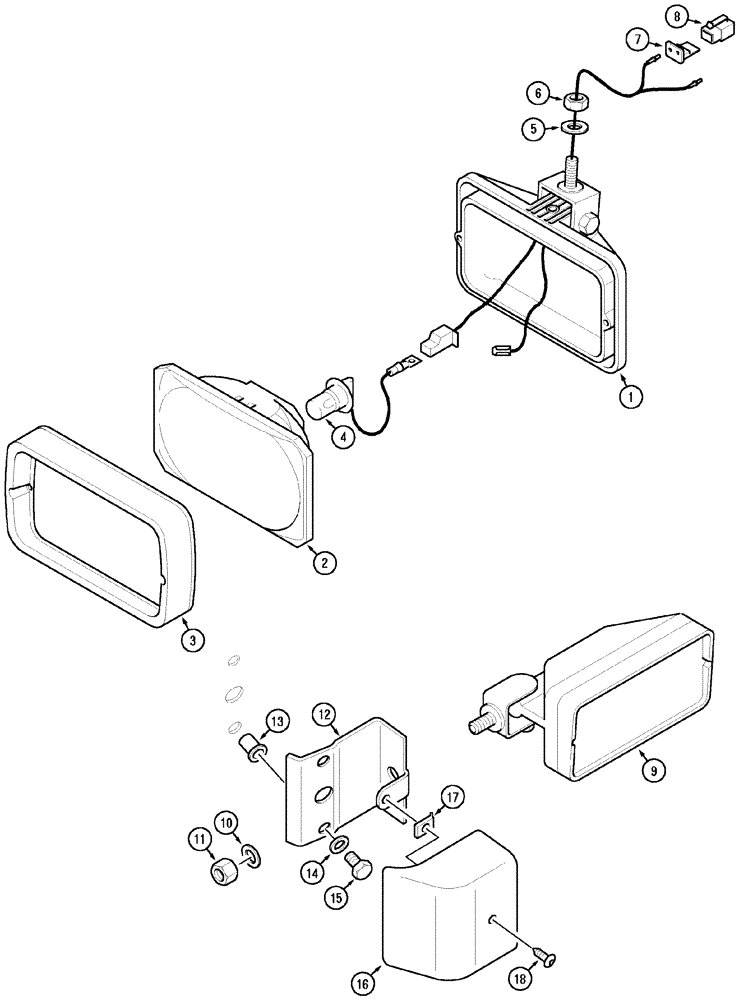

Запчасти Case IH MX170 (04-20) - WORKLIGHT (55) - ELECTRICAL SYSTEMS

Front-Lower

1шт.

239758A1

HEADLIGHT

Consists Of 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

276498A1

LENS

1шт.

3

1964806C1

BEZEL

1шт.

4

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

7

222848A1

ELEC CONNECTOR

1шт.

8

222136A1

ELEC CONNECTOR,Male, 2 Pin

Lower, N.A. Only

1шт.

9

275333A1

LAMP, WORK

LIGHT, WORK , Right, Not Illustrated

1шт.

9

275334A1

LAMP, WORK

LIGHT, WORK , Left

1шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

12

222247A1

LARGE PLATE

PLATE, LARGE

2шт.

13

F35448

RIVET,8mm OD x 18mm L

8 mm

4шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

14

256402A1

SPECIAL WASHER,9mm ID x 16mm OD x 1.6mm Thk

9 x 17 x 1,6 mm

4шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

16

222248A2

COVER

2шт.

17

131-606

SPRING NUT,Tinn, U, #10

2шт.

18

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
