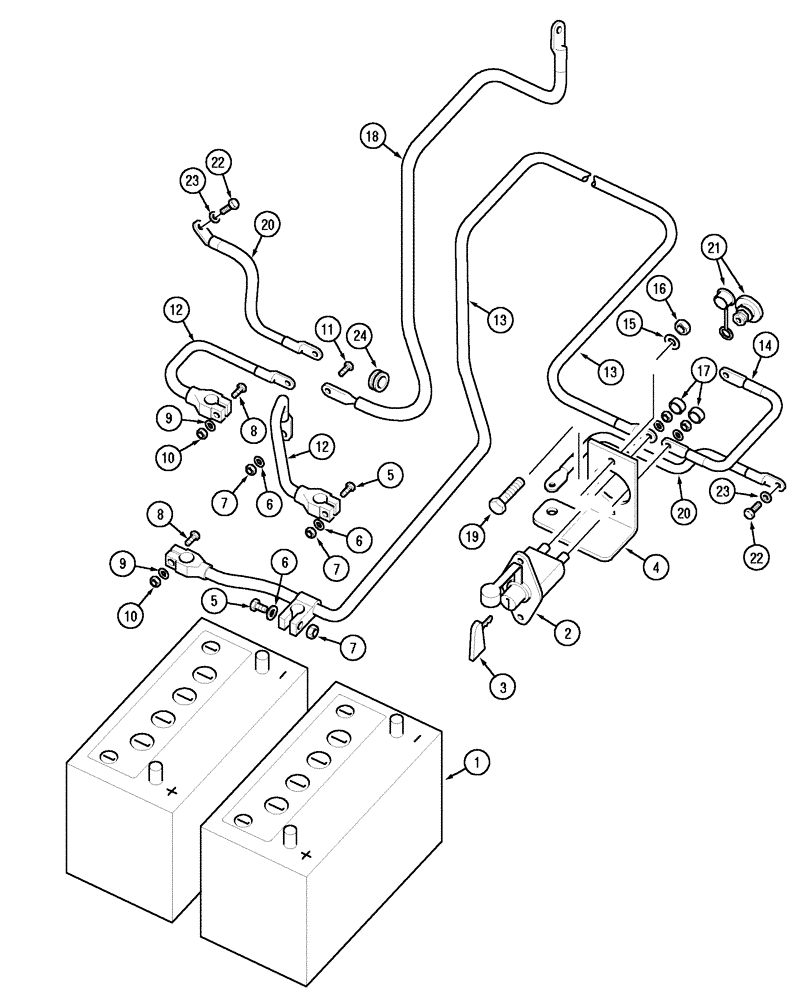

Запчасти Case IH MX170 (04-12) - BATTERY AND CABLES (55) - ELECTRICAL SYSTEMS

1

1502296C1

BATTERY, DRY

BATTERY DRY 12V, Charged, Europe Only

1шт.

1

BMF31G

BATTERY, DRY

BATTERY DRY 12V, Charged, N.A. Only

1шт.

2

1983240C1

SWITCH

Europe Only, Includes 3, Disconnect

1шт.

3

1539005C1

IGNITION KEY

Europe Only, Use With 1983240C1

1шт.

4

220446A1

HOLDER

Europe Only

1шт.

5

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

6

892-11010

LOCK WASHER,M10

3шт.

7

829-1310

NUT,M10, Cl 10

3шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

829-1308

NUT,M8, Cl 10

2шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

12

183452A2

CABLE

-, Battery - Chassis

1шт.

13

183454A4

CABLE

Battery 2, Battery - Switch

1шт.

13

189183A3

CABLE

Battery 1, Battery - Starter

1шт.

14

220462A2

CABLE

+, Switch - Starter, Europe Only

1шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

N.A. Only

2шт.

15

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

Europe Only

2шт.

16

832-10406

NUT,M6 x 1, Cl 8

2шт.

17

3221520R1

CAP

1шт.

17

357874A1

CAP

M10, ISO, N.A. Only

1шт.

18

183453A2

CABLE

Bosch, Chassis - Starter, If So Equipped

1шт.

19

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

20

280053A2

CABLE

Nippondenso, Ground

2шт.

21

189579A1

STUD

1шт.

22

615-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

22

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

S/N JJA0091935 -

2шт.

23

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

S/N JJA0091935 -

2шт.

24

1533307C2

GROMMET

1шт.
