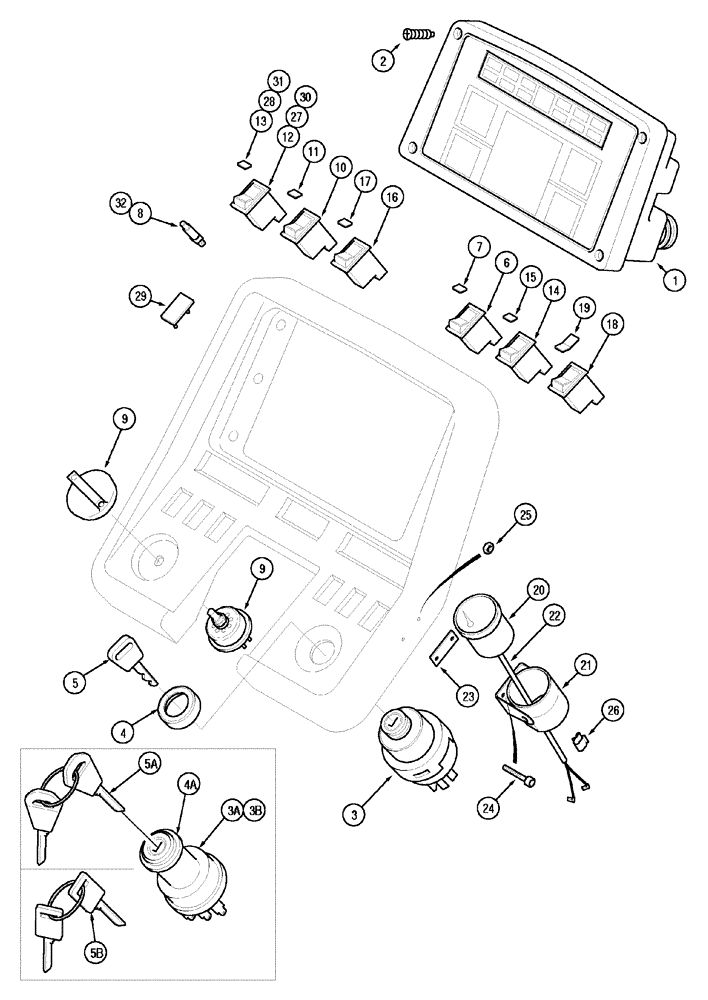

Запчасти Case IH MX170 (04-09) - INSTRUMENT PANEL (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Cluster, Instr., De-Luxe, See Page(s) 4-43

1шт.

2

260-56516

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1"

No. 10 x 1

4шт.

3

D134737

IGNITION SWITCH

Includes 4,5

1шт.

3a

282775A1

IGNITION SWITCH

Includes 4A,5A

1шт.

3b

307871A1

CONNECTION,ELECTRIC

Includes 4A,5B

1шт.

4

A77314

NUT

1шт.

4a

NSS

NOT SOLD SEPARAT

Nut

1шт.

5

A77313

SET OF 2 KEYS

Set of 2 Metal Keys Without Padding, Use With 3

1шт.

5a

1964831C2

IGNITION KEY

Set of 2 Padded Keys, Use With 3A

1шт.

5b

307852A1

SET OF 2 KEYS

Set of 2 Metal Keys Without Padding, Use With 3B

1шт.

6

245908C1

FLASHER SWITCH

Hazard Warning

1шт.

7

1983283C1

SYMBOLS

SYMBOL Red

1шт.

8

134608A1

LAMP SOCKET

Includes Bulb

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

9

197168A1

SWITCH

Headlight, 3 Position, Europe Only

1шт.

9

177249A1

ASSEMBLY

Headlight, 4 Position, N.A. Only

1шт.

194109A1

SWITCH

Worklight, Consists Of 10,11

1шт.

10

NSS

NOT SOLD SEPARAT

Switch

1шт.

11

NSS

NOT SOLD SEPARAT

Symbol, Yellow

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

194111A1

SWITCH ASSY

Thermostart, Europe Only, Consists Of 12,13

1шт.

12

3231782R1

SWITCH

1шт.

13

183042A1

SYMBOLS

SYMBOL Black

1шт.

194112A1

SWITCH ASSY

Rotating Beacon, Europe Only, Consists Of 14,15

1шт.

14

245909C1

SWITCH ASSY

1шт.

15

1983276C1

SYMBOLS

SYMBOL Green

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

194113A1

SWITCH ASSY

Foglight, Rear, Europe Only, Consists Of 8,16,17

1шт.

16

NSS

NOT SOLD SEPARAT

Switch

1шт.

17

NSS

NOT SOLD SEPARAT

Lens, Green, Europe Only

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

194115A3

SWITCH

Roof Lights, With Front Hitch, Europe Only, Consists Of 18,19

1шт.

18

225024A2

LIGHT SWITCH

Europe Only

1шт.

19

190525A3

SYMBOLS

SYMBOL Green, Europe Only

1шт.

20

1533569C1

ELECTRICAL GAUGE

Pneumatic Trailer Brake, Europe Only

1шт.

21

1533571C1

HOUSING

Europe Only

1шт.

22

1533573C1

HARNESS

Europe Only

1шт.

23

1533402C1

PLATE

Europe Only

1шт.

24

905917R1

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4 x 12 mm

2шт.

25

824-1404

NUT,M4, Cl 5

2шт.

26

1533586C1

CLAMP

Europe Only

1шт.

194110A1

SWITCH

Ether Start, N.A. Only, Consists Of 27,28

1шт.

27

3231782R1

SWITCH

1шт.

28

1983275C1

SYMBOLS

SYMBOL Order 194110A1

1шт.

29

245918C1

LENS

Blanking rocker switch

1шт.

194109A1

SWITCH

Worklight, N.A. Only, Consists Of 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

Switch

1шт.

31

NSS

NOT SOLD SEPARAT

Lens

1шт.

32

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.
