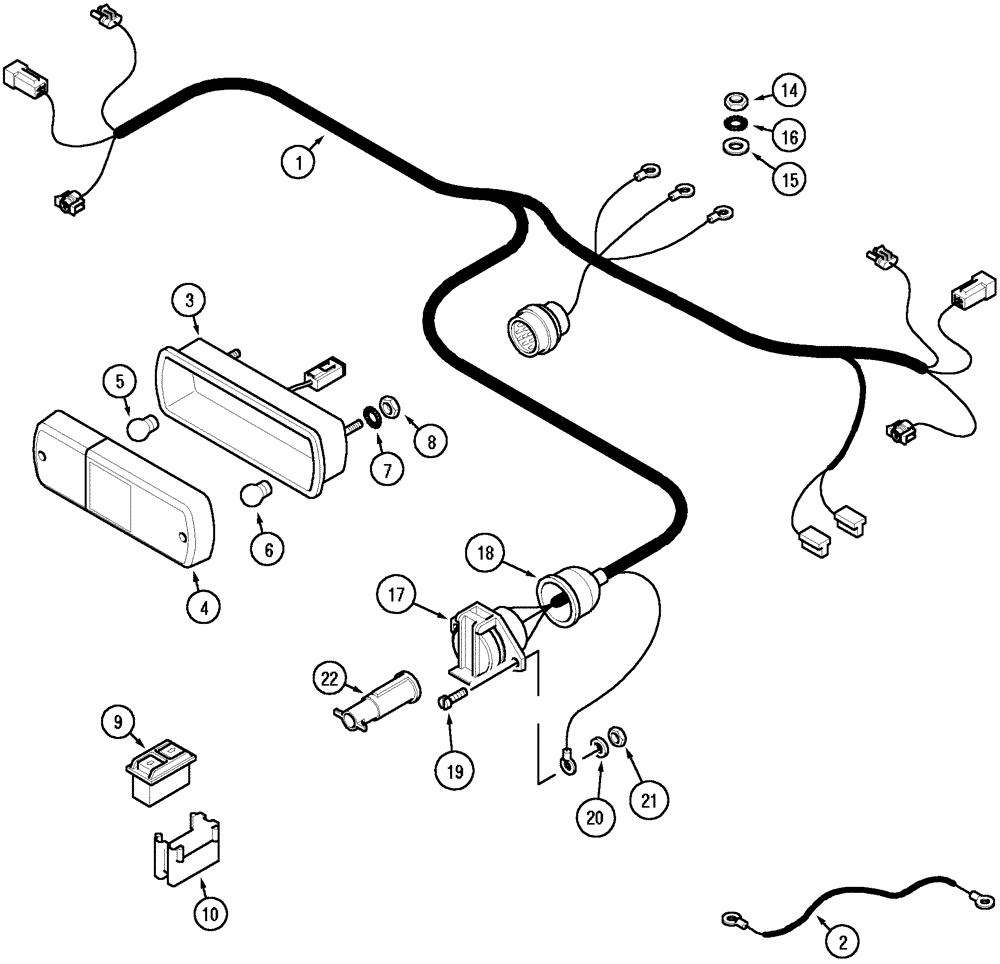

Запчасти Case IH MX170 (04-08) - HARNESS - REAR FENDER (55) - ELECTRICAL SYSTEMS

N.A. Only

1шт.

1

243127A2

HARNESS

Serial No. - JJE0981279

1шт.

1

341266A2

HARNESS

Serial No. JJE0981280 -

1шт.

2

192935A1

CABLE

Ground

1шт.

3

177239A2

LAMP, TAIL

LIGHT, TAIL , Combination, Right, Includes 4 - 6

1шт.

3

259816A1

LAMP, TAIL,12V, 21W, Amber/Red

LIGHT, TAIL , Combination, Left, Includes 4 - 6

1шт.

4

187140A1

LENS

1шт.

5

1094366R1

BULB

12V, 21w, Turn Signal

1шт.

6

3131234R1

BULB,P25-2, 12V, 5W

Stop - Tail Lights

1шт.

7

893-11006

LOCK WASHER,Ext Tooth, M6

4шт.

8

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

9

220415A2

SWITCH ASSY

Hitch, Remote Control

2шт.

10

220416A2

CLAMP

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

16

892-11008

LOCK WASHER,8mm ID

1шт.

17

121645C1

MULTIPOLE CONNECTOR,7 Pin

1шт.

18

481849C1

PROTECTIVE COVER

1шт.

19

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

21

825-1408

NUT,M8, Cl 8

2шт.

22

121646C1

TERMINAL CONNECTOR,Female

7 pin

1шт.

23

194109A1

SWITCH

Worklight, Not Illustrated, See Page(s) 4-41

1шт.
