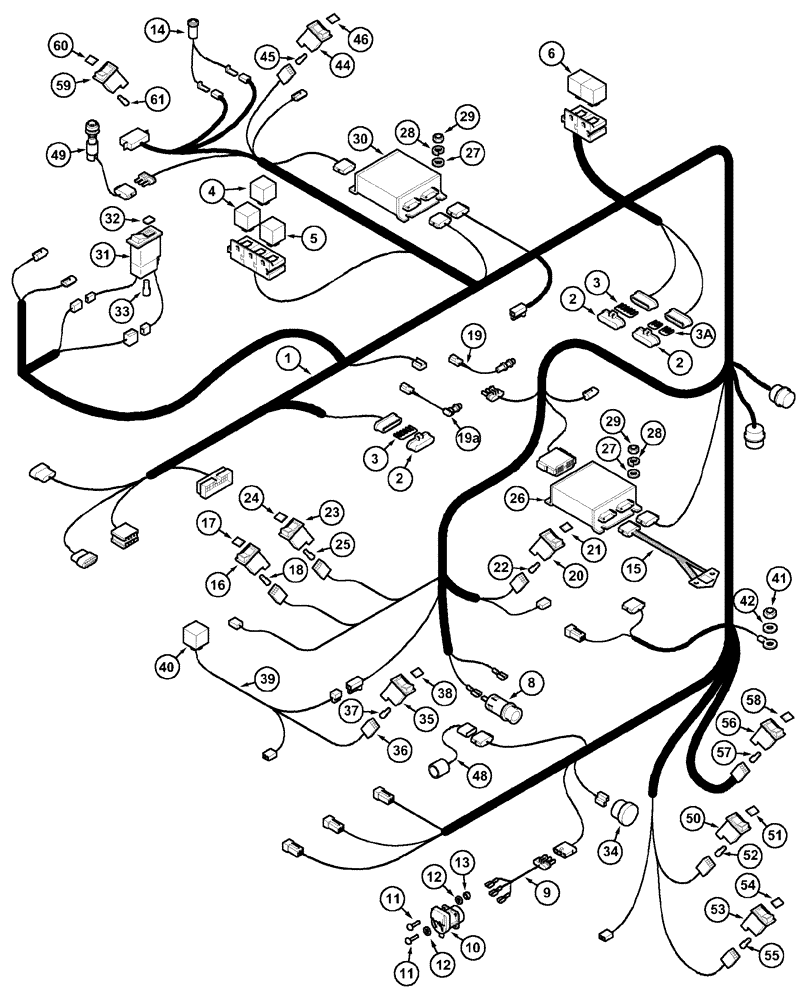

Запчасти Case IH MX170 (04-04) - HARNESS - CONTROL CONSOLE (55) - ELECTRICAL SYSTEMS

1

296842A5

HARNESS

Wheel Slip, 4WD, Diff Lock, Draft Control

1шт.

1

301926A3

HARNESS

Position, N.A. Only, Version With Cab - Without Hitch

1шт.

1

369947A3

HARNESS

16 speed, Used With, Suspension, Axle

1шт.

1

355493A3

HARNESS

Version Without Hitch

1шт.

1

369948A3

HARNESS

16 speed

1шт.

2

187308A1

CAP

3шт.

3

187309A1

BAR

6 Pin

1шт.

3b

194976A1

BAR

3 Pin

2шт.

4

384114A1

RELAY

20 amp, Solenoid

2шт.

5

384114A1

RELAY

20 amp, 4WD

1шт.

6

384114A1

RELAY

20 amp, Brake

2шт.

8

371831A1

CIGAR LIGHTER

12 v

1шт.

9

227740A2

HARNESS

Europe Only

1шт.

9

227739A2

POWER SOCKET

N.A. Only

1шт.

10

1533880C1

SOCKET/RECEPTACLE

Europe Only

1шт.

11

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

4шт.

12

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

3.2 x 7 x 0.5 mm

4шт.

13

824-1403

NUT,M3, Cl 5

4шт.

14

183696A1

INDICATOR

1шт.

15

187614A3

DISPLAY

1шт.

276724A1

SWITCH

Diff Lock, Consists Of 16,17,18

1шт.

16

NSS

NOT SOLD SEPARAT

Switch

1шт.

17

1983274C1

SYMBOLS

1шт.

18

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

19

191126A1

LIMIT SWITCH

4th Speed, Lockout, Serial No. - JJE0982433

1шт.

19b

360813A1

SWITCH

Includes 188603A1, Serial No. JJE0982434 -

1шт.

188603A1

JAM NUT

M16

1шт.

20

194216A1

SWITCH

Wheel Slip, Includes 21,22

1шт.

21

NSS

NOT SOLD SEPARAT

Symbol

1шт.

22

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

276723A1

SWITCH

4WD, Consists Of 23,24,25

1шт.

23

1983638C1

FLASHER SWITCH

1шт.

24

1964651C1

SYMBOLS

1шт.

25

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

26

336138A1

MODULE

Wheel Slip, 4WD, Diff Lock, Draft Control

1шт.

26

336138A1R

REMAN ELECT CONTROL

MX150, MX170, Both CASE IH MAXXUM DIESEL TRACTOR, Wheel Slip, 4WD, Diff Lock, Draft Control (1/98-)

1шт.

26

336138A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

26

390473A1

CONTROL

Position, De-luxe. Requires Programming.

1шт.

26

390473A1R

REMAN-MODULE

Module EDC, Requires Programming.

1шт.

26

390473A1C

CORE-MODULE

Return Number

1шт.

29

825-5146

SERRATED NUT,M6, Flg Ser

3шт.

30

296539A6

UNIT

P.T.O., Forward - Neutral - Reverse, Flash

1шт.

325377A2R

REMAN-PRINTED CIRCUI

MX150, MX170, Reman For New P/N 296539A6 & 325377A2

1шт.

325377A2C

CORE-PRINTED CIRCUIT

Return Number

1шт.

194214A3

SWITCH

Hitch Control, Consists Of 31,32,33

1шт.

31

NSS

NOT SOLD SEPARAT

Switch

1шт.

32

NSS

NOT SOLD SEPARAT

Symbol

1шт.

33

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

34

1546441C1

BUZZER

Park Brake

1шт.

35

1964649C1

SWITCH ASSY

With Latch, Includes 36,37

1шт.

36

134608A1

LAMP SOCKET

1шт.

37

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

38

1983273C1

SYMBOLS

Europe Only

1шт.

39

185209A1

HARNESS

Front P.T.O.

1шт.

40

384114A1

RELAY

20 amp, Front P.T.O.

1шт.

41

829-1406

NUT,Hex, M6 x 1, Cl 10.9

Ground

1шт.

42

892-11006

LOCK WASHER,M6

Ground

1шт.

22-824

CABLE TIE,3/16" x 7 1/4"

5шт.

297427A1

SWITCH

Consists Of 44 - 46

1шт.

44

NSS

NOT SOLD SEPARAT

Switch

1шт.

45

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

46

NSS

NOT SOLD SEPARAT

Switch Assy

1шт.

246905A2

HARNESS

Loader, Control, Not Illustrated

1шт.

47

225261A1

DIODE

1шт.

47

228174A1

DIODE

3 way

1шт.

48

296647A1

HARNESS

Implement, Status

1шт.

49

353862A1

SWITCH

P.T.O.

1шт.

50

377642A1

TOGGLE SWITCH

1шт.

51

333942A1

SYMBOLS

Suspension regulation ( Green )

1шт.

52

NSS

NOT SOLD SEPARAT

Bulb

1шт.

53

112078A1

TOGGLE SWITCH

1шт.

54

333941A1

SYMBOLS

Suspension up/down ( Black )

1шт.

55

NSS

NOT SOLD SEPARAT

Bulb

1шт.

367654A1

SWITCH ASSY

Ride Control, Europe Only, Consists Of 56 - 58

1шт.

56

NSS

NOT SOLD SEPARAT

Switch

1шт.

57

NSS

NOT SOLD SEPARAT

Lens

1шт.

58

NSS

NOT SOLD SEPARAT

Bulb

1шт.

337515A1

TOGGLE SWITCH

Auto P.T.O., Consists Of 59,60,61

1шт.

59

91956C1

SWITCH ASSY

1шт.

60

337531A1

DECAL

1шт.

61

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.
