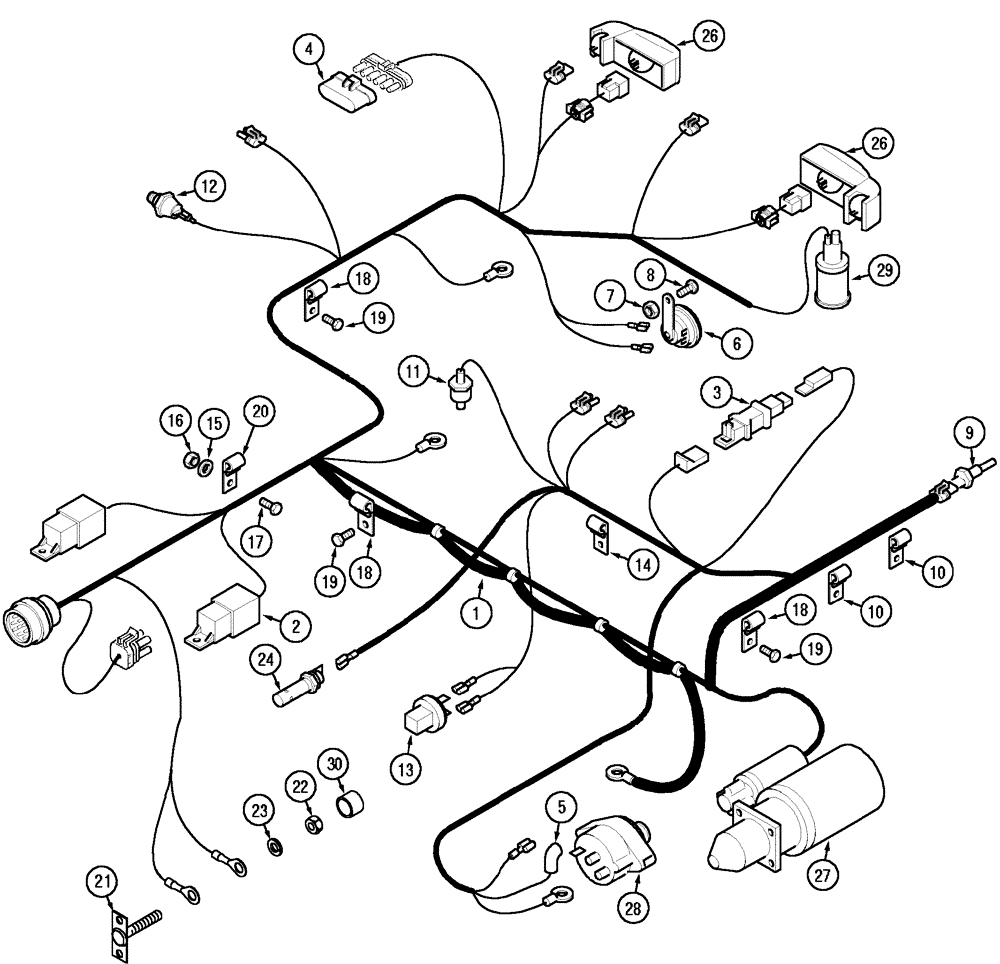

Запчасти Case IH MX170 (04-02) - HARNESS - ENGINE (55) - ELECTRICAL SYSTEMS

1

328285A1

HARNESS

Europe Only

1шт.

1

303516A1

HARNESS

Includes 2,3,4

1шт.

2

314451A1

RELAY

40 amp, Starter

2шт.

3

113699A1

RECTIFIER

1шт.

4

187308A1

CAP

1шт.

5

399470R1

BOOT

1шт.

6

237582A1

HORN

12V

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

615-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

9

143417A3

SENSOR

Coolant

1шт.

10

516-2295

CLAMP,J, 7/16" Insul, 5/16" Bolt

2шт.

11

243803A2

TEMPERATURE SENDER,1/2" - 14

Water Temp

1шт.

12

277016A1

PRESSURE SWITCH

Oil

1шт.

13

279492A1

RESTRICTION SWITCH

Air Filter

1шт.

14

516-23158

CLAMP,J, 11/16" Insul, 3/8" Bolt

1/2 x 5/8

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

18

229353A1

CLAMP

19,05 mm

3шт.

18b

229357A1

CLAMP

25,4 mm, Not Illustrated

1шт.

18c

229354A1

CLAMP,20.62mm ID, 12.7mm Bolt Hole, J Type

20,62 mm, Not Illustrated

1шт.

19

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

3шт.

20

516-22158

CLAMP,J, 11/16" Insul, 5/16" Bolt

1шт.

21

305945A1

SUPPORT

1шт.

See Figure 04-06

1шт.

22

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

23

892-11010

LOCK WASHER,M10

1шт.

24

A77616

GLOW PLUG

Thermostart

1шт.

26

REF

INSTRUCTION

Lamp, Head, See Fig. 04-18

2шт.

27

REF

INSTRUCTION

Starter Assy, See Fig.(s) 04-13, 04-14, 04-15

1шт.

28

REF

INSTRUCTION

Alternator, See Fig.(s) 04-16, 04-17

1шт.

29

REF

INSTRUCTION

Cartridge, Ether Start, N.A. Only, See Fig. 02-06

1шт.

B17503

LOCTITE

Sender

1шт.

B17503

LOCTITE

Water Temp

1шт.

30

3221520R1

CAP

1шт.

30

357874A1

CAP

M10, ISO, N.A. Only

1шт.
