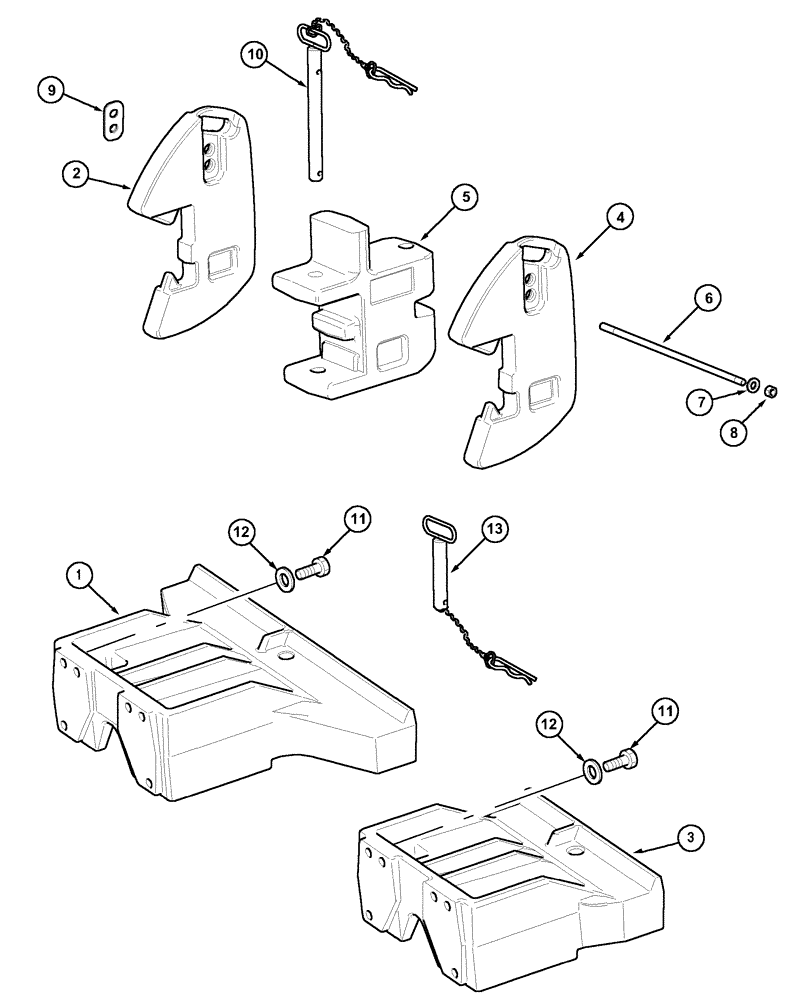

Запчасти Case IH MX170 (09-02) - FRONT WEIGHTS (39) - FRAMES AND BALLASTING

386937A1

SUPPORT

10 weights, Bracket, Weight, Consists Of 3,11,12

1шт.

386938A1

SUPPORT

16 weights, Bracket, Weight, Consists Of 1,11,12

1шт.

1

366847A1

SUPPORT

Weight 16

1шт.

1b

359325A1

SUPPORT

Weight 16, N.A. Only

1шт.

2

405846A3

WEIGHT

45kg (100lb)

16шт.

3

366845A1

SUPPORT

Weight 10

1шт.

3b

359323A1

SUPPORT

Weight 16, N.A. Only

1шт.

4

224383A2

WEIGHT

45kg (100lb)

10шт.

5

324472A5

CLEVIS

107kg (236lb)

1шт.

6

367765A1

THREADED ROD

Weight 16

1шт.

6

324475A1

TRUSS ROD

600 mm, Weight 10

1шт.

7

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

8

829-1416

NUT,M16, Cl 10

1шт.

9

229483A1

RETAINER

1шт.

10

368197A1

CLEVIS PIN,31mm OD x 337mm L

Zinc

1шт.

11

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

6шт.

11b

828-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

N.A. Only

6шт.

12

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

6шт.

12b

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, N.A. Only

6шт.

13

394088A1

CLEVIS PIN

Zinc, Europe Only

1шт.
