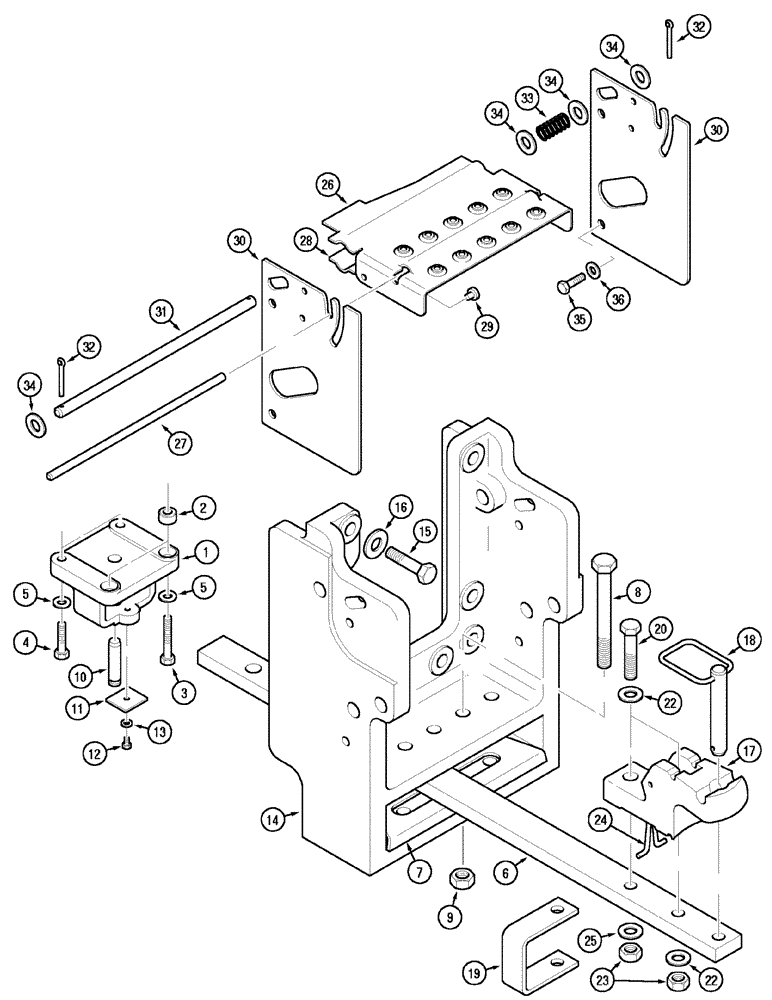

Запчасти Case IH MX170 (09-70) - DRAWBAR HAMMERSTRAP (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

232755A2

HITCH BRACKET

1шт.

2

1331722C1

LARGE PIN

PIN, LARGE

2шт.

3

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

4

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

5

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

6

325815A1

DRAWBAR

1шт.

7

143821A4

PLATE ASSY.

1шт.

8

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

2шт.

9

832-10416

NUT,M16 x 2, Cl 8

2шт.

10

1982103C1

PIN,34.87mm OD x 140mm L

1шт.

11

67828C1

RETAINER

1шт.

12

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

13

892-11012

LOCK WASHER,M12

1шт.

14

229006A2

SUPPORT

1шт.

15

828-16230

BOLT,Hex, M16 x 2 x 230mm, Cl 10.9

M16 x 230, 10.9

8шт.

16

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

17

232615A2

DRAWBAR

1шт.

18

232616A2

HITCH PIN

1шт.

19

233790A1

SUPPORT ASSY.

1шт.

20

827-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

2шт.

22

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

3шт.

23

829-1420

NUT,M20, Cl 10

2шт.

24

232617A1

LATCH

1шт.

25

896-16020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm

1шт.

232114A3

SHIELD

P.T.O., Includes 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

Shield

1шт.

27

NSS

NOT SOLD SEPARAT

Rod

1шт.

28

NSS

NOT SOLD SEPARAT

Bracket

1шт.

29

NSS

NOT SOLD SEPARAT

Pin

1шт.

30

232192A2

PLATE ASSY.

2шт.

31

179658A2

SUPPORT

1шт.

32

733-5040

COTTER PIN,M5 x 40

2шт.

33

179657A2

SPRING

1шт.

34

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

34

895-15016

WASHER,M16 x 34 x 3

4шт.

35

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

4шт.

36

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.
