(02-01) - ENGINES

Запчасти Case IH MX170 (02-01) - ENGINES (10) - ENGINE

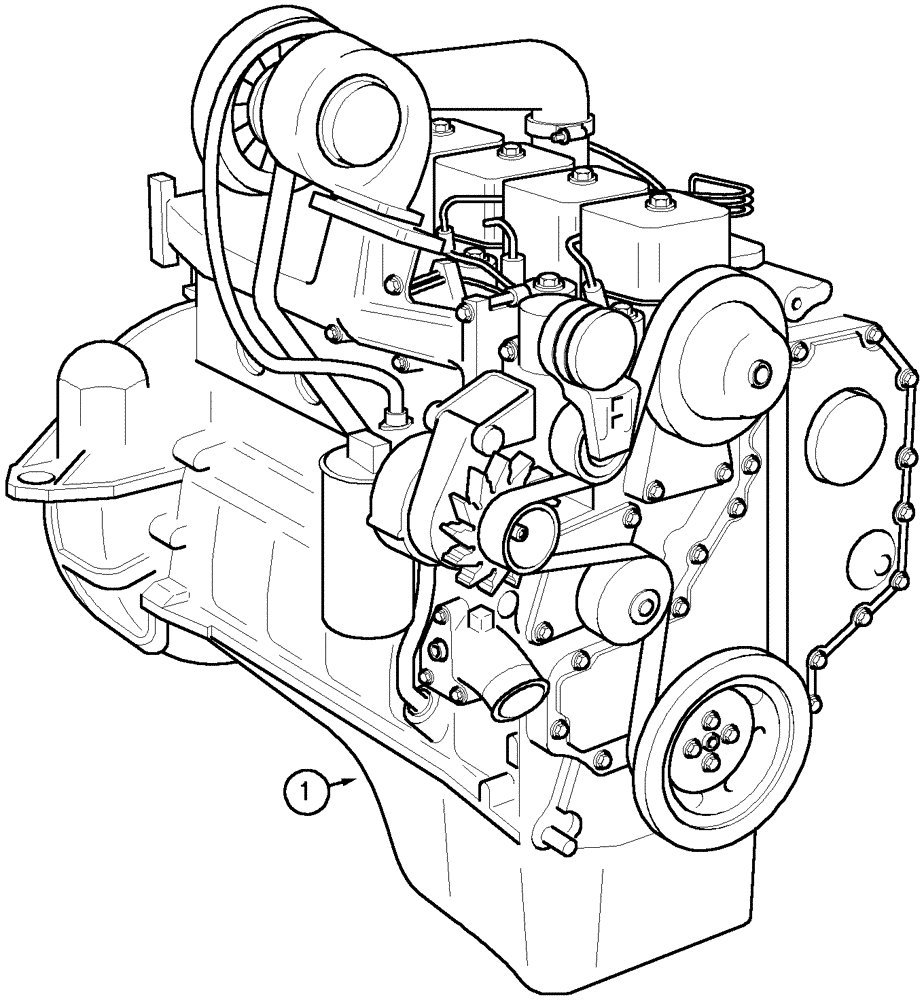

Схема запчастей Case IH MX170 - (02-01) - ENGINES (10) - ENGINE
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

6T-590

1шт.

246148A2

BASIC ENGINE

Basic, see Fig. 02-23; see Note.

1шт.

246148A2R

REMAN-BASIC ENGINE

MX100, MX110, MX120, MX135, All w/ 6T-590, Tier 1 Engines

1шт.

246148A2C

CORE-BASIC ENGINE

Return Part Number

1шт.

J933645

SKELETON ENGINE

Short Block

1шт.

JR933645

REMAN-SHORT ENGINE

1шт.

JC933645

CORE-ENGINE

Return Part Number

1шт.
