Запчасти Case IH MX170 (09-69) - DRAWBAR HAMMERSTRAP (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

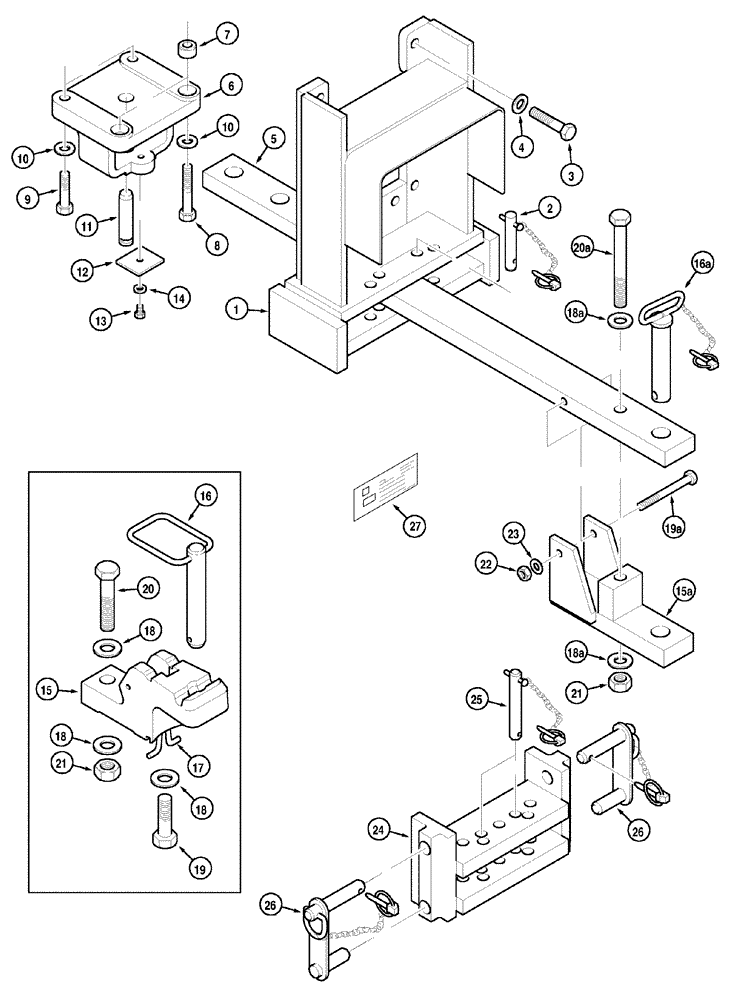

Схема запчастей Case IH MX170 - (09-69) - DRAWBAR HAMMERSTRAP (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
14
18
13
25
21
15
7
8
5
17
4
20
18
6
23
3
21
1
18
9
16
11
26
19
10
12
24
2
22
10
26
27

Артикул

Название

Примечание

Количество

Europe Only

1шт.

Without Trailer Hitch

1шт.

1

300885A1

HITCH BRACKET

1шт.

2

139129A2

HITCH PIN,19mm OD x 136mm L

2шт.

3

828-16170

BOLT,Hex, M16 x 2 x 170mm, Cl 10.9

M16 x 170; 10.9

8шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

5

242408A3

DRAWBAR, SWINGING

Serial No. - JJE0982119

1шт.

5

341025A1

DRAWBAR, SWINGING

Serial No. JJE0982120 -

1шт.

6

232755A2

HITCH BRACKET

1шт.

7

1331722C1

LARGE PIN

PIN, LARGE

2шт.

8

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

9

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

2шт.

10

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

11

1982103C1

PIN,34.87mm OD x 140mm L

1шт.

12

67828C1

RETAINER

1шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

14

892-11012

LOCK WASHER,M12

1шт.

15

275055A2

TOW HOOK

Serial No. - JJE0982119

1шт.

15b

341026A1

DRAWBAR

Serial No. JJE0982120 -

1шт.

16

275056A2

HITCH PIN

Serial No. - JJE0982119

1шт.

16b

1974215C3

HITCH PIN,40mm OD x 185mm L

Serial No. - JJE0982119

1шт.

17

232617A1

LATCH

Serial No. - JJE0982119

1шт.

18

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

3шт.

18b

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

3шт.

19

828-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

M20 x 100; 10.9

1шт.

19b

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

1шт.

20

828-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

M20 x 120; 10.9

1шт.

20b

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

M20 x 190; 10.9

1шт.

21

829-1420

NUT,M20, Cl 10

1шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

Used With Trailer Hitch

1шт.

131228A2

SUPPORT ASSY.

335 mm, Consists Of 24 - 26

1шт.

301860A1

SUPPORT ASSY.

310 mm, Consists Of 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

Support

1шт.

25

139129A2

HITCH PIN,19mm OD x 136mm L

2шт.

26

175735A1

HITCH PIN

2шт.

27

395874A1

DECAL

1шт.
