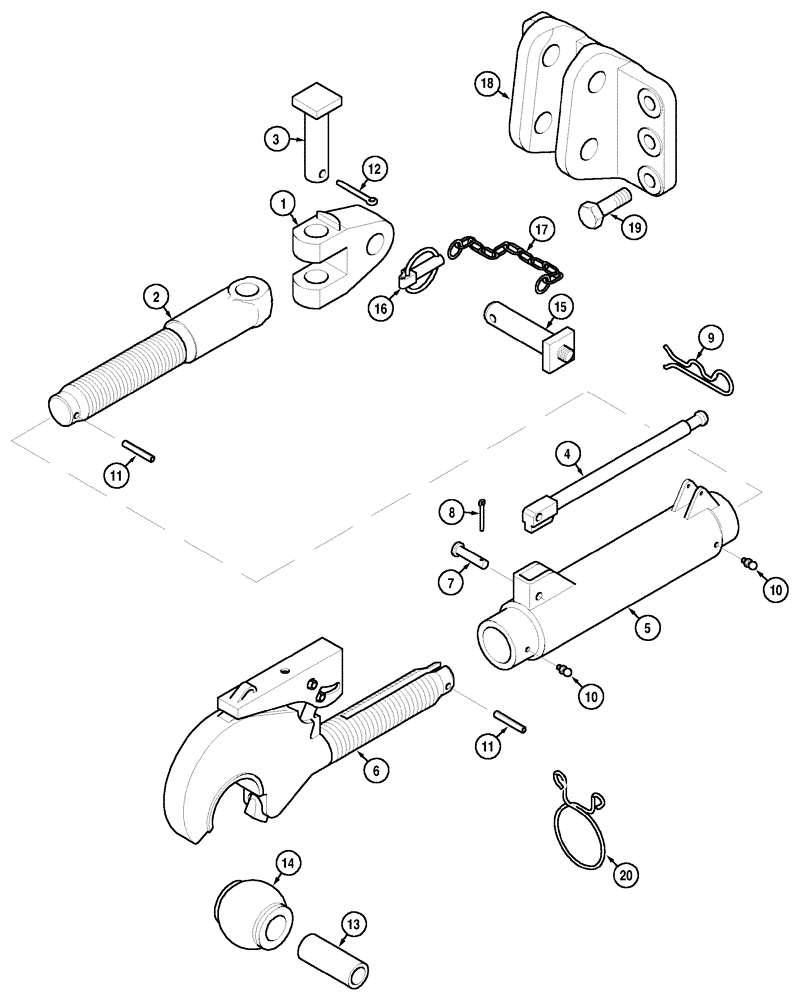

Запчасти Case IH MX170 (09-55) - HITCH TOP LINK WITH CLAW END, C.B.M. (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

Europe Only

1шт.

238026A2

UPPER LINK

Consists Of 1 - 12

1шт.

1

236625A1

TRAILER HITCH

1шт.

2

236624A1

ROD,1-1/2" - 6

1шт.

3

236626A1

CLEVIS PIN

1шт.

4

1331863C2

HANDLE

1шт.

5

1954221C3

LINK,1-1/2" - 6

1шт.

6

238027A1

DRAW HOOK

1шт.

7

427-6200

CLEVIS PIN,3/8" x 2", HDN

1шт.

8

432-612

COTTER PIN,3/32" x 3/4"

1шт.

9

1978738C1

HAIR PIN COTTER

3/16"

1шт.

10

219-14

LUBE NIPPLE,1/4" NPTF

2шт.

11

838-3636

PIN,M6 x 36, Coiled

6 x 26 mm

2шт.

12

733-5050

COTTER PIN,M5 x 50

5 x 50 mm

1шт.

13

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

1шт.

14

359188A2

BALL JOINT

32 ID/60 OD

1шт.

15

179885A1

HITCH PIN

1шт.

16

179891A1

PIN,7.5mm OD

Includes 17

1шт.

17

1982154C2

CHAIN,Assembly, Lift Link

1шт.

18

230522A1

SUPPORT

Link

1шт.

19

828-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9

M20 x 65; 10.9

6шт.

20

315912A1

SPRING

1шт.
