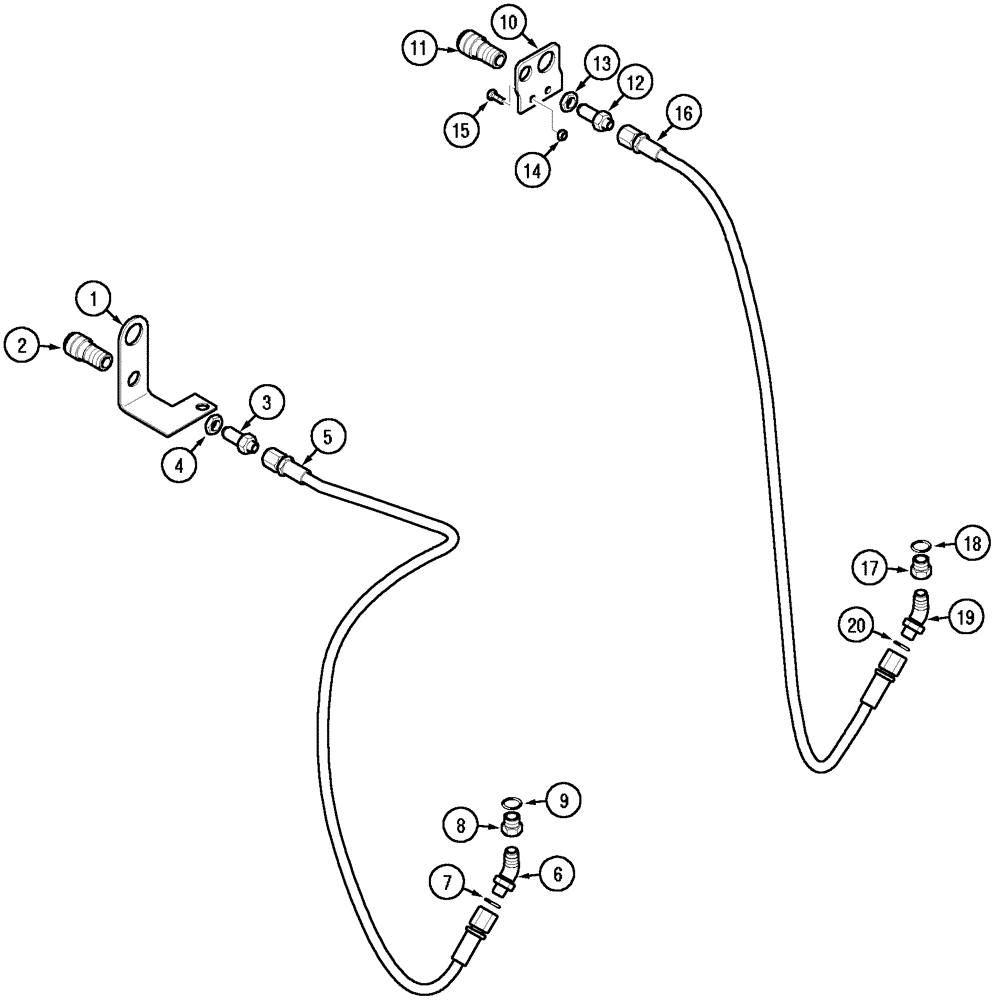

Запчасти Case IH MX170 (08-45) - HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

N.A. Only

1шт.

Hydraulic Motor

1шт.

Drain

1шт.

341823A1

FIELD ATTACHMENT

Consists Of 1 - 10,14,15

1шт.

With 2 Remote Valves Only

1шт.

1

357943A2

SUPPORT

1шт.

2

187563C1

COUPLING, QUICK, FEM

1шт.

3

357886A1

UNION

1шт.

4

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

5

91163C1

HYDRAULIC HOSE,9.65mm ID x 1193.8mm L, SAE 100R1

1шт.

6

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 7

1шт.

8

218-5367

HYD CONNECTOR

Includes 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

With 3 Remote Valves Only

1шт.

10

357944A1

SUPPORT

1шт.

11

187563C1

COUPLING, QUICK, FEM

1шт.

12

357886A1

UNION

1шт.

13

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

14

825-1408

NUT,M8, Cl 8

2шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

91163C1

HYDRAULIC HOSE,9.65mm ID x 1193.8mm L, SAE 100R1

1шт.

17

218-5367

HYD CONNECTOR

Includes 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 20

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
