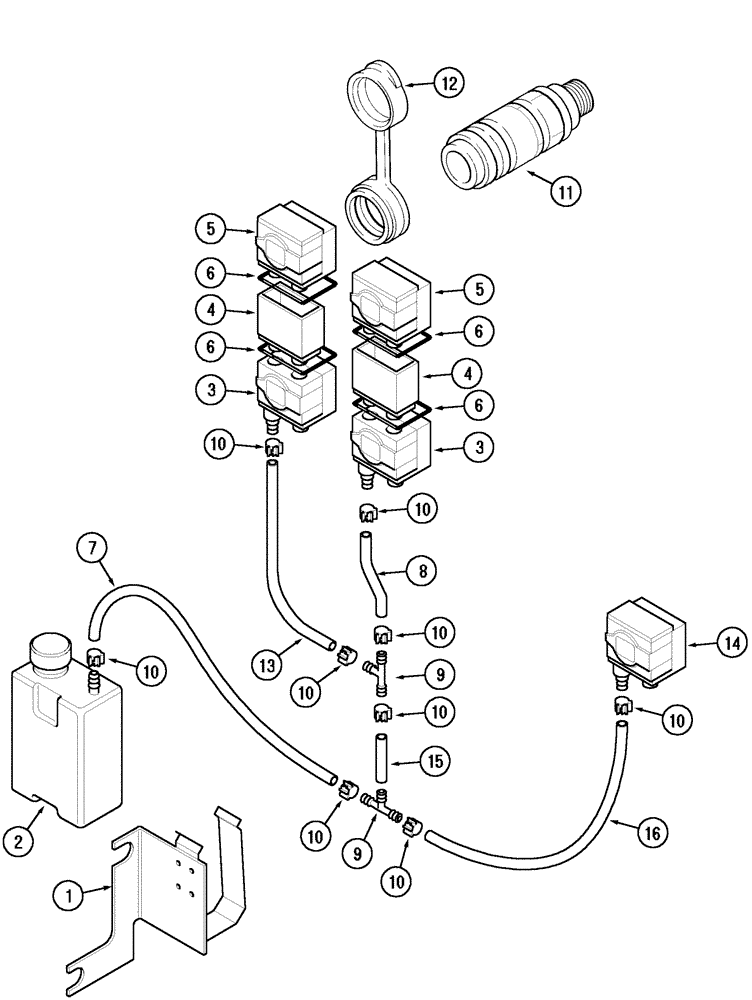

Запчасти Case IH MX170 (08-41) - HYDRAULIC COUPLINGS AND COLLECTORS (35) - HYDRAULIC SYSTEMS

With 3 Remote Valves Only

1шт.

Single Acting

1шт.

1

345002A1

SUPPORT

1шт.

2

242278A1

BOTTLE,0.6L

1шт.

3

243171A2

TRAP

2шт.

4

307550A1

TANK

2шт.

5

243174A2

TRAP

Includes 6

2шт.

6

284575A1

O-RING

1шт.

7

280284A1

HOSE

460 mm, Cut From 364357C2

1шт.

8

280285A1

HOSE

170 mm, Cut From 364357C2

1шт.

9

248632A1

TEE,3/8" Hose Barb x 3/8" Hose Barb x 3/8" Hose Barb

2шт.

10

1348264C1

HOSE CLAMP

3/8 ID

10шт.

11

313572A1

COUPLING, BREAK AWAY

Europe Only

1шт.

11

370508A1

COUPLING, BREAK AWAY

Europe Only, Optional

1шт.

11

257481A2

COUPLING

N.A. Only

1шт.

12

T104539

DUST CAP

Europe Only

1шт.

12

1954146C1

CAP

N.A. Only

1шт.

13

315220A1

HOSE

225 mm, Cut From 364357C2

1шт.

14

302470A1

TRAP

1шт.

15

302468A1

HOSE,9.5 mm ID x 85.00 mm, 30R6/ SAE J30 R7

85 mm, Cut From 364357C2

1шт.

16

315217A1

HOSE

500 mm, Cut From 364357C2

1шт.
