Запчасти Case IH MX170 (08-32) - REMOTE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

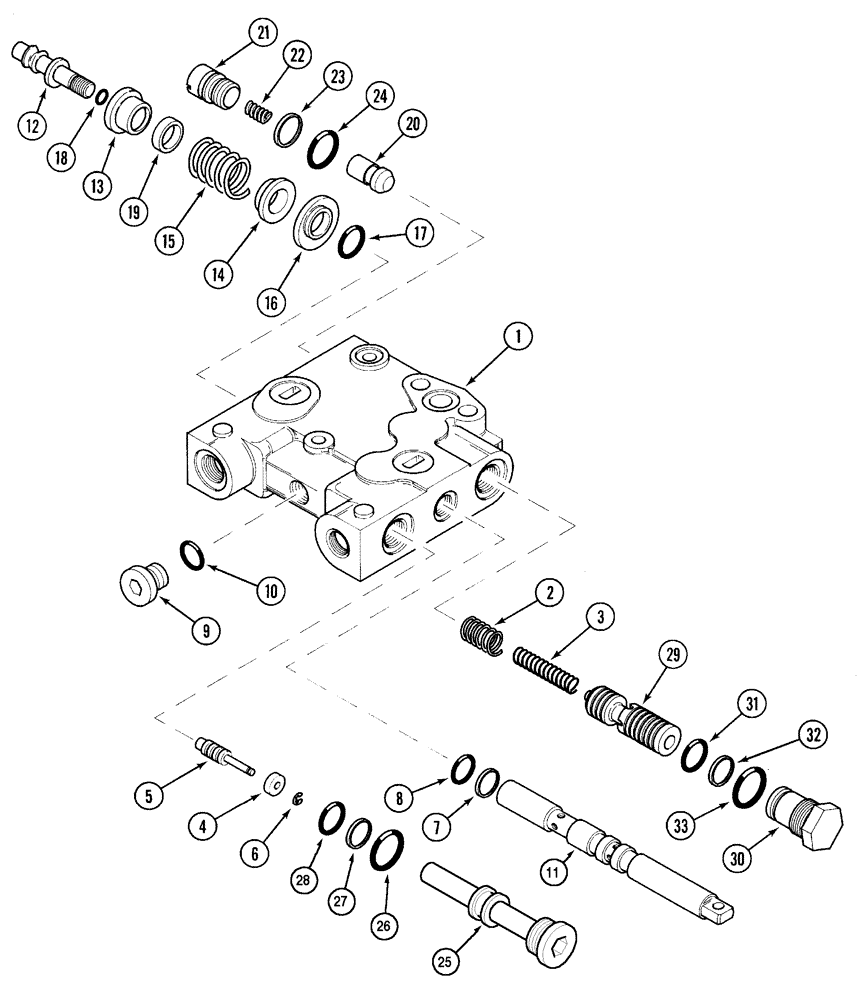

Схема запчастей Case IH MX170 - (08-32) - REMOTE CONTROL VALVE (35) - HYDRAULIC SYSTEMS
18
17
32
6
8
24
4
25
2
30
20
14
11
7
3
5
12
9
19
28
10
33
15
29
13
16
22
27
21
1
23
31
26

Артикул

Название

Примечание

Количество

185459A2

VALVE, CONTROL

Single Acting, Consists Of 1 - 75

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

1340921C1

SPRING

1шт.

3

185447A1

SPRING

1шт.

4

1957861C1

WASHER

1шт.

5

1957862C1

PISTON

1шт.

6

1957859C1

SNAP RING

1шт.

7

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

1шт.

8

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

9

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes 10

1шт.

10

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Spool

1шт.

12

307208A1

STUD

1шт.

13

G108913

SPRING CUP

1шт.

14

G108914

SPRING CUP

1шт.

15

G108915

SPRING

1шт.

16

G108630

HOLDER

1шт.

17

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

18

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

19

1980085C1

SPACER

1шт.

1542563C1

KIT

Consists Of 20 - 24

1шт.

20

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

21

NSS

NOT SOLD SEPARAT

Body

1шт.

22

1994581C1

SPRING,6.1mm OD x 31.1mm L

1шт.

23

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

24

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

1971475C1

PLUG

Without Check Valve, Consists Of 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

Plug

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

G110287

BACK-UP RING

1шт.

28

G110295

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

29

G110089

SPOOL

1шт.

30

G110214

PLUG

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

32

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

186440A2

SLIDE VALVE

Consists Of 34 - 58

1шт.

34

186439A1

COVER ASSY

1шт.

35

G108911

WASHER

1шт.

36

G108912

WASHER

1шт.

Выбрано товаров: 40
