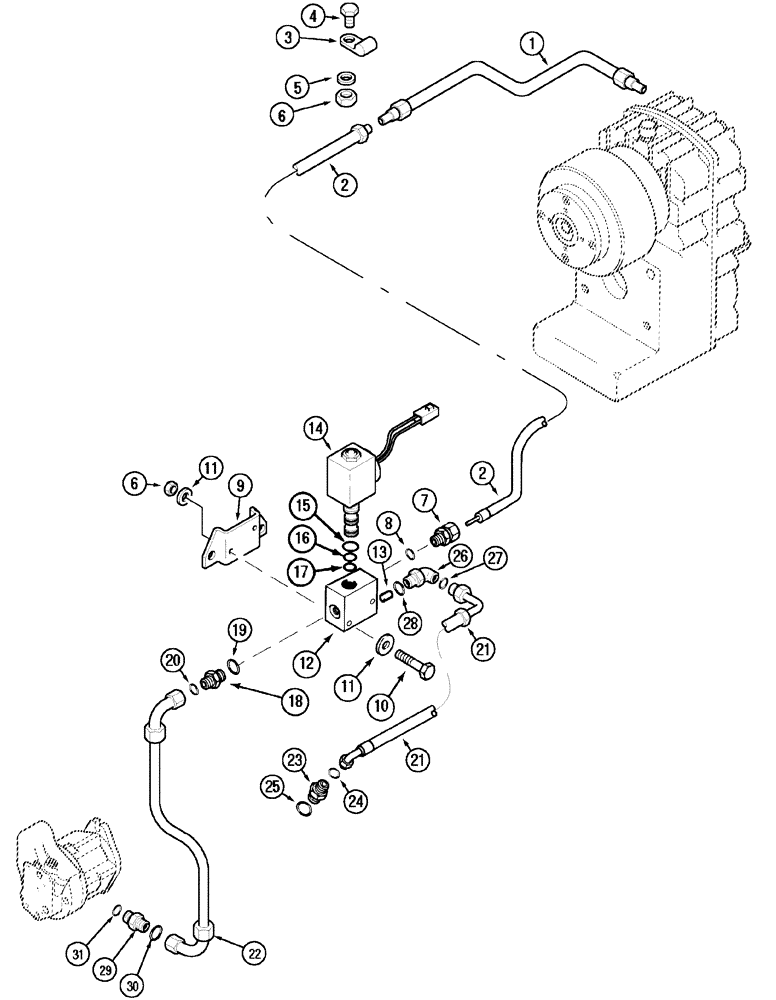

Запчасти Case IH MX170 (08-26) - HYDRAULIC PIPING - FRONT P.T.O. (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
Europe Only
1шт.
1
231524A1
PIPE,6 mm OD
Clutch, Supply
1шт.
2
244107A1
HOSE
Supply
1шт.
3
515-2148
CLAMP,3/16", Insul, 1/4" Bolt
1шт.
4
614-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
1шт.
5
892-11006
LOCK WASHER,M6
1шт.
6
829-1306
NUT,M6, Cl 10
3шт.
7
1533078C1
UNION
1шт.
8
934005R1
SEALING RING,12mm ID x 18mm OD x 1.5mm Thk
1шт.
9
243158A1
SUPPORT
1шт.
10
814-6050
BOLT,Hex, M6 x 1 x 50mm, Cl 8.8
2шт.
11
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4шт.
12
1534318C2
VALVE
Includes 13,14
1шт.
13
1530702C1
SET SCREW
Orifice
1шт.
14
118872A1
VALVE
Includes 15 - 17
1шт.
15
238-6010
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
1шт.
16
238-5015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
1шт.
18
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl 19, 20
1шт.
20
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
21
275259A2
HOSE
1000 mm
1шт.
21
244113A2
HOSE,10.00 mm ID x 930.00 mm, SAE 100R3 Class 5
1шт.
22
244122A2
HOSE,10.00 mm ID x 491.00 mm, ISO 12151
Valve
1шт.
23
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 24, 25
1шт.
24
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
25
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
26
201-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Includes 27,28
1шт.
27
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
29
700-106
HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. 30,31
1шт.
30
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
31
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
895-11016
WASHER,17.5mm ID x 30mm OD x 3mm Thk
Not Illustrated
1шт.
19
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
28
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 34
