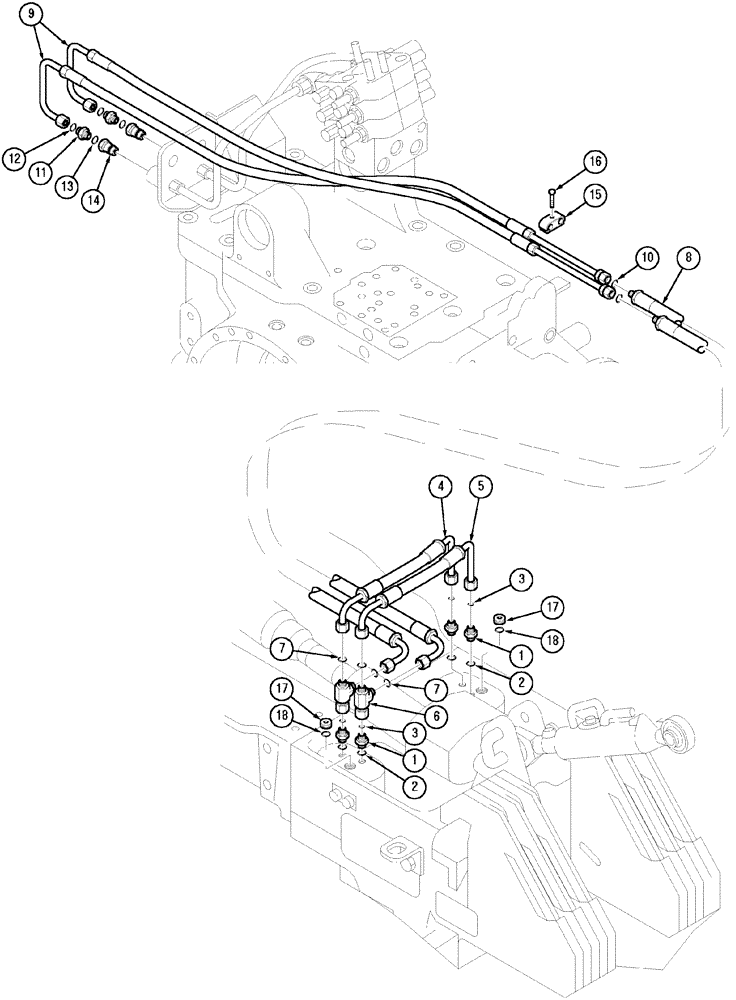

Запчасти Case IH MX170 (08-25) - HYDRAULIC PIPING FRONT HITCH (35) - HYDRAULIC SYSTEMS

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2,3

4шт.

2

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

234064A1

HOSE

1шт.

5

251094A1

HOSE ASSY.

1шт.

6

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 7

2шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

8

234406A1

HOSE,12.70 mm ID x 3180.00 mm

Supply and Return

2шт.

9

313477A1

HOSE

Rear

2шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 12,13

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

1272399C2

QUICK MALE COUPLING

7/8 NF

2шт.

15

258490A2

SHIN

1шт.

16

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

17

221578A1

PLUG,M18 x 1.5 ORB

Includes 18

2шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
