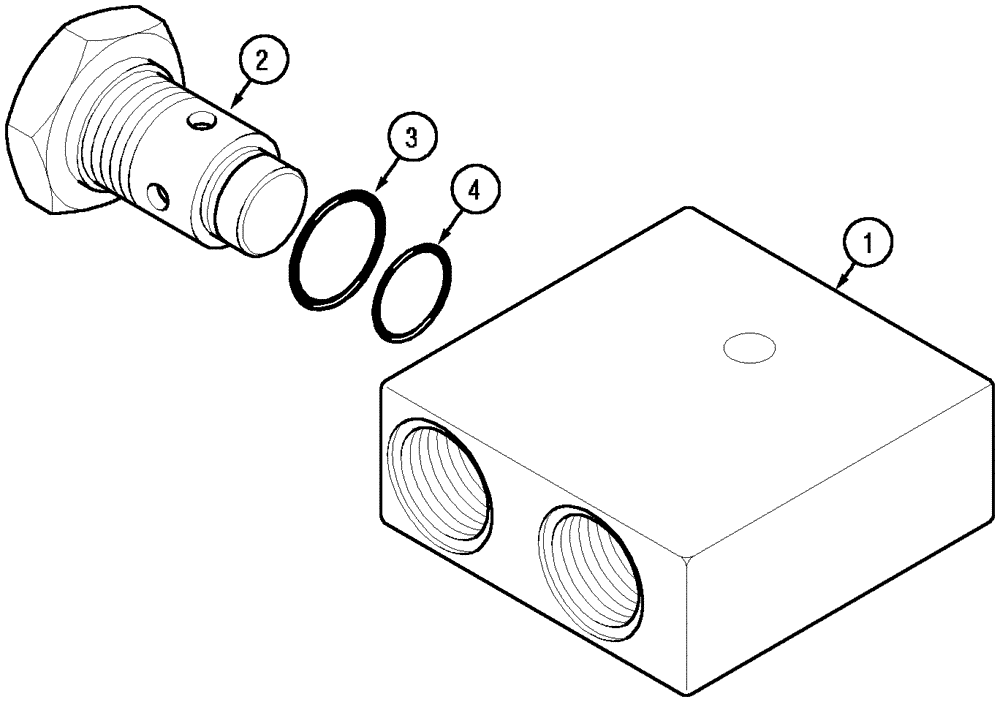

Запчасти Case IH MX170 (08-14) - BYPASS VALVE (35) - HYDRAULIC SYSTEMS

297462A2

VALVE, CHECK

Cooler By-Pass - Oil Cooler, Consists Of 1,2

1шт.

1

297460A2

BLOCK ASSY.

1шт.

2

326816A1

VALVE,7/16" - 14

Includes 3,4

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Includes 4

1шт.

4

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

149942C1

SEAL KIT

Not Illustrated, Use With 326816A1

1шт.
