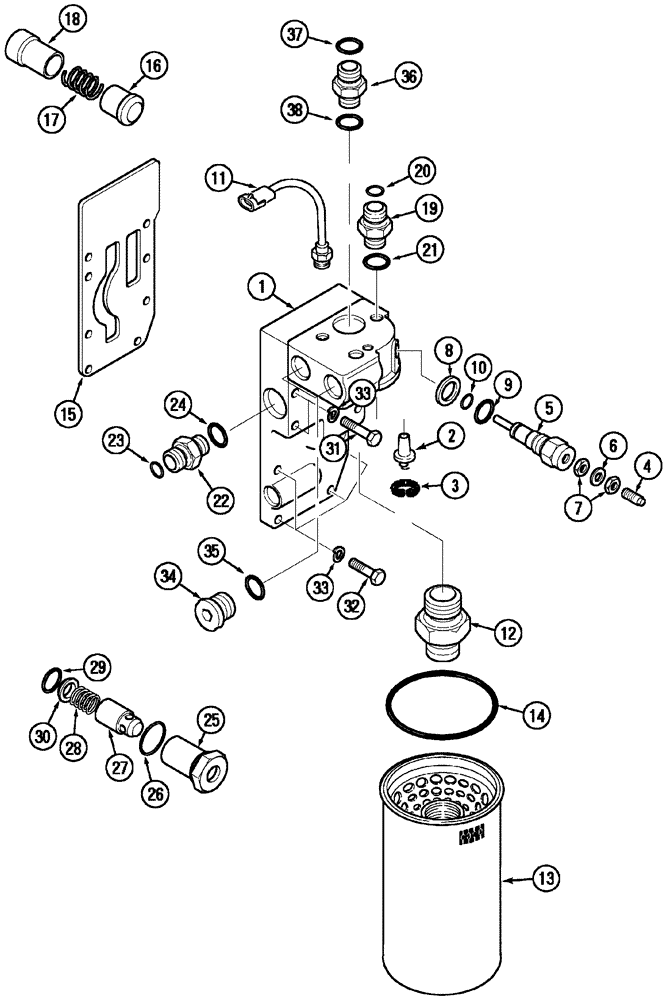

Запчасти Case IH MX170 (08-10) - HYDRAULIC OIL FILTER (35) - HYDRAULIC SYSTEMS

1

240995A2

BODY

1шт.

1

330169A1

BODY

1шт.

2

1957807C1

VALVE, CHECK

1шт.

3

A177482

SNAP RING

1шт.

4

N13268

PRESSURE SWITCH

Consists Of 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

6

NSS

NOT SOLD SEPARAT

Washer

1шт.

7

129-667

NUT,#10-32, LH

2шт.

8

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

11

258425A1

SWITCH

1шт.

11

243803A2

TEMPERATURE SENDER,1/2" - 14

Temperature

1шт.

12

A176321

CONNECTOR, ELEC

CONNECTOR

2шт.

13

177356A1

HYDRAULIC OIL FILTER

Includes 14

1шт.

14

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

1шт.

15

248291A1

GASKET

1шт.

16

1340805C1

PISTON

1шт.

17

1340953C1

SPRING

1шт.

18

1340806C1

CASE

1шт.

19

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 20,21

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

22

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 23, 24

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

107451A2

VALVE

Consists Of 25 - 30

1шт.

25

NSS

NOT SOLD SEPARAT

19,3 ID x 2,2 mm, Body

1шт.

26

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

27

107453A1

PLUNGER

1шт.

28

107454A2

SPRING

1шт.

29

107452A1

CIRCLIP

1шт.

30

107456A1

CUP WASHER

1шт.

31

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

4шт.

32

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

33

892-11010

LOCK WASHER,M10

8шт.

34

221528A1

PLUG,Hex Soc, M42 x 2, ORB

Includes 35

2шт.

35

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

36

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes 37,38

1шт.

37

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

38

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.
