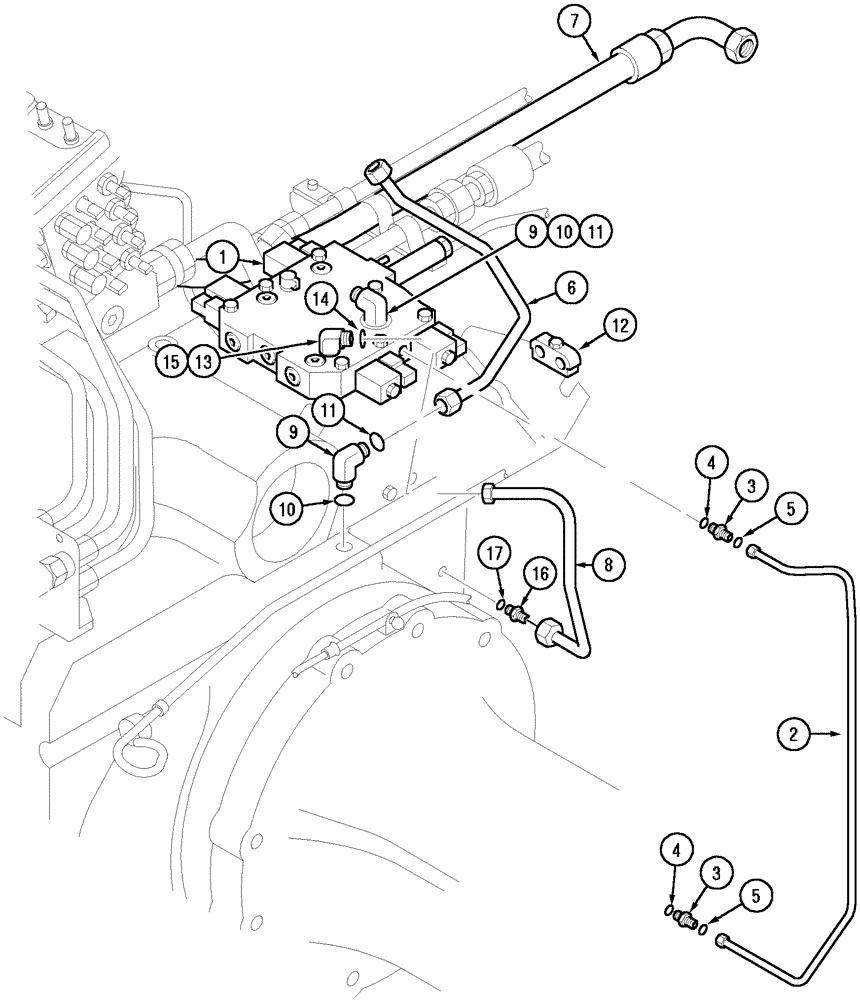

Запчасти Case IH MX170 (08-06) - HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

Version Without Hitch

1шт.

1

REF

INSTRUCTION

Valve, Control, Shuttle, See Page 06-20

1шт.

2

303251A1

HYD TUBE

4WD, Supply

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 4, 5

2шт.

4

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

298997A1

PIPE

Right Brake

1шт.

7

297854A1

HOSE,25.4mm ID x 934mm L

Auxiliary, Supply

1шт.

8

257492A2

PIPE

Diff Lock

1шт.

9

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 10, 11

1шт.

9

336963A1

ELBOW

With Screen, Consists Of 9A - 11

1шт.

9b

NSS

NOT SOLD SEPARAT

Elbow

1шт.

9c

1980065C3

SCREEN

1шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

256553A1

CLAMP

1шт.

13

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 14, 15

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

16

701-120

UNION,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
